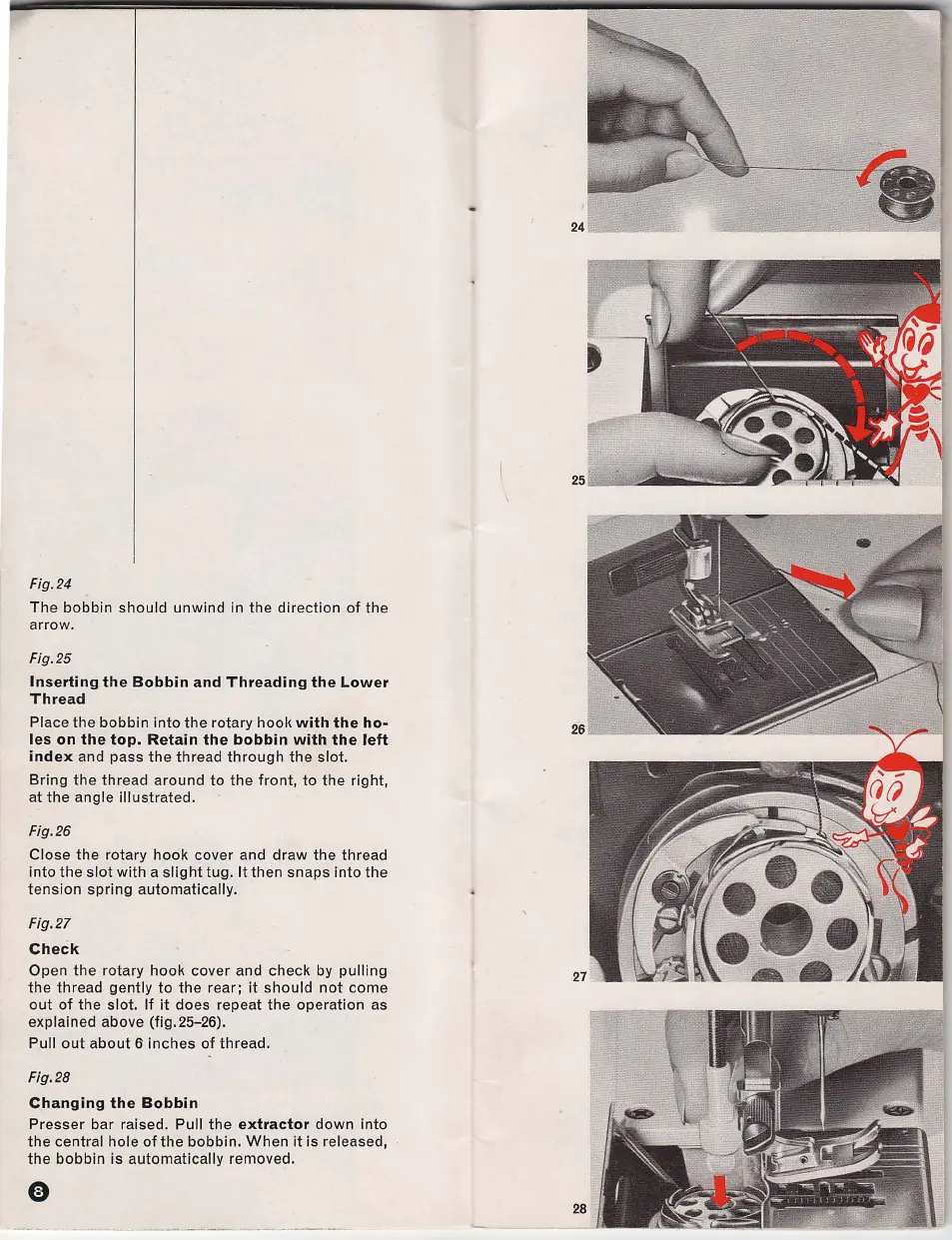

Fig.24
The bobbin should unwind in the direction of the
arrow.
Fig.25
Inserting the Bobbin and Threading the Lower
Thread
Place the bobbin into the rotary hook with the ho-
les on the top. Retain the bobbin with the left
index and pass the thread through the slot.
Bring the thread around to the front, to the right,
at
the angle illustrated.
Fig.26
Close the rotary hook cover and draw the thread
into the slot with a slight tug. It then snaps into the
tension spring automatically.
Fig.27
Check
Open the rotary hook cover and check by pulling
the thread gently to the rear; it should not come
out of the slot. If it does repeat the operation as
explained above (fig. 25-26).
Pull out about 6 inches of thread.
Fig.28
Changing the Bobbin
Presser bar raised. Pull the extractor down into
the central hole of the bobbin. When it is released,
the bobbin is automatically removed.
