ELNA Cl.11 User Manual

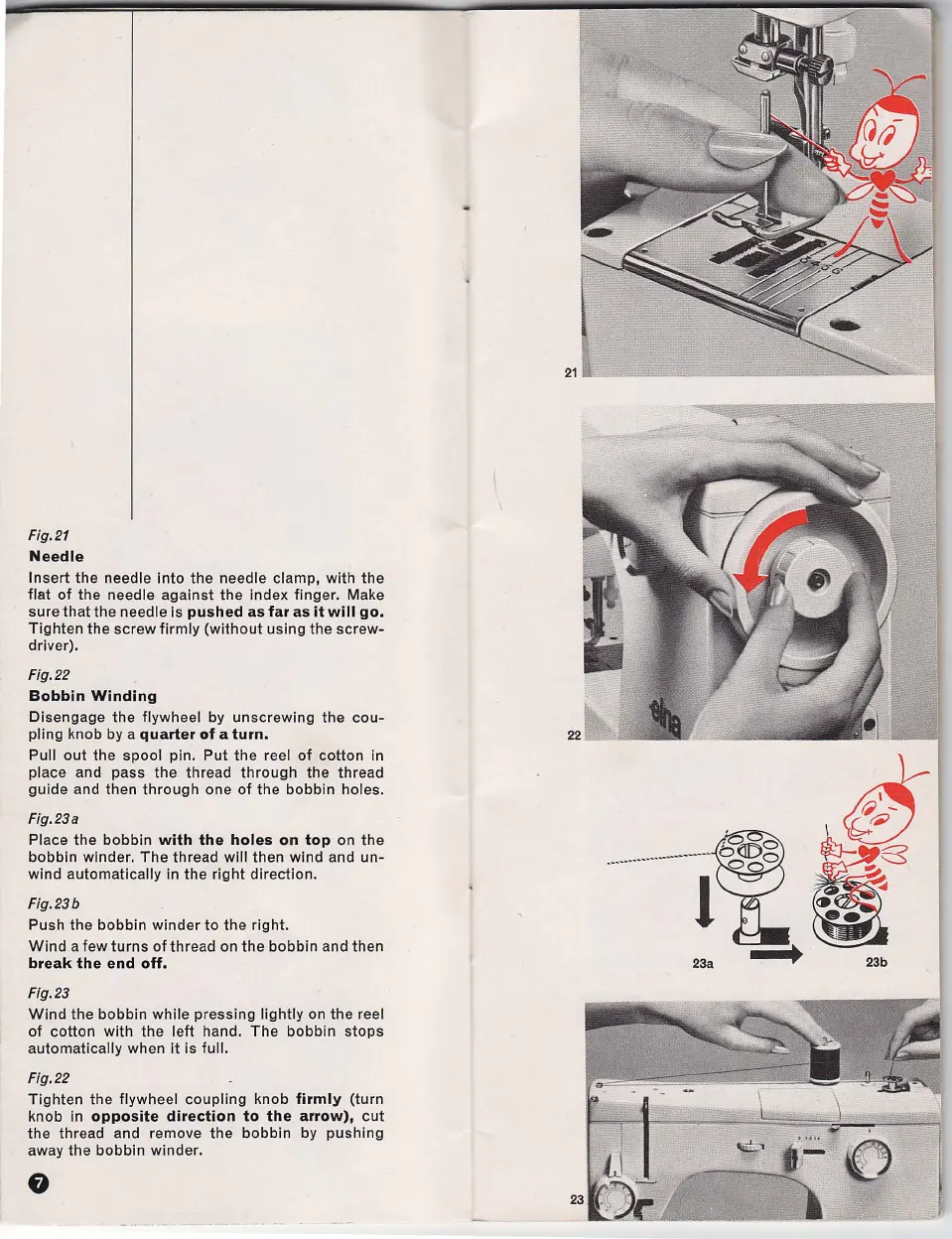

Fig.21
Needle
Insert the needle into the needle clamp, with the
flat of the needle against the index finger. Make
sure
that the needle is pushed as far as it will go.
Tighten the sc rew firmly (without using the screw-
driver).
Fig.22
Bobbin Winding
Disengage the flywheel by unscr e wing the cou-
pling knob by a quarter of a turn.
Pull out the spool pin. Put the reel of cotton in
place and pass the thread through the thread
guide and then through one of the bobbin holes.
Fig.23a
Place the bobbin with the holes on top on the
bobbin winder. The thread will then wind and un-
wind automatically in
the right direction.
Fig.23b
Push the bobbin winder to the right.
Wind a few turns of thread on the bobbin and then
break the end off.
Fig.23
Wind the bobbin while pressing lightly on the reel
of cotton with the left hand. The bobbin stops
automatically when it is full.
Fig.22
Tighten the flywheel coupling knob firmly (turn
knob in
opposite direction to the arrow), cut
the thread and remove the bobbin by pushing
away the bobbin winder.

ELNA Cl.11 Specifications

General

Brand	ELNA
Model	Cl.11
Category	Sewing Machine
Language	English
