ELNA eXperience 520 - SERVICE ACCESS (5) REAR COVER; Rear Cover Removal; Rear Cover Installation

8
MODEL 520
SERVICE ACCESS (5)
REAR COVER
TO REMOVE:
1. Remove the front cover (see pages 6 and 7).
2. Loosen the setscrews (A), (B), (C), (D) and (E).
* To remove the cover, detach the presser foot lifter section first, with the presser foot lifter in
the down position.
TO INSTALL:
3. Follow the above procedure in reverse.

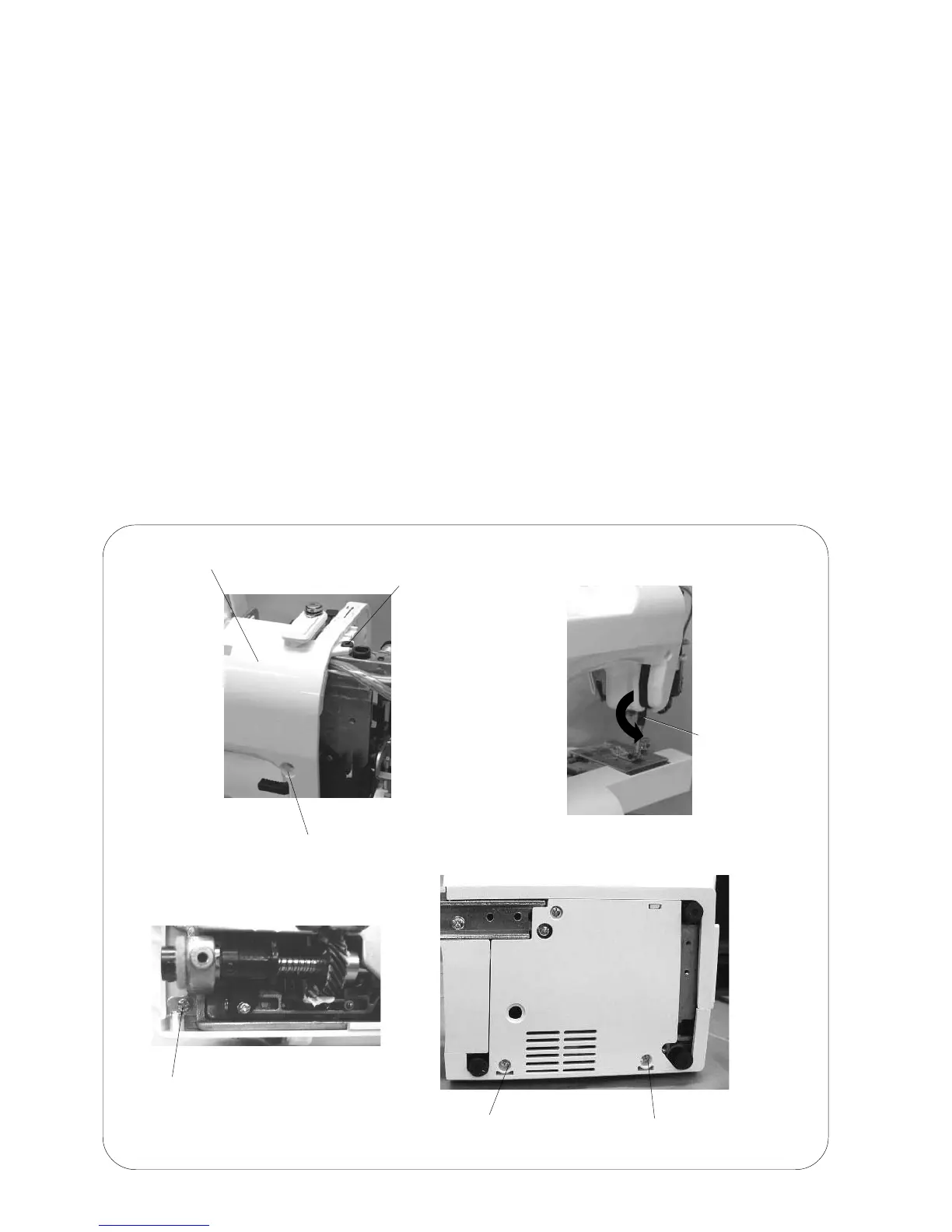

Setscrew (A)
Setscrew (B)
Setscrew (C)
Presser foot lifter
Rea cover
Setscrew (D)
Setscrew (E)
