ELNA eXperience 520 - SERVICE ACCESS (4) FRONT COVER REMOVAL; Remove Hooks and Base Hook; Remove Feed Balancing Dial; Remove Machine Socket and Front Cover

7
MODEL 520
SERVICE ACCESS (4)
HOW TO REMOVE THE FRONT COVER

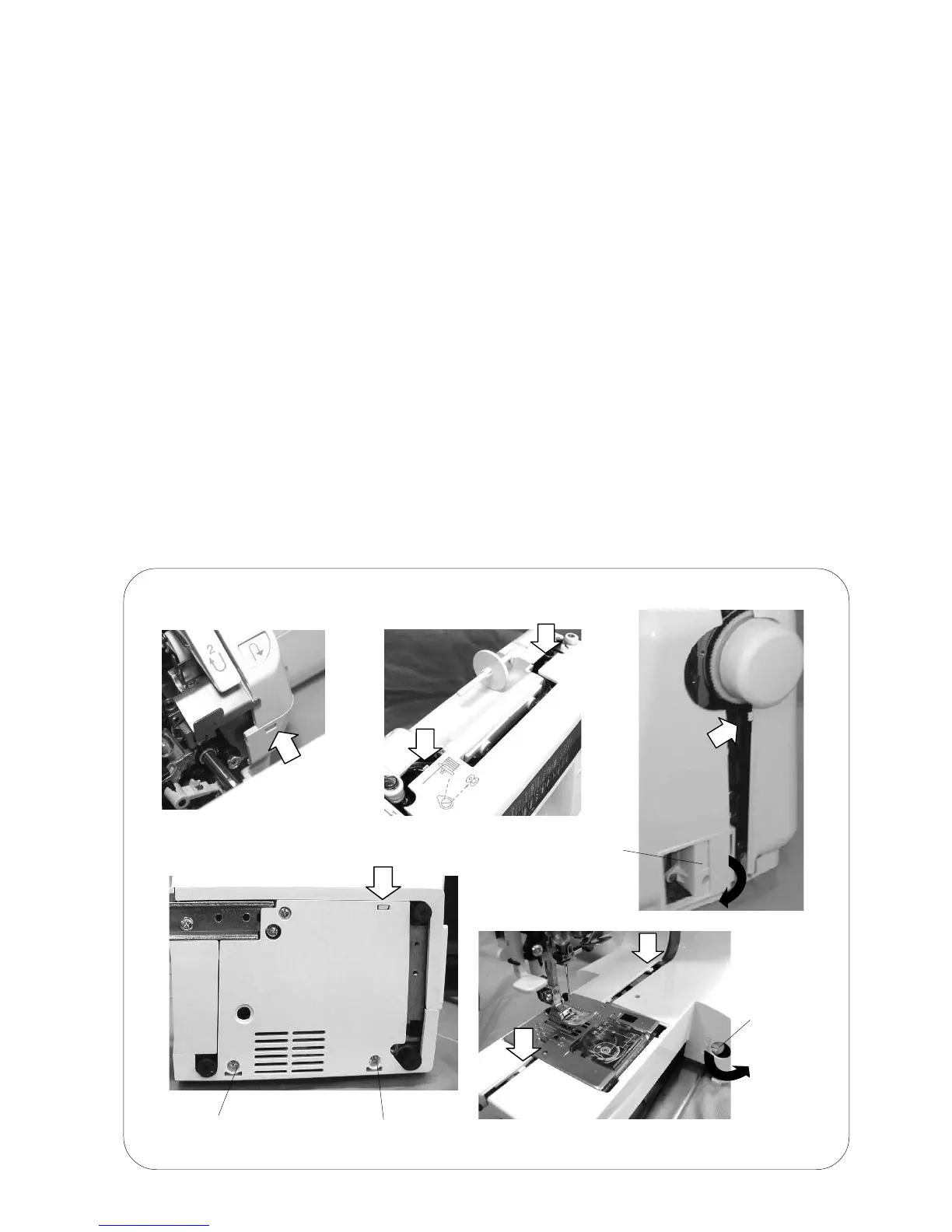

1. Remove the hooks on the front cover and the rear cover (indicated by the white arrows) and
the hook on the base.
2. Remove the feed balancing dial.
3. Remove the machine socket, and then remove the front cover.
* Remove the setscrews (G) and (H) from the rear cover to remove the machine socket easily,
Setscrew (G)
Setscrew (H)
Feed balancing
dial
Machine socket
