ELNA eXperience 520 - REPLACING THE TRANSFORMER; Transformer Replacement Procedure

31
MODEL 520

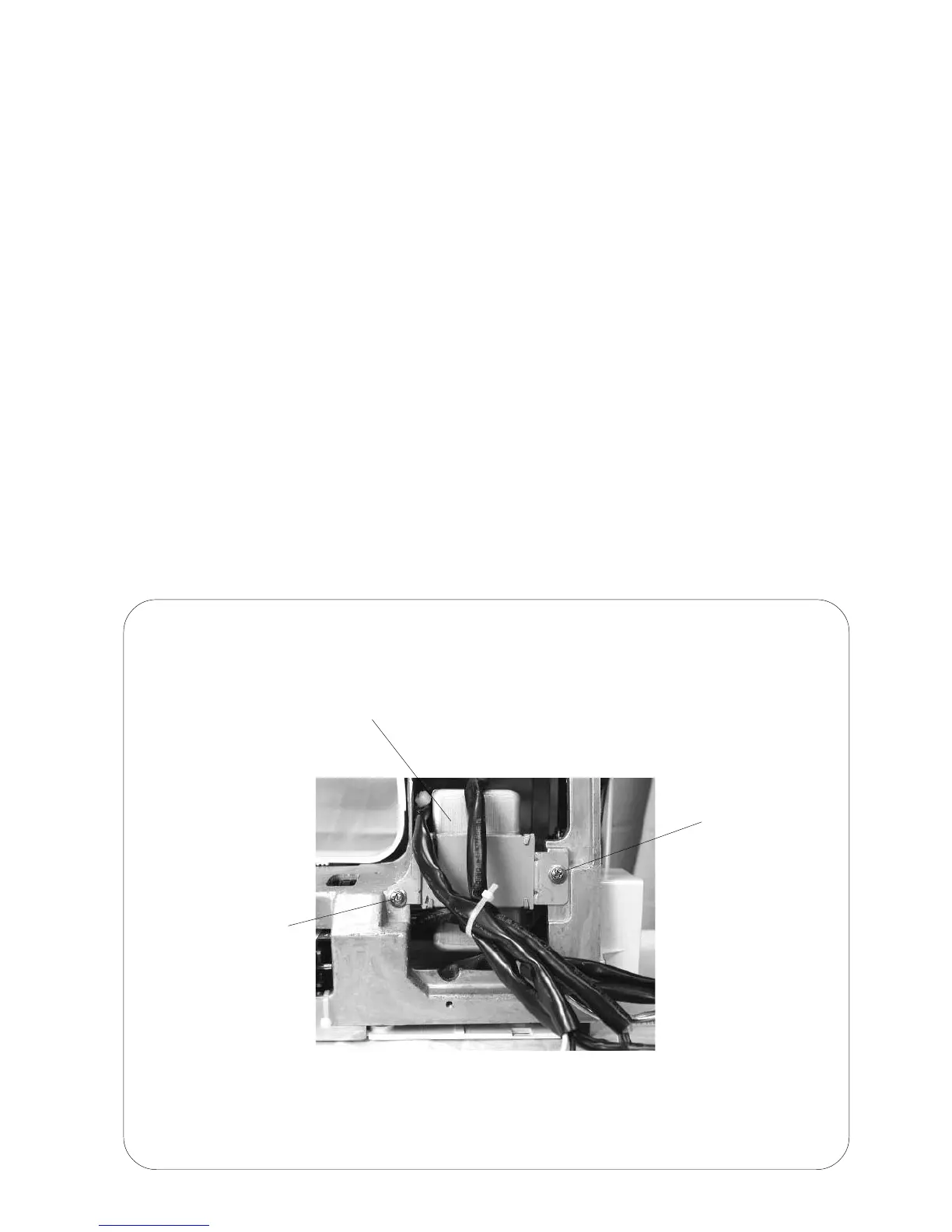

Transformer
Setscrew
REPLACING THE TRANSFORMER
REPLACING THE TRANSFORMER
TO REMOVE:
1. Remove the front cover (see page 6 and 7).
2. Remove the two setscrews and remove the transformer.
Cut off the binder.
TO INSTALL:
3. To install the transformer, follow the above procedure in reverse.
NOTES:
Place the rear end of the transformer on the transformer support.
Slide the two transformer wire tubes to the side of transformer and secure them to the zigzag
stepping motor wire so they will not come in contact with any moving parts.
Setscrew
