33
MODEL 520
REPLACING THE FEED STITCH MOTOR

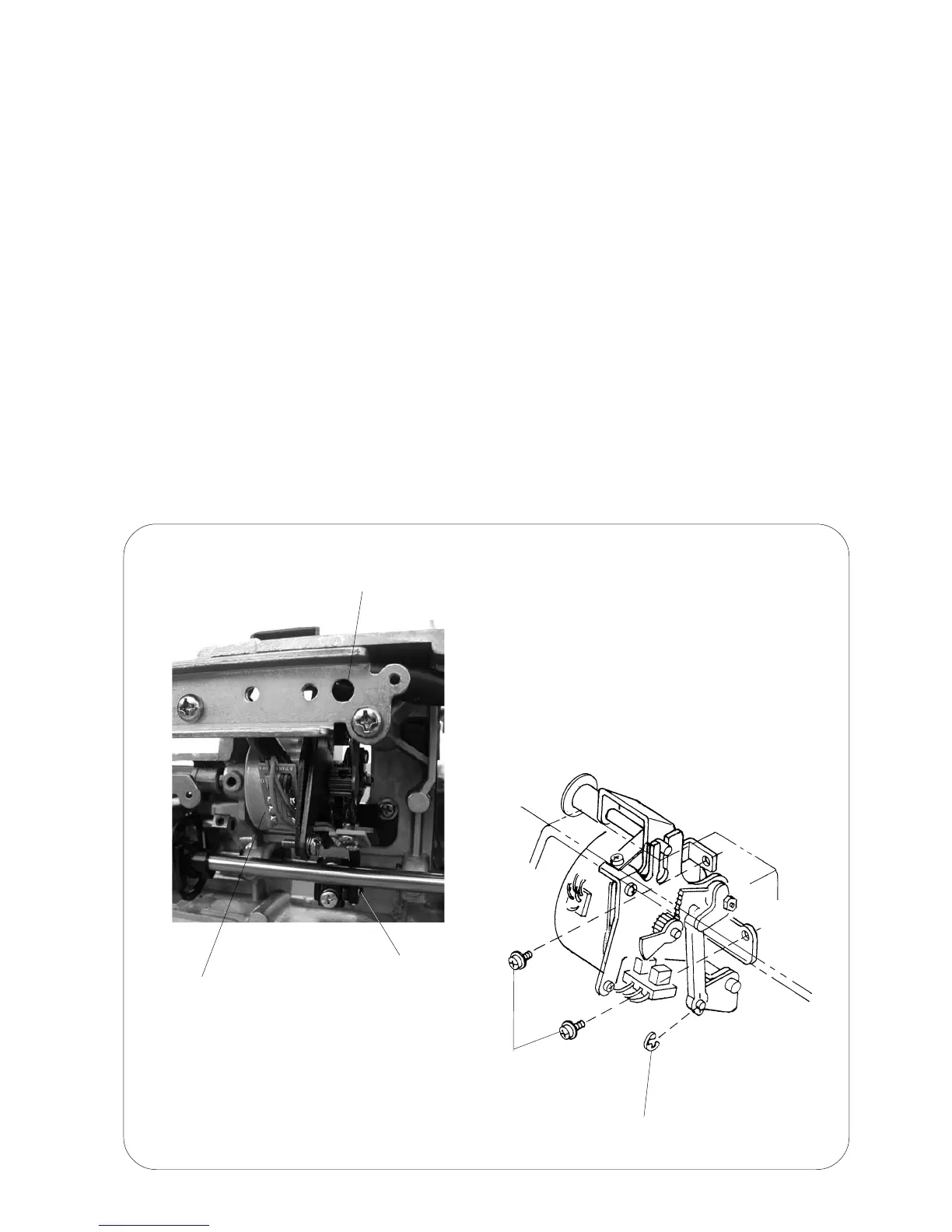

REPLACING THE FEED MOTOR
TO REMOVE:
1. Remove the front cover and rear covers (see page 6 and 8).
2. Remove the snap ring (E-3).
3. Remove the two setscrews and remove the feed motor.
TO INSTALL:
4. To install the feed motor, follow the above procedure in reverse.
NOTES:
Adjust the stretch stitch patterns (see page 18).
Snap ring (E-3)
Snap ring (E-3)
Feed motor
Setscrew
Access setscrew
through this hole
