User Manual – 2D Barcode Scanner (Zebra)
UM600xxx Draft, page 11 of 40

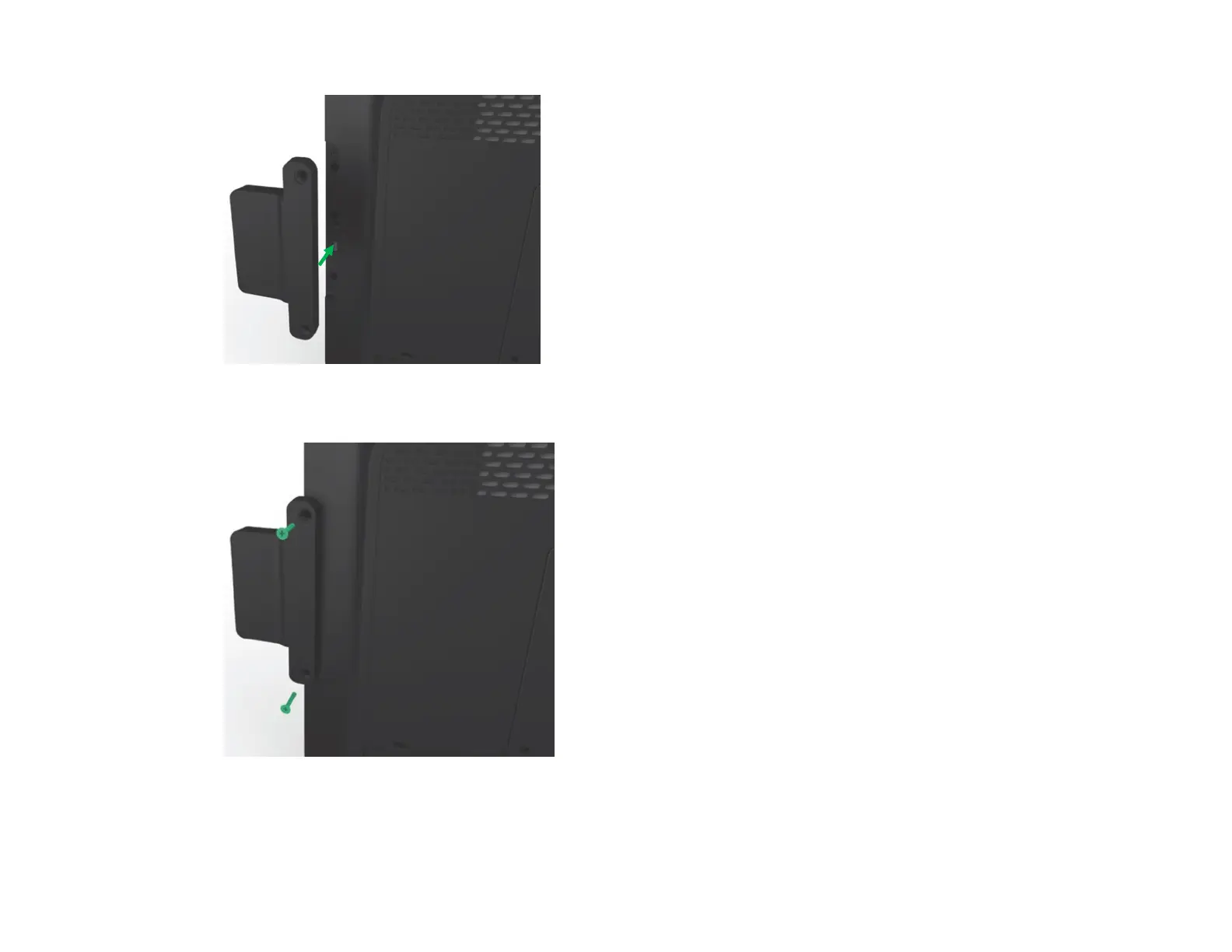

Step 3: Gently insert the fingerprint reader into the peripheral bay making sure the connector mates properly.
Step 4: Install the 2 flat head screws included with the kit.
Step 5: Cover the head screws with the adhesive mylar covers included from the kit.
