Elo Touch Solutions SE2707 - Imager Aiming Element Specifications

User Manual – 2D Barcode Scanner (Zebra)
UM600xxx Draft, page 7 of 40
Imager Aiming Element specifications

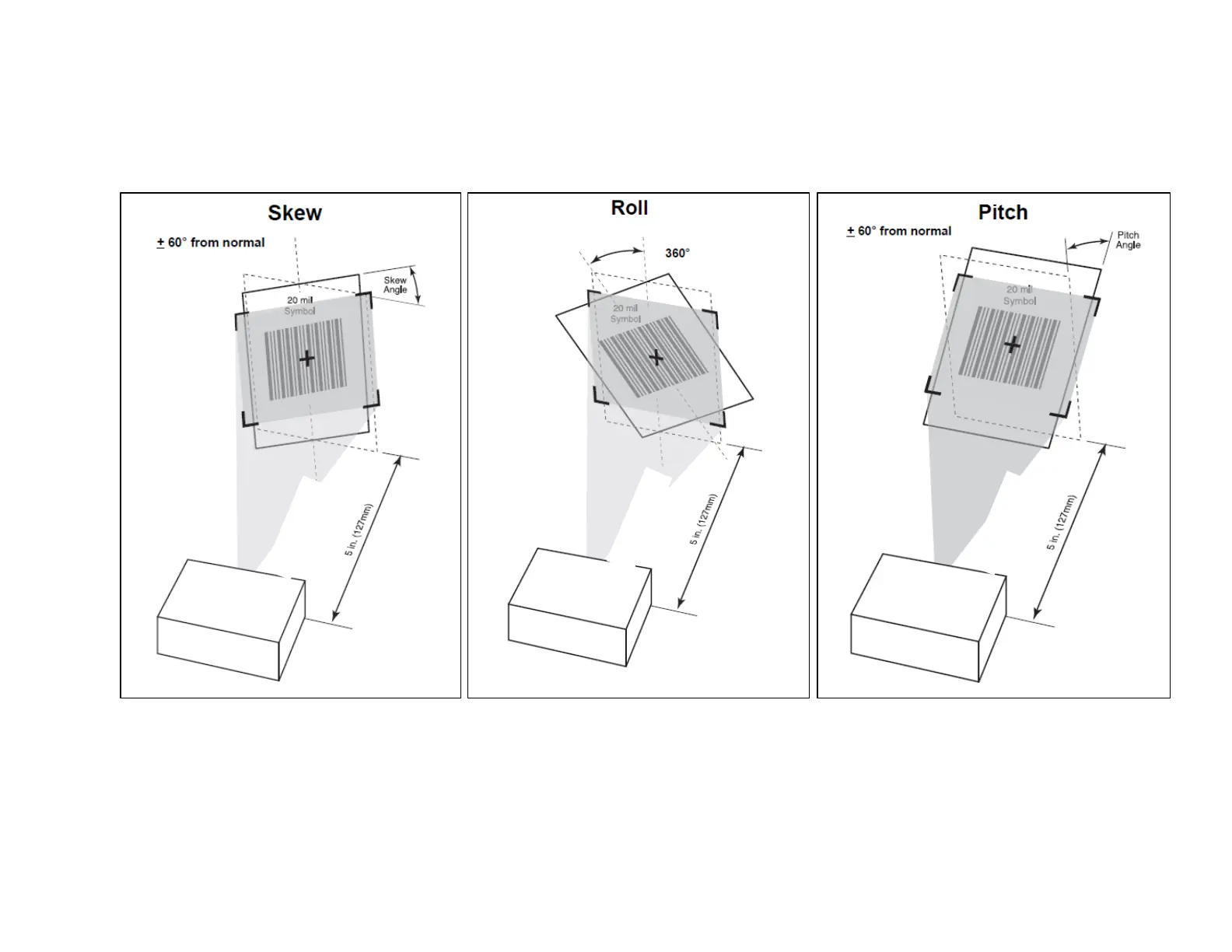

Skew, Roll, and Pitch
Measured on a 20 mil Code 39 symbol at distance of 5 inches. Tolerance for skew and pitch is reduced at
extreme ends of the working range.
5 in. (127mm)
5 in. (127mm)
5 in. (127mm)
