User Manual – 2D Barcode Scanner (Zebra)

UM600xxx Draft, page 10 of 40

Section 3: Installation

Attaching the 2D Barcode Reader

Note: The peripheral image below may appear different.

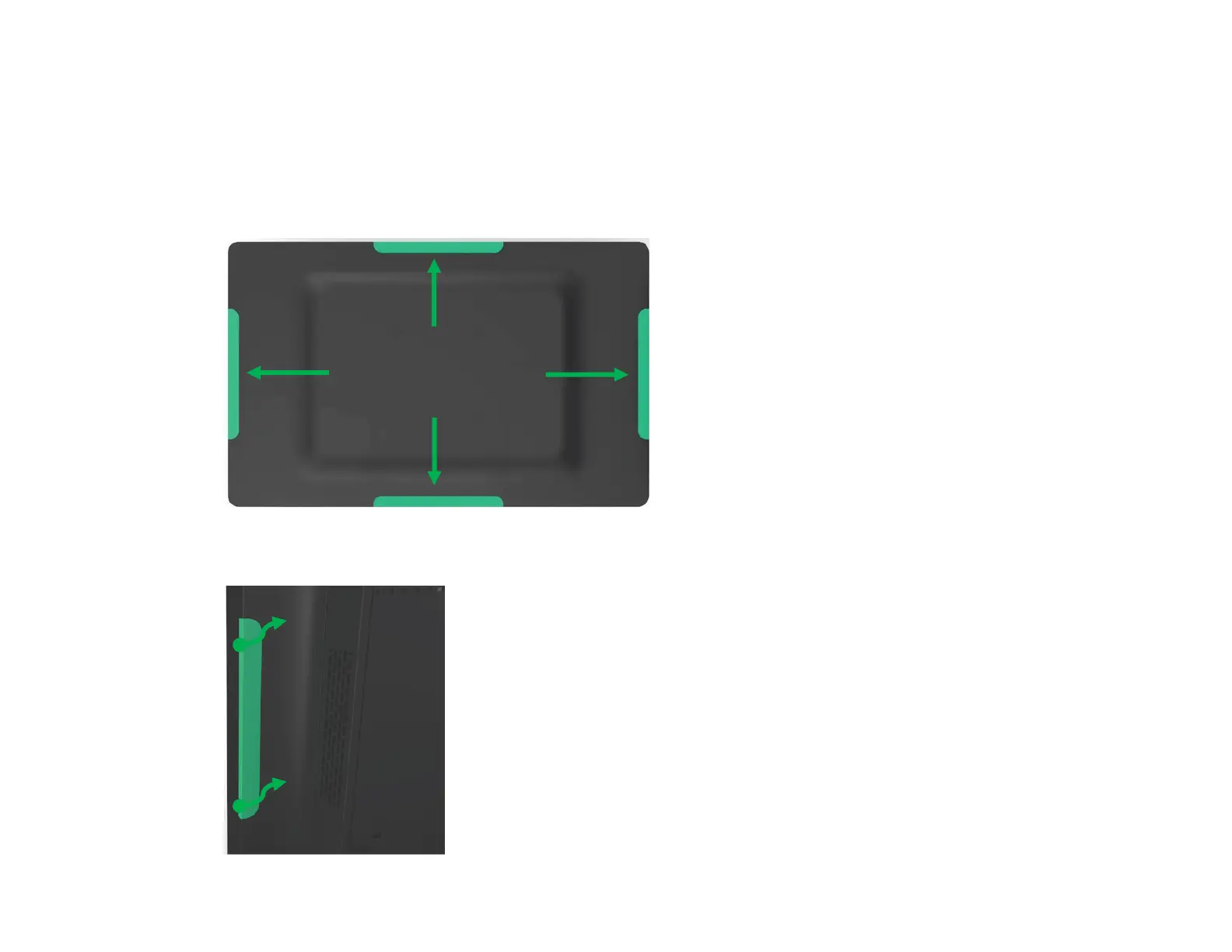

Step 1: Select the location to mount the 2D barcode reader. Some systems have more than one mounting option.

Step 2: Remove the selected peripheral cover from the touch monitor or computer.
