Steps to be taken before use
Submit the tool to visual inspection and make sure pump, presshead, forks and dieholders/dies are clean and free
from defects. Prior to start of pumping, carefully check proper location of the dieholders and dies in the fork.
IMPORTANT! Pumping must only be performed with tools assembled as per fi gures below.
Elpress’ hydraulic crimptools V1311/V1311C are precision tools purely designed to crimp Elpress’ terminals within
the following areas:
Cu-terminals 10 - 400 mm²
C-sleeves 10 - 120 mm²
Al-terminals 16 - 240 mm² (V1311C does not crimp Al)
For further details, please see our technical literature on connections.
WARNING!
These tools are not designed for so called ”L W W”, that is live wire work.
Make sure the net is dead before starting the crimping operation.
Technical data V1311 and V1311C
• crimp force 130 kN (13 ton)
• weight net V1311 4.9 kg
V1311C 6.7 kg
• length 590 mm
• head rotation 180°
• distance between open handles ~400 mm
11

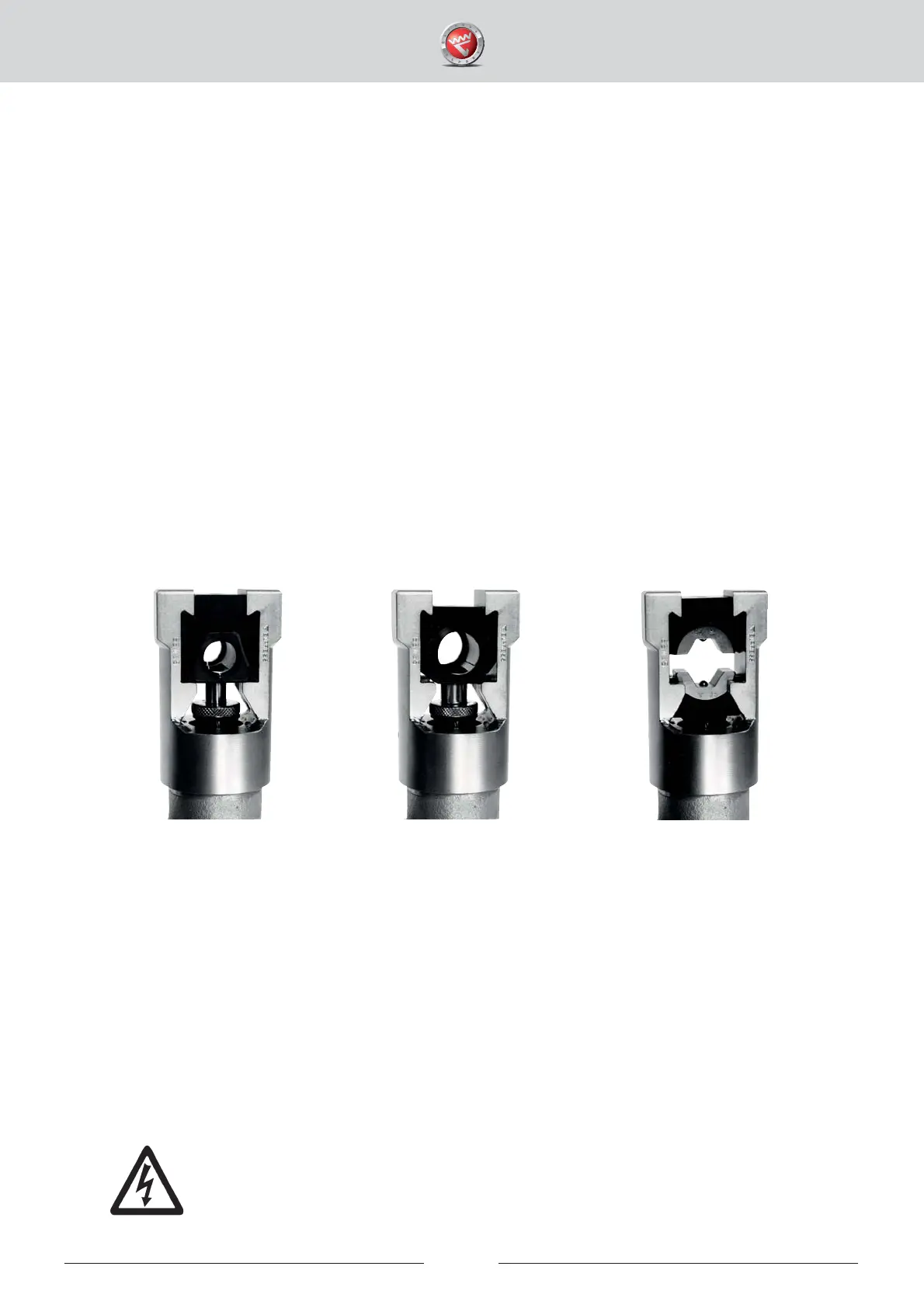

Figure. Assembled accessories in handtool V1311.
Al 16 - 150 mm² Al 185 - 240 mm² Cu 10 - 400 mm²
C-sleeves 10 - 120 mm²
Fe-Al 62 - 99 mm²
