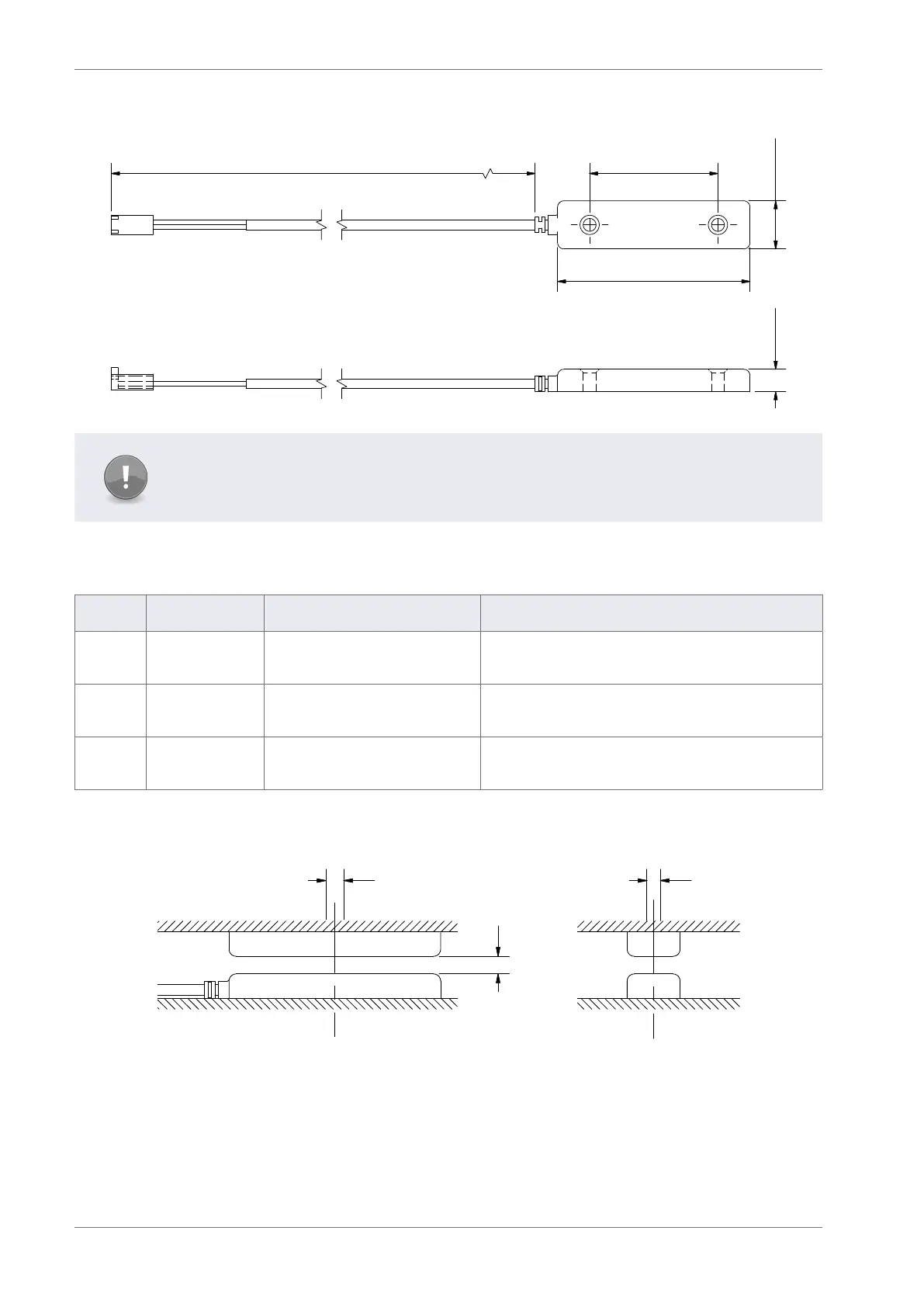

Overall dimensions for the door switches are as shown.
60 mm
1
5
m
m
7
m
m
40 mm
L
Note
Door switches and activators supplied by Elstat must not be installed using rivets.
Using rivets invalidates the warranty.
The alignment of the door switch and activator is critical for the correct operation of the door switch. The
table details alignment tolerances.
Alignment Dimensions Notes
X Horizontal
0mm (0in)
+/- 20mm (0.7in)
Measured when the door is closed and the gap
(z-dimension) is correct.
Y Vertical
0mm (0in)
+/- 10mm (0.4in)
Measured when the door is closed and the gap
(z-dimension) is correct.
Z Gap
0mm (0in) to 5mm (0.2in)
+/- 2mm (0.07in)
The diagram below shows the horizontal, vertical, and gap alignment between the door switch and the
activator for open and closed doors.
Z
X Y
To mount door switches on double-door coolers, two door switches must be connected in series. Connect
two door switches in series as follows:
` Remove the two wires from one of the connectors. Be careful not to damage the terminals.
` Remove the white wire from the second connector. Again, be careful not to damage the
terminal.
