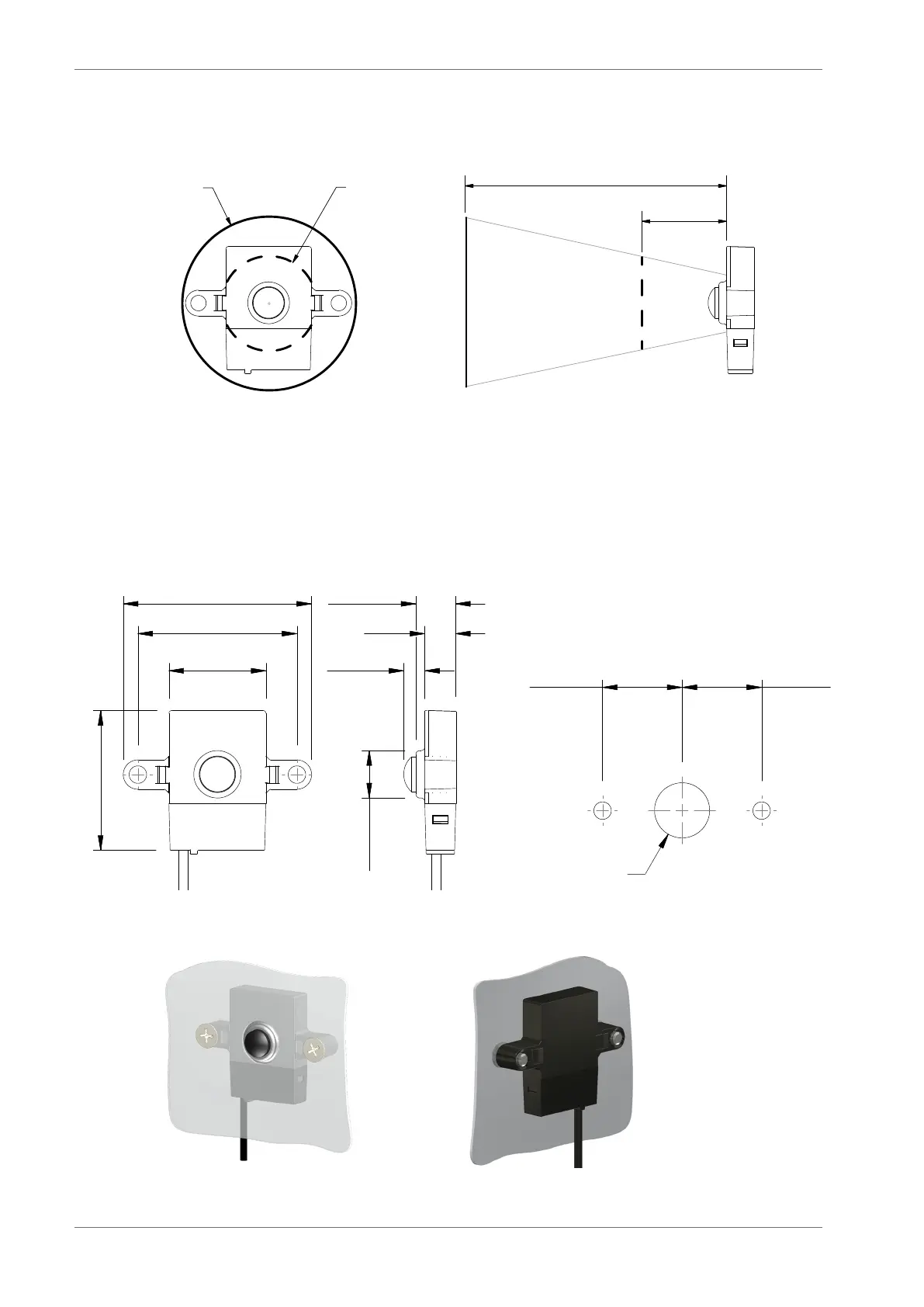

For a motion sensor that is not mounted ush with the panel, the diagram shows the minimum
recommended clearances to ensure motion detection. For example, if the motion sensor is mounted
15mm behind the panel, a 30mm diameter aperture is required.
55 mm

30 mm
65 mm
15 mm
The motion sensor head must be xed using counter sunk screws or bolts with the following characteristics:
` Head: countersunk, maximum diameter 6.0mm (0.24in)
` Thread: maximum diameter 4.0mm (0.16in).
The screws must be tightened to a maximum torque of 0.5Nm (0.37lbt).
Overall dimensions of the motion sensor Dimensions of the mounting holes
25 mm
41 mm
5.435 mm
48.5 mm
8 mm
3
6
m
m
14.2 mm
20.5 mm 20.5 mm
10.2 mm
1
2
.
2
m
m
Sample of a mounted motion sensor
