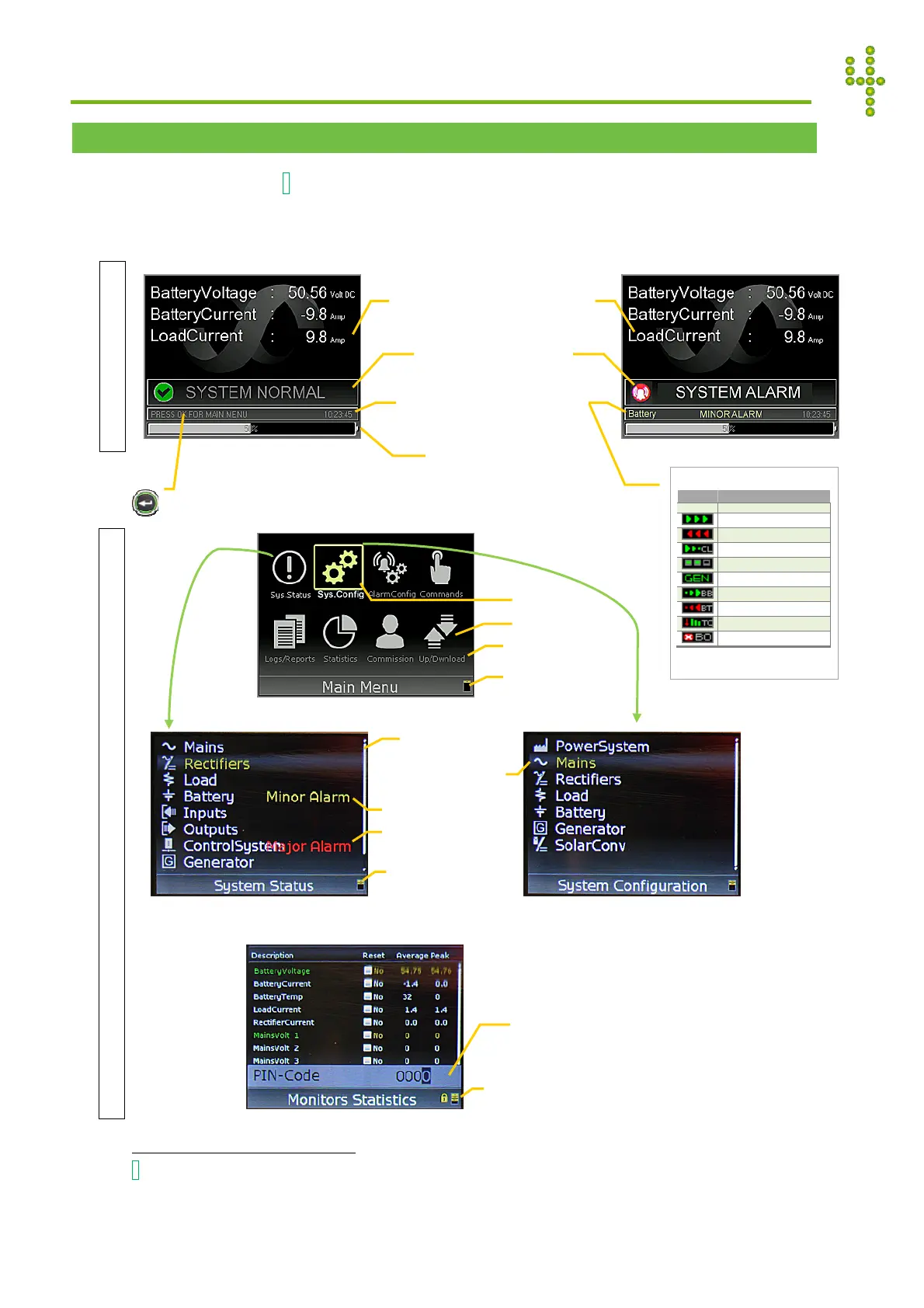

Quick Start Guide Flatpack2 PS System, 4U, SP2-based 356825.103, 2v0 -2011-09
11
Software Menus Smartpack2 Master Controller
The Smartpack2-based DC power system’s functionality is accessed via a network of software
menus and submenus
1
, enabling you to configure and control the whole power system from the
controller’s front panel. When browsing the menus, the Menu Level Indicator shows where you
are, the menu level you are in. Editing parameters is password protected, (default pin code <0003>
should be changed). The display can be in Status Mode or in Menu Mode.
1
From a PC’s web browser, via WebPower, or running the PowerSuite program, you can also access the
complete system functionality, described in the programs’ Online Help.
Operation
Status Mode
System in Normal Mode
System Parameters
Display more with the and arrow keys.
(Display area P)
System in Alarm Mode
System Status
Normal mode, Alarm mode, etc.
(Display area S)
System Messages
Animated icons, keys to press, alarms,
system time, etc
(Multi-Info field, Display area M)
Status Battery Bank
Displayed in % or in Ah
(Display area B)
Menu Mode
Main Menu Options (Level 1)
Menu Icons
Menu Names
Menu Level Indicato
r
hierarchical menus (Level 1)
Submenu “System Status” (Level 2)
Submenu “System Configuration” (Level 2)
Scrollba
r
Menu Level Indicato
r
hierarchical menus (Level 2)
Chosen option (yellow text)
Press “Enter” to display the
Mains submenu
Warning (minor alarm)
A
larm (major alarm)
Example Submenu “Monitors Statistics” (Level 3)
Menu Level Indicato
r
hierarchical menus (Level 3)
Pin Code required for changing configured parameters
(use the or arrow keys to enter code).
Default pin code <0003> (should be changed)
Chosen option
To change from Status Mode
to Menu Mode press on this
key:
Animated System Messages (M)
in Normal Mode
Icon Enabled Function
none Float Batt. Char
g
in
g
Battery Charging
Battery Discharging
Current Limitation
Efficiency Management
Generator running
Batt. Boost Charging
Battery Tes
t
Temp. Compensated Ch.
Outputs Blocked
When no battery bank installed, the
icons are shown in Display area B
