Quick Start Guide Flatpack2 PS System, 4U, SP2-based 356825.103, 2v0 -2011-09
2
The Smartpack2-based Product Range
Eltek Valere's Smartpack2-based product range utilizes Flatpack2 rectifiers and the Smartpack2
distributed control system as building blocks for implementing effective DC power systems,
suitable for a wide range of applications and power ratings.
Cabinetized systems are suitable for indoor or outdoor applications. In addition to the power
system and the distribution unit, the cabinet may also contain battery banks, additional distribution
and other dedicated equipment.
Integrated power systems consist of rectifiers, Smartpack2 Master and Smartpack2 Basic
controllers, I/O Monitor2 nodes and the distribution unit (4U high). Integrated systems are sold
primarily for mounting in existing cabinets.
Brief Description — Smartpack2-based System
The Smartpack2-based Flatpack2 PS system is a compact, powerful and cost-effective DC power
supply system, specifically developed for telecom and industrial applications.

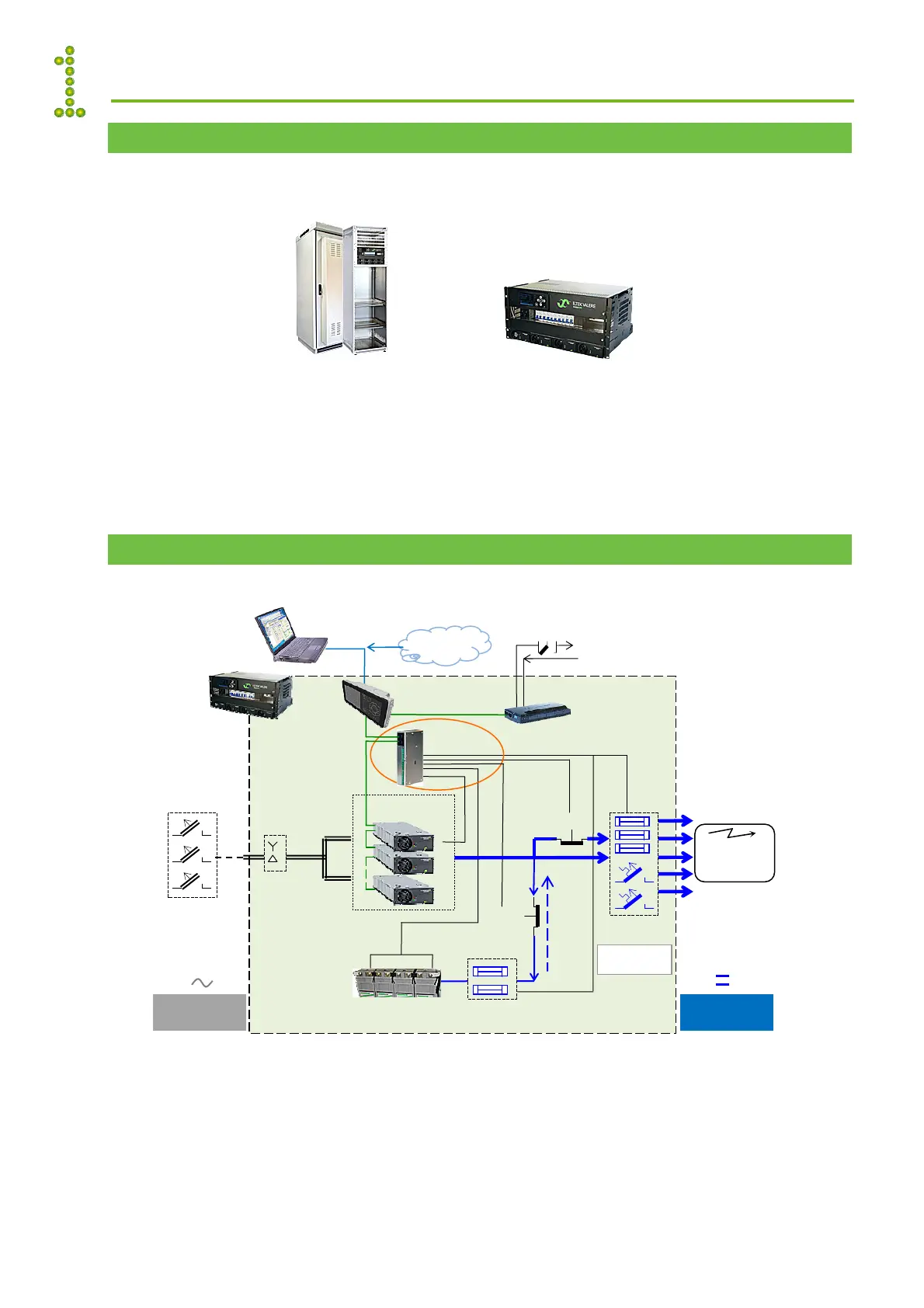

Example of a typical Smartpack2-based Flatpack2 system used for DC power supply of telecom
and industrial equipment. The system is fed from an external AC mains supply, and consists of
rectifiers in power shelves, master and basic controllers and DC distribution unit. Battery banks,
LVD contactors, etc. are typically also a part of the system.
Introduction
Flatpack
2
Systems, SP2-based
Indoor and Outdoor Cabinets
Flatpack
2
System, SP2-based
Integrated 4U Distributions
Batte
r
y st
ing #1
A
C mains
supply
selector
Temp.
Senso
r
s
LVLD
LVBD
Fuse Alarm
AC Fuses,
external
(230VAC or
400VAC
AC Supply
(Single- or
three-
p
hase
)
Batte
r
y
Fuses
Load Fuses
& MCBs
Flatpac
k
2 HE
rectifiers
CAN Bus
DC
Distribution
DC Supply
(24V, 48V
or 60V
)
Flatpack
2
System
Etherne
t
cable
Internet
Telecom and
Industrial
equipment
Smartpack2
Master Controller
Smartpack2
Basic Controller
A
larm Outputs NC-C-NO
Config. Inputs
WebPower
(web-based
user interface)
I/O Monitor2
CAN node
