The following diagram shows the front of the HTFr with combustion tube inserted and O-ring in
place:

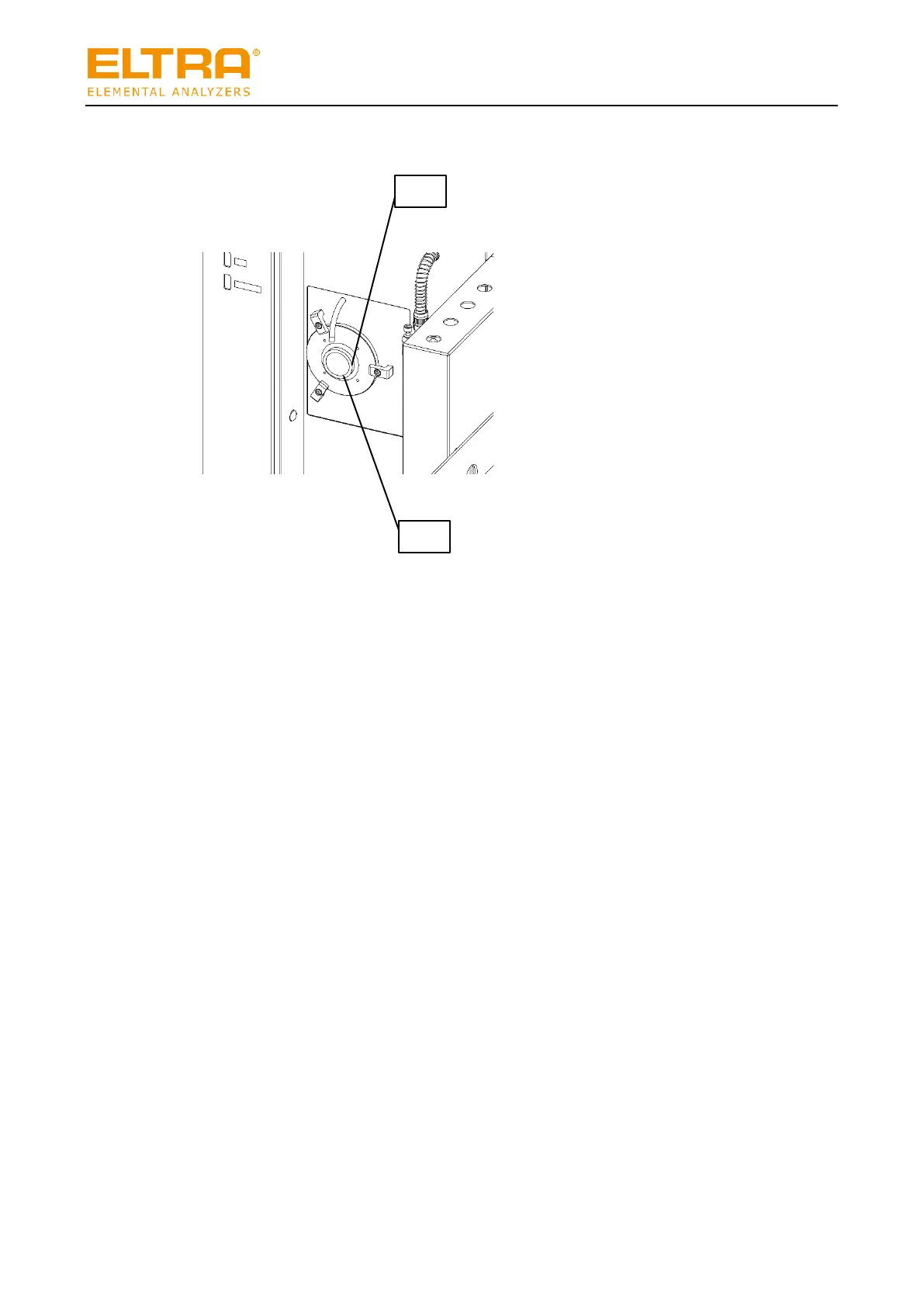

Fig. 38: Front of the HTFr with inserted combustion tube and O-ring
5. Slide the O-ring (6) onto the combustion tube (7).
The O-ring (6) should be positioned at a distance of approx. 2 cm from the edge of the
combustion tube (7).
6
7
