Step ➎
Remove Sensor
Assembly

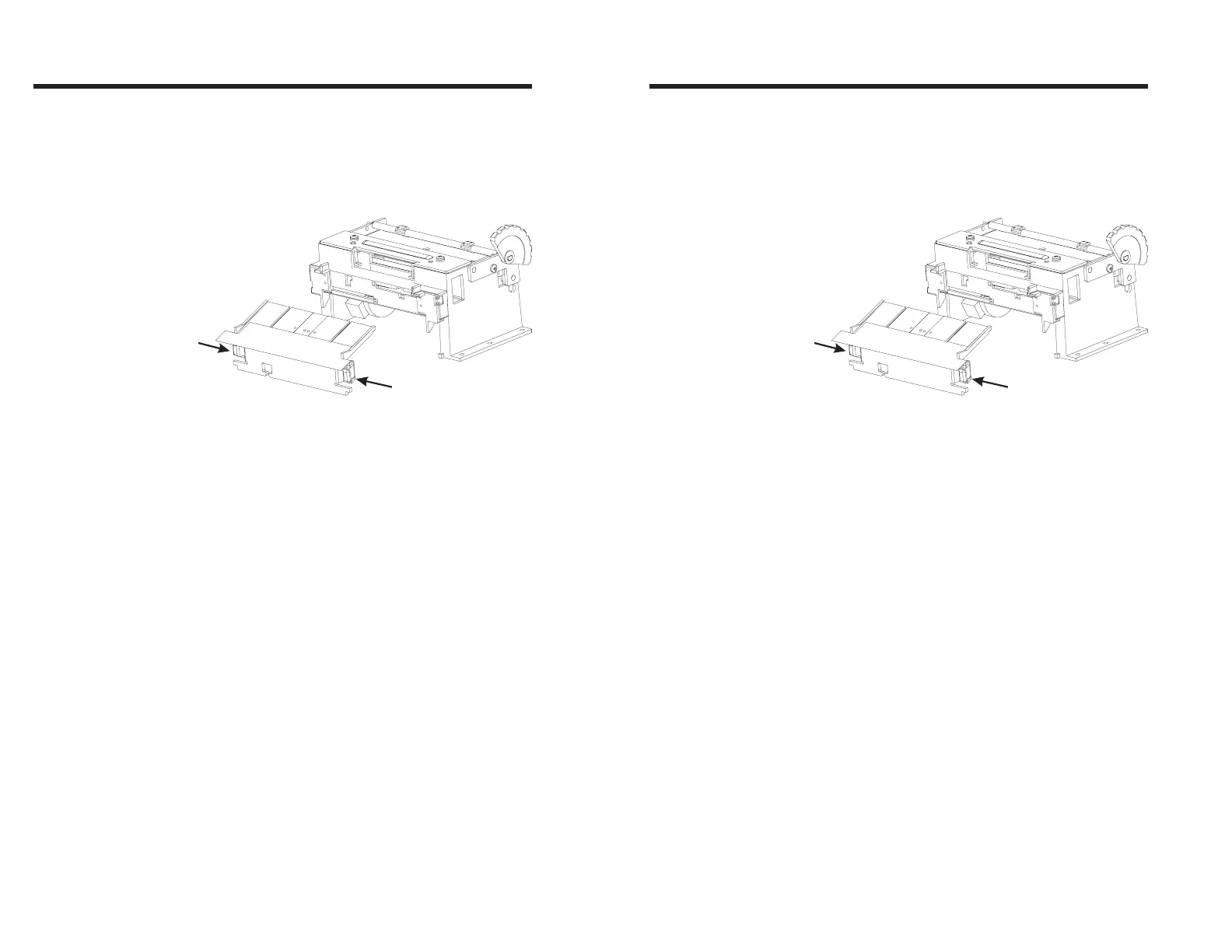

Locate the push tabs on the rear of the mecha-
nism. While pushing in on both tabs, pull the
lower sensor assembly away from the mecha-
nism.
This provides easy access to the inside of the
print mechanism. If the clear mylar label guide
is damaged, it should be replaced. Spare parts
can be ordered by contacting Eltron at 1(800)
344-4003.
