Elvox ART. 89F4/T User Manual

2
I
INTRODUCTION
The PATAVIUM serie TWO WIRE ELVOX electronic entrance pa-
nels consist of the following parts:
- 1 brass plate with gold-plating and varnishing using the tita-
nium nitride PVD technique.
- 1 flush-mounted back box in zinc plated plate.
- 1 electronic unit with microcontroller.
The following entrance panel models to be configured:
- Audio entrance panel with electronic agenda, alphanumeric
keypad and display, with standard modules type 89F4/T...
- Video entrance panel with colour camera, electronic agenda,
alphanumeric keypad and display, with standard modules type
89F7/CT.
All entrance panels are supplied with the “Engaged-Please Wait”
message, while entrance panels with display have an alphanu-
meric display with 2 lines x 16 characters and an electronic name
index for up to 400 users. Each user can be associated with two
names comprising max. 16 characters.
An external CCTV type camera can be connected to an audio
entrance panel 89F4 or 89F3, after re-configurating the panel as
video as described in paragraph “Hardware programming – En-
trance panel programming modification”.
The entrance panel can be programmed with the entrance panel
keypad or with programming module Type 950C or the PC Soft-
ware SaveProg Type 69CD, in this case it is necessary to have
the interfaces Type 692I or Type 692I/U.
BASIC ENTRANCE PANELS
The basic entrance panels consist of: 1 electronic unit, 1 con-
necting terminal block and 1 PATAVIUM series brass entrance
panel. The electronic unit is equipped with: 1 speech unit, 1 ca-
mera for the video versions, 1 back-lit alphanumeric display, 1
keypad and 1 cabling for the terminal block connection. The
standard modules for video panels in B/W are equipped with a
b/w camera with ¼" CCD sensor and fixed 3 mm lens and LED
for infrared lighting. The standard modules for video panels in
colour are equipped with a b/w camera with ¼" CCD sensor and
fixed 3 mm lens and white indicator LED. All panels with came-
ras can be tilted manually, horizontally or vertically, on removal of
the plate. Example of standard module with camera.
3
2
1
1 2 3
4 5 6
7 8 9
0
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
+
R

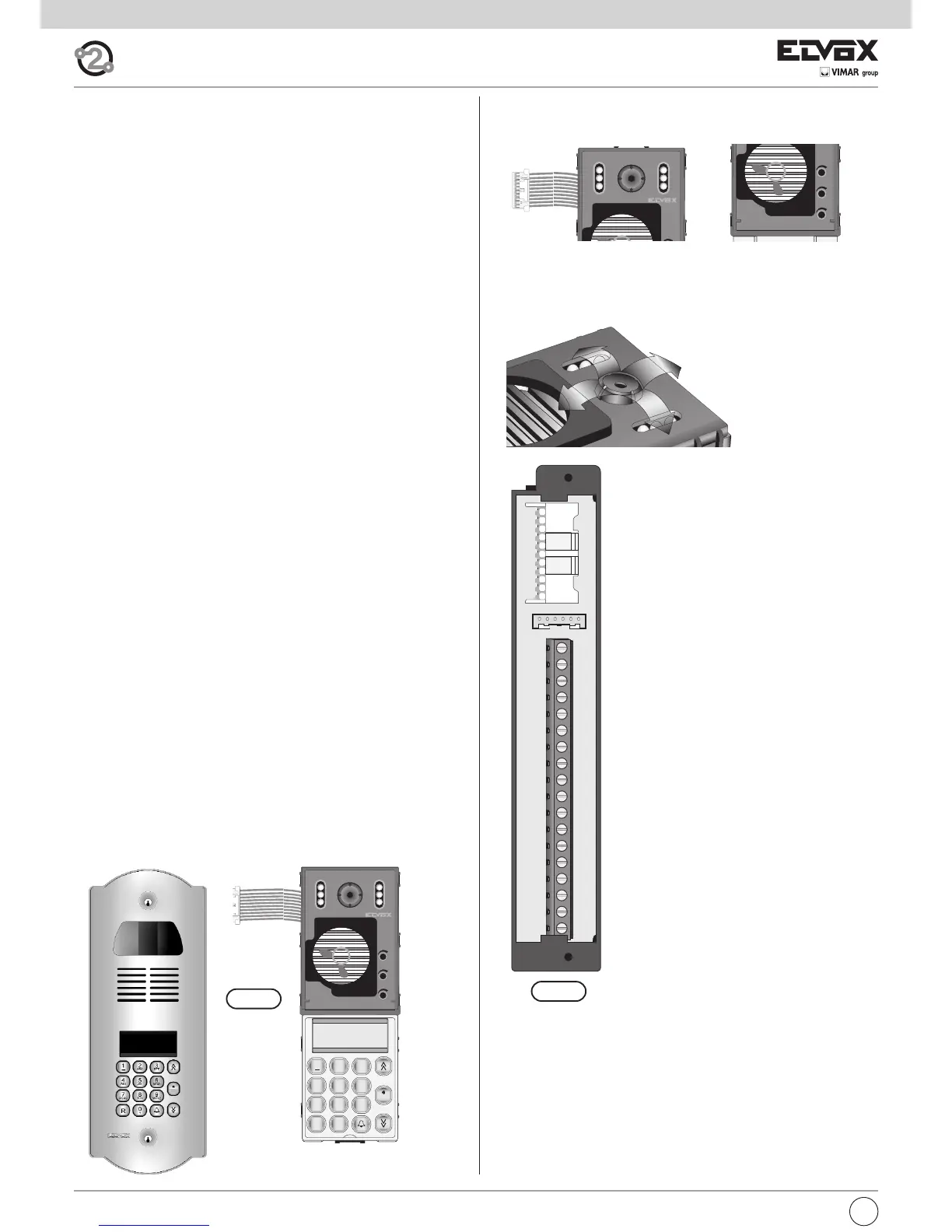

Fig. 1
Fig. 2
3
2
1
Controls:
2 – Reset
3 - Balance
Wiring for terminal block con-
nection
Manual horizontal and vertical tilt
Electronic unit
Plate series PATAVIUM
B2
B1
EXT+
EXT-
VLED
M
PA
CA
M
S+
S-
+12V
-L
SR
F2
F1
M
X
B2
B1
EXT+
EXT-
VLED
M
PA
CA
M
S+
S-
+12V
-L
SR
F2
F1
M
X
CN2
CN1
CS2411 250105
Terminal block
CN1) Connector for electronic unit.
CN2) Connector for programmer Type 950C.
B2) 2-wire Bus (cable riser).
B1) 2-wire Bus (cable riser).
EXT+) External power supply (+ type 6923).
EXT-) External power supply (- type 6923).
VLED) LED power supply for additional modules.
X) Video input (coaxial core), for external ca-
mera (for type 89F8 only).
M) Video input (coaxial sheath), for external
camera (for type 89F8 only).
PA) Input for door open sensor (with reference
to terminal M).
CA) Door open command (with reference to
terminal M).
M) Ground.
S+) 12Vdc lock output (+).
S-) 12Vdc lock output (-).
+12V) +12V output (max 100 mA) with PTC pro-
tection.
-L) External camera pilot, open collector out-
put.
SR) Lock pilot via relay, open collector output.
F2) F2 function pilot via relay, open collector
output.
F1) F1 function pilot via relay, open collector
output.
M) Ground.
)
*
*
The panel supplies a current peak IT> 1A for 10
mS, followed by a hold current I
M
= 200mA for
the entire duration of the lock command (see
lock time).
