Voltage Dips and Interruptions as per IEC 61000-4-11
Main Menu Power Fail for voltage dips and interrupt
tests and voltage variation
12.1.

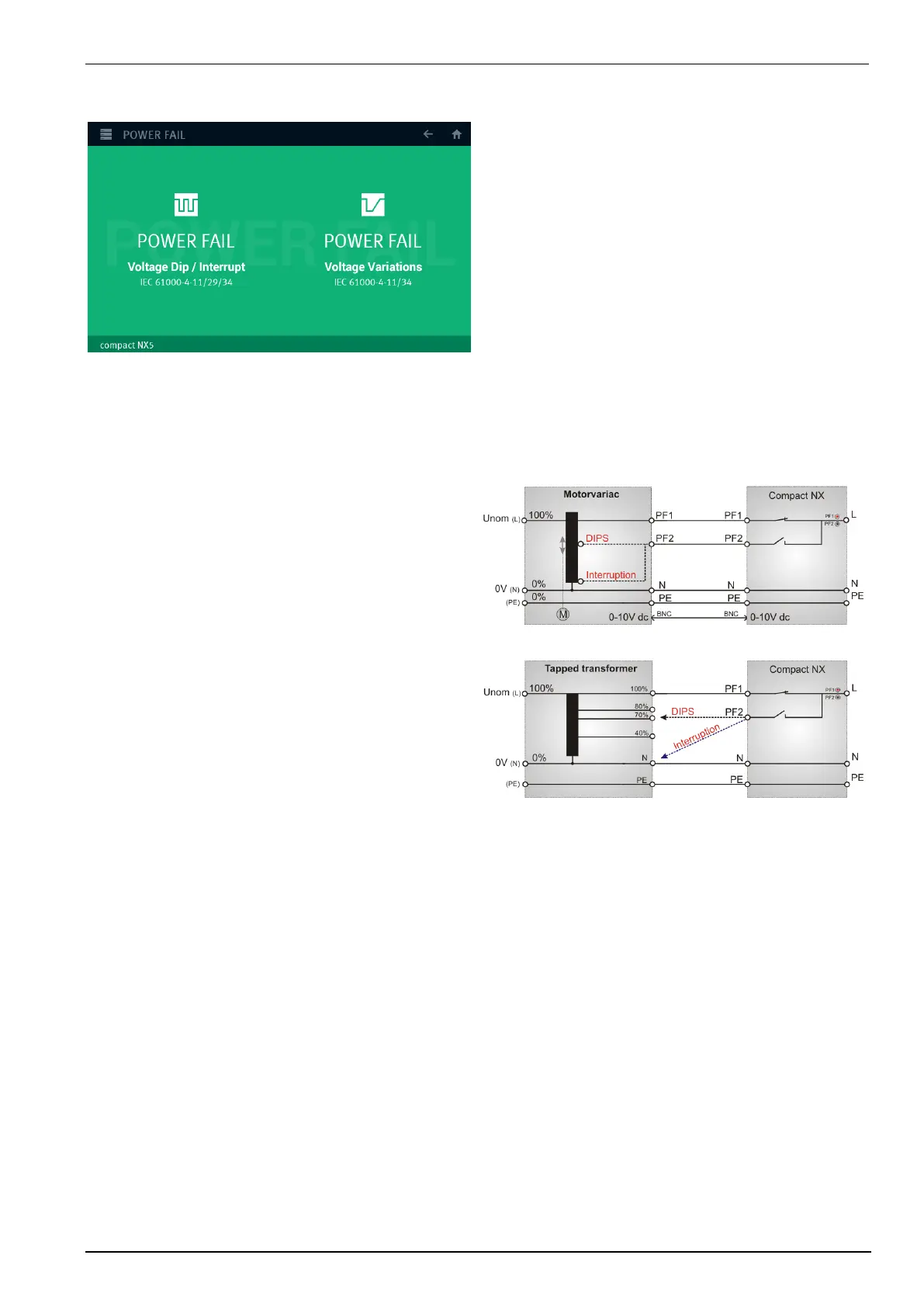

Test setup for DIPS and Interruption tests
Voltage DIPS
For voltage DIPS a connection must be made from the
compact NX PF2 input to the motorvariac PF2 or
V4780, where the reduced voltage is present.
Interruption tests
For Interrupts connect the compact NX PF2 input to the
neutral as follows:
- Motorvariac : PF2 output (default setting) set
motorvariac to zero volt.
- V 4780 : Connect the cable to the N output at
the V 4780
