4.3.2.
Menu Setting
Each test phenomena is operating similar. The next section shows the basic operation for perform a test.

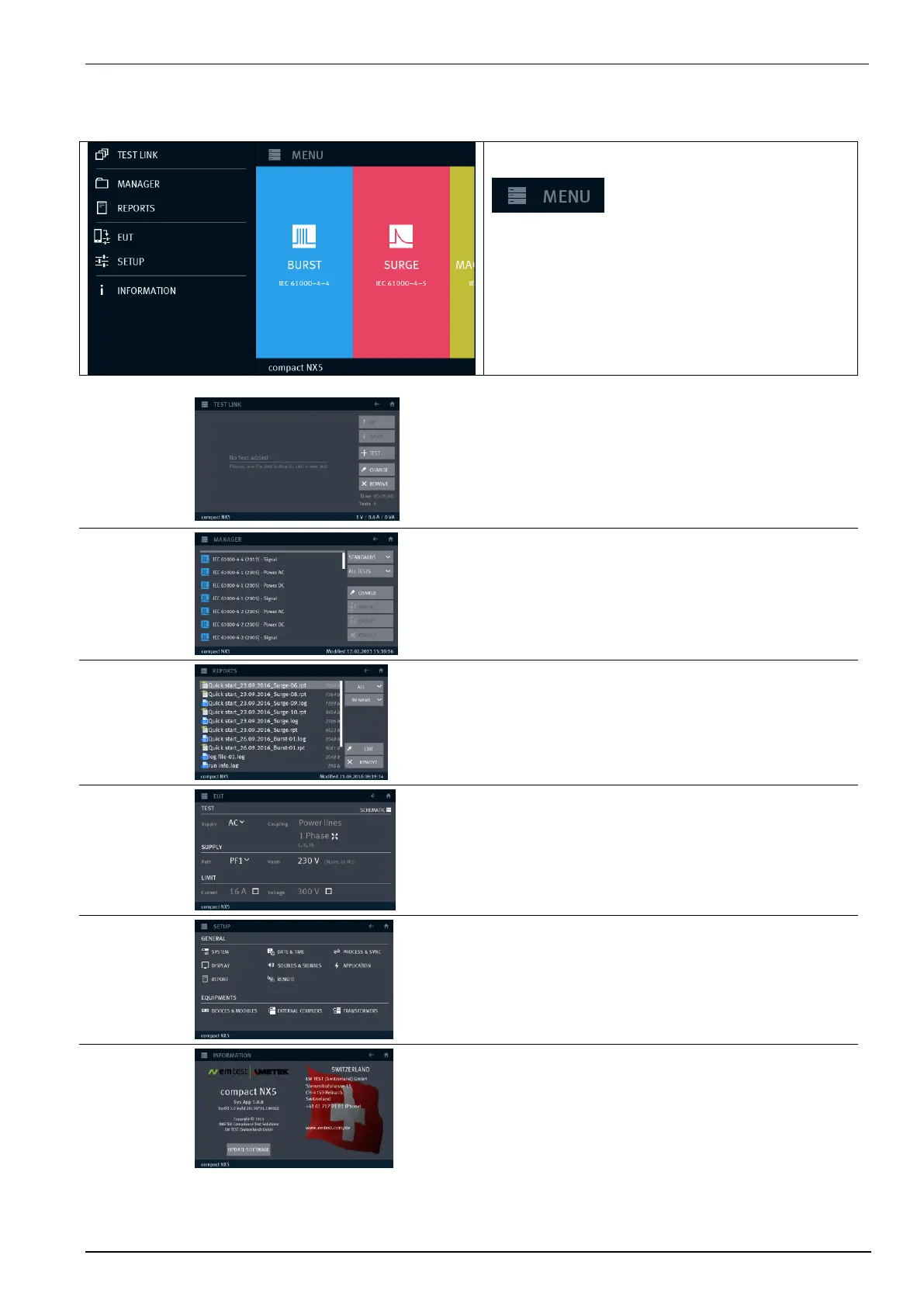

Screen after Touch onto
TEST LINK
In this menu the user creates and complete his own test Link
A Link Test is generated from
- Test files, loaded from the library (Burst,
Surge,…)
- Pause or messages with information to
the test
- Save or load any test
Manager
The user configures in this menu the library Manager of all
existed test files.
- Rename of tests
- Mark as visible or hide
- Remove test from the library
- Import and Export of test
Reports
15.3. Report
Export
Report Menu for export Report and Log files:
- Report as *.rpt
- Report as *.pdf
- Report as *.rtf
- Report aRun Information as *.log
EUT
4.3.5. EUT Setup
EUT and Supply configuration
EUT Configuration and Setup for the test.
The generator uses the settings and offers exact the needed
information for the EUT. All needless information will not be
displayed
Setup
4.3.6. Setup
Setup
General setup for Compact NX5 settings
- System, Date/Time, Process & Sync
Display, Sounds & Signals, Application,
Report; Remote,
Equipment setup for
- External couplers, Transformers
Information
System Information
- Device Version, Firmware, Software
- Representative address EM TEST /
AMETEK CTS offices, when touch the
national flags
- CH, Germany, USA, Poland, France,
Italy, Austria, China, Japan
- - Software update (3.6. Software
Update)
