EM TEST Compact NX5
Operating Manual V 1.06 68 / 143
5.
Test Equipment compact NX5 N

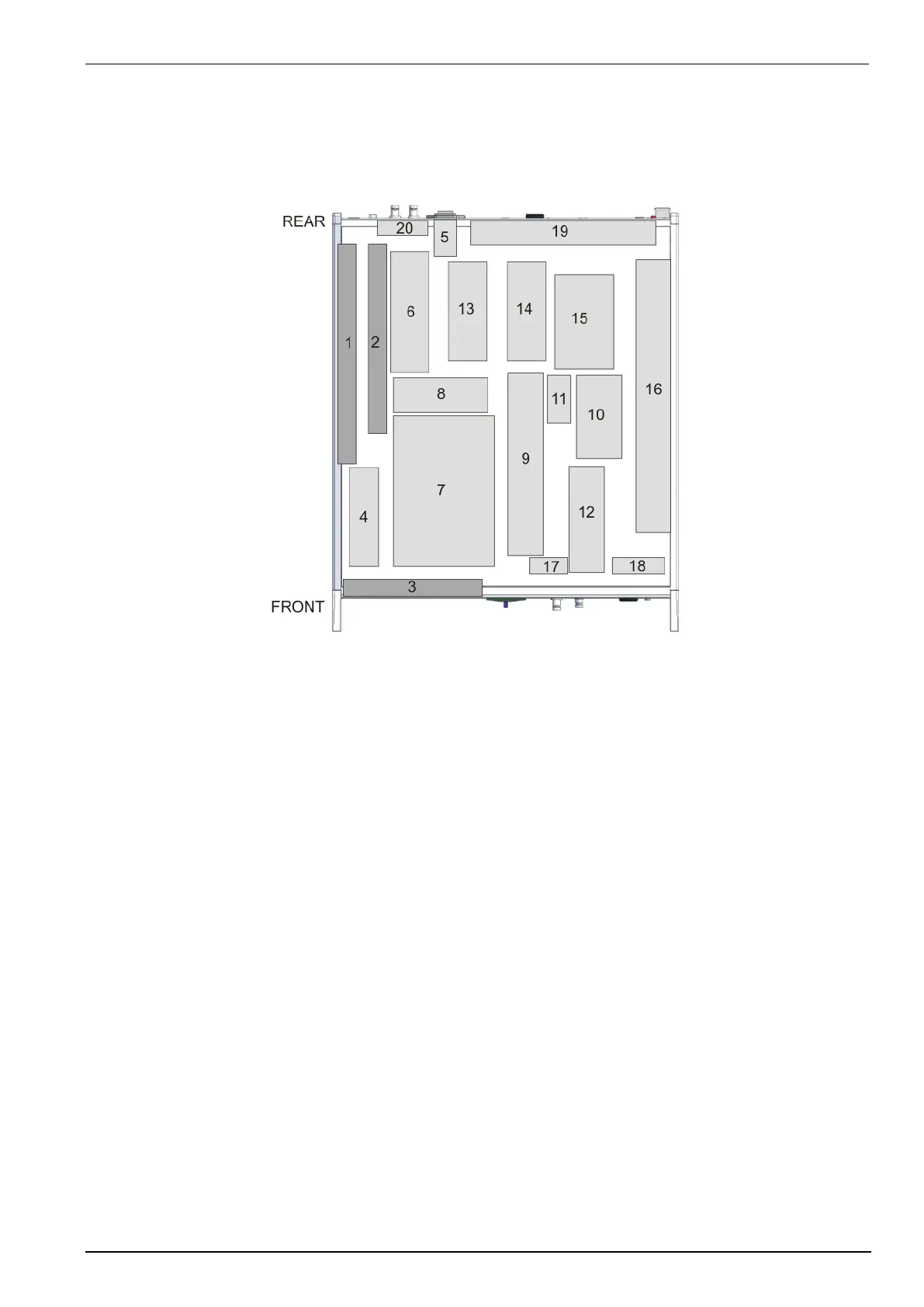

The simulator compact NX5 N is separated in different main parts. The control unit is screened to all other parts.
5.1.
compact NX5
Control unit
Power supply
1 App board controller
2 Device board controller
3 HMI board, touch panel
4 Power supply
5 Mains filter
High voltage unit
6 High voltage power supply
7 Energy storage capacitor, Pulse forming
8 Measuring Unit
9 Surge pulse forming unit
10 Surge coupling capacitor
11 Surge pulse measuring transformer
12 Burst pulse forming unit
13 Power Fail switch PF2
14 Power Fail switch PF1
15 decoupling inductors 1.5 mH
15 Measuring unit
16 Coupling relays surge
17 Peak current measurement
18 Burst Coupling board
19 Back filter board
20 Rear panel interface board
