EM TEST Compact NX5
Operating Manual V 1.06 41 / 143

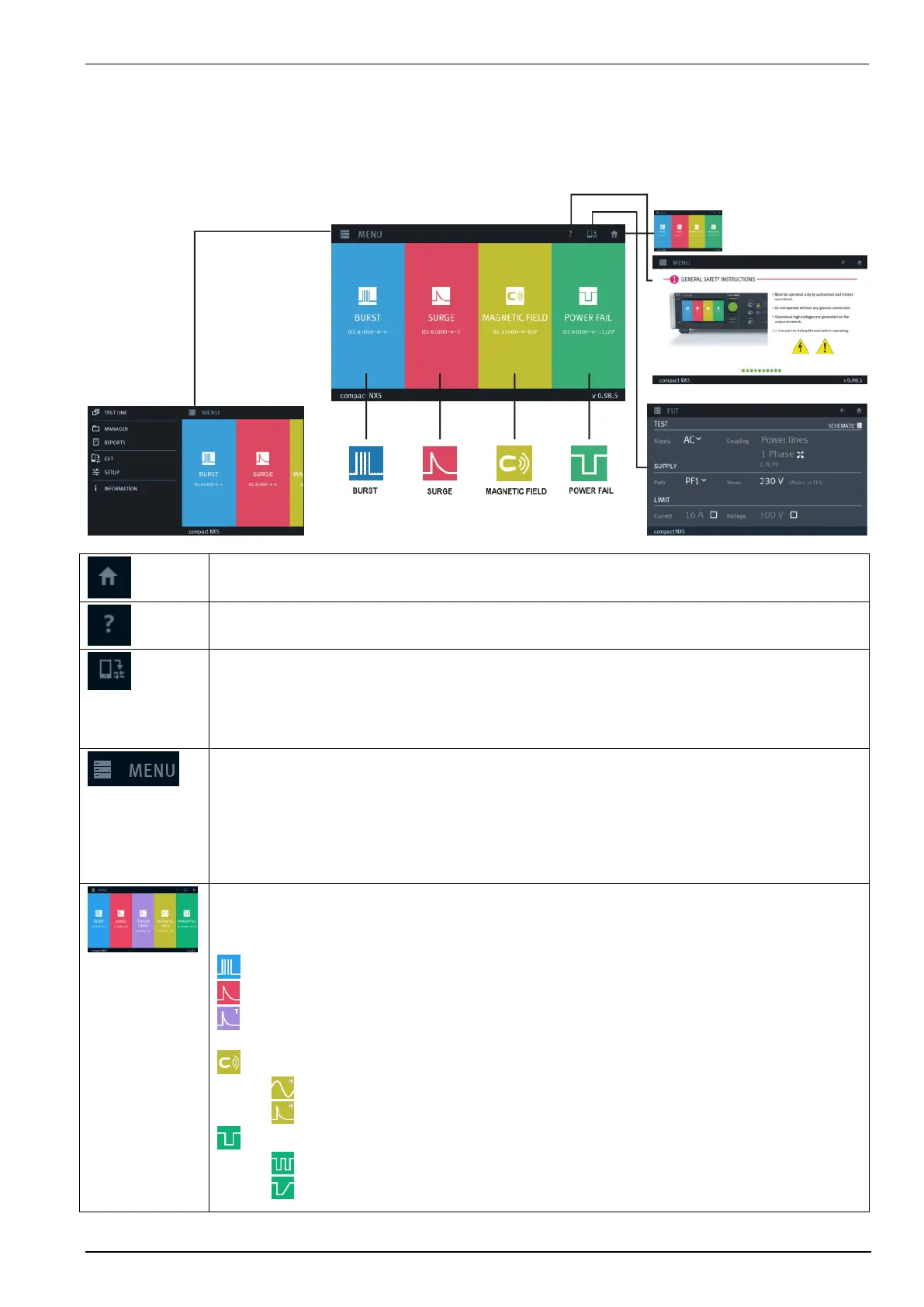

Home
Returns to the Home screen
Help
Shows the Quick Start Guide for a brief information for NX5 generator operation
EUT and Supply configuration
- EUT configuration (power line arrangement / data lines)
- Test supply and coupling
- Supply Path and voltage
- Limiter for EUT current and voltage
Menu Setting: Opens the menu for general settings
Test Link Configuration of test link procedures
Manager Test files management for test library configuration
EUT Configuration of EUT and EUT supply
Setup General setup compact NX5 and configuration of auxiliary test equipment
Modules List of all available pulse modules
Information Device name, Software and firmware version, address of representatives
Test phenomena
Touch into the colored field for select and load a test. The icon shows the kind of test
phenomena.
Burst impulse test 5/50 ns as per IEC 61000-4-4
Surge impulse test 1,2 /50 µs as per IEC 61000-4-5
Telecom Surge test 10/700 µs as per IEC 61000-4-5
Magnetic field test
Power magnetic field as per IEC 61000-4-8
Pulsed magnetic field as per IEC 61000-4-9
Power Fail tests
Dips and interruptions IEC 61000-4-11 / 29
Voltage variation as per IEC 61000-4-11
