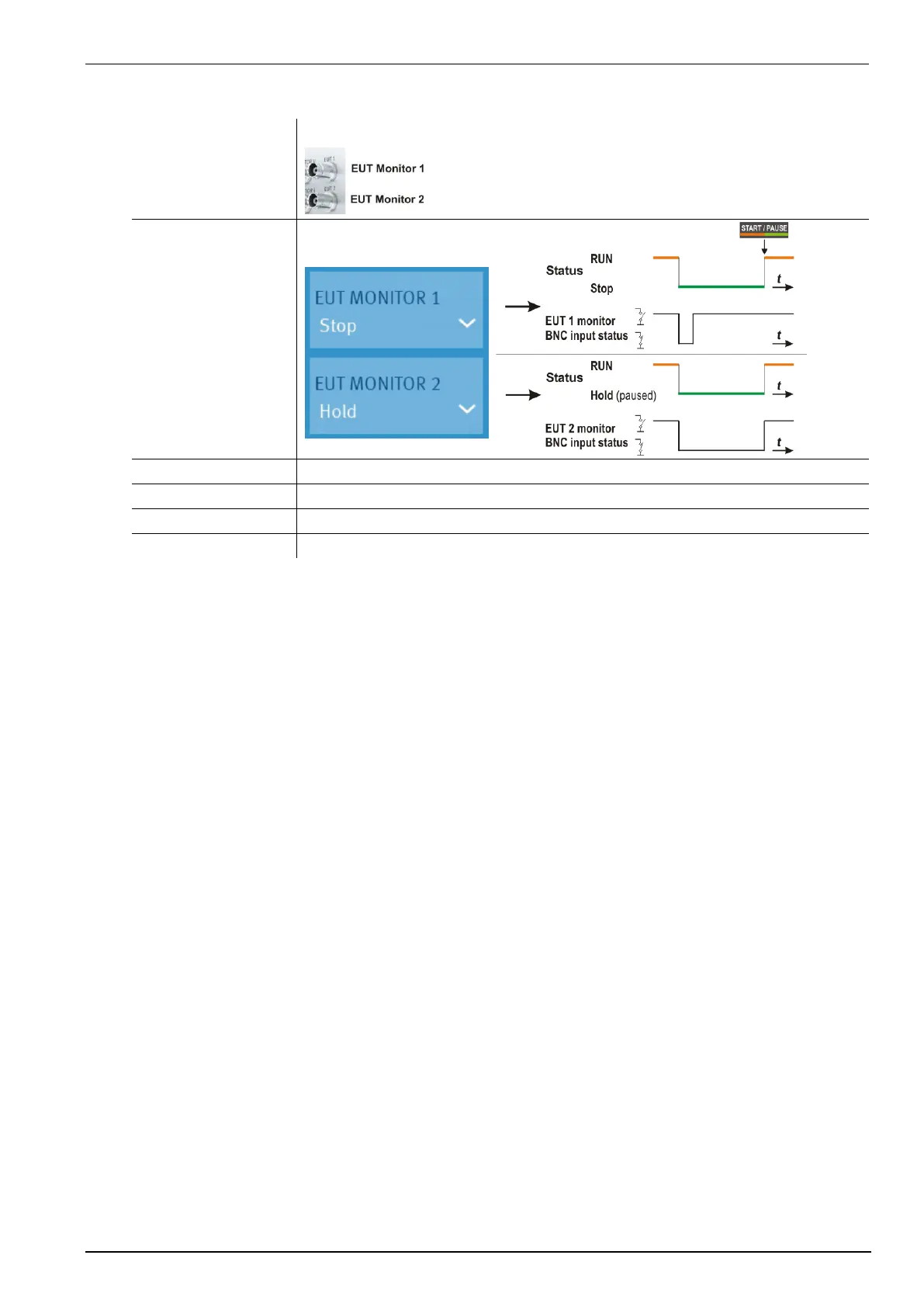

EUT Monitor input signal
EUT Monitor Input
BNC plug on rear side of the compact NX generator
Status of BNC input
of EUT monitor 1 / 2
Input signal
Open collector signal 15 V to 0 V negative slope
Triger level
2 V ±1 V
Input impedance
>10 kΩ
Max. Input
+ 15 V
