Copy right ©
2018 Shenzhen Emakefun Technology
c
o.,
L
td.
13
F
igure 1
-3-6
2
）

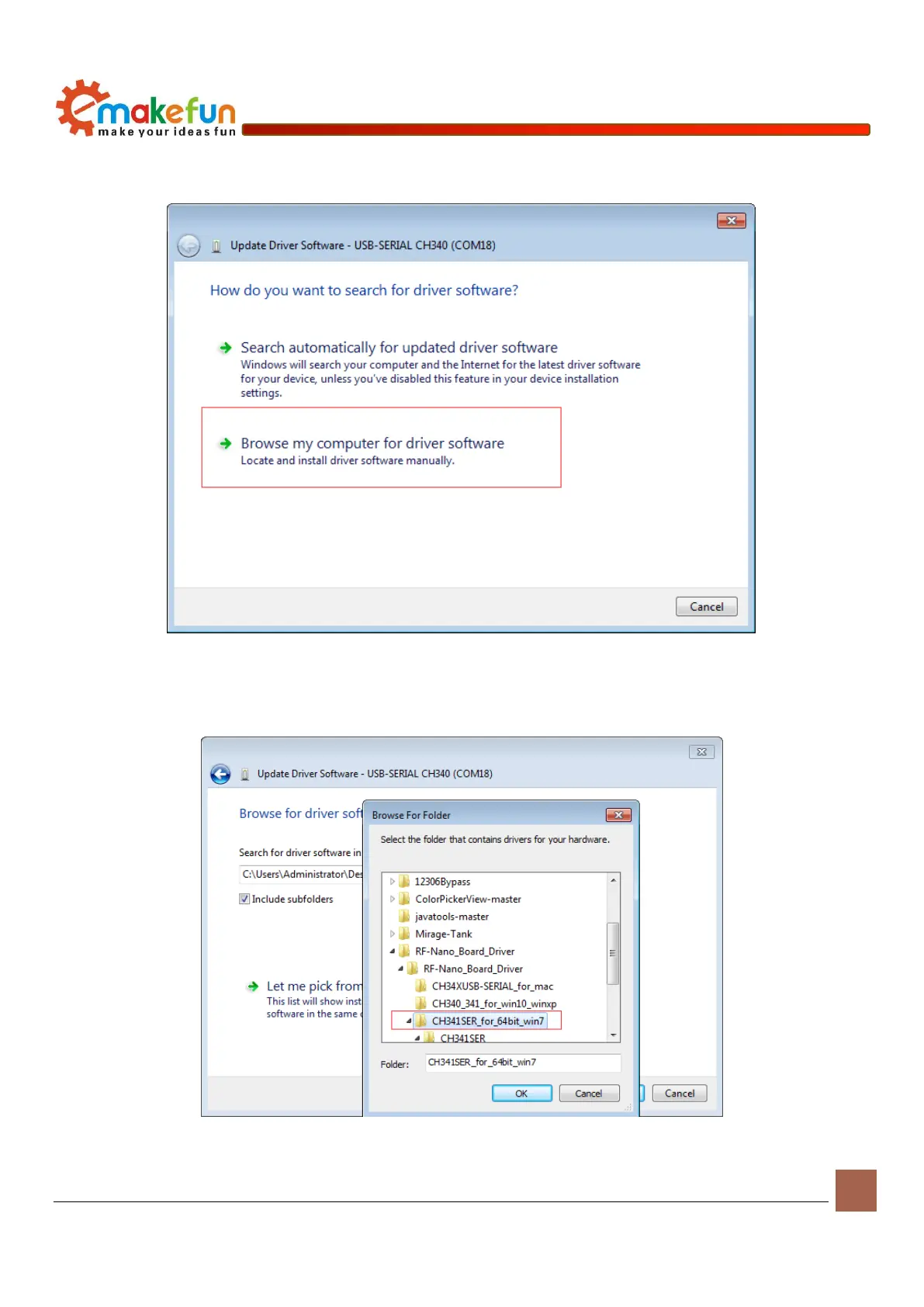

Next, select the browse my
computer
for driver software options
F
i
g
ure 1-3-7
3
）
F
inal
ly, s
elect
the driver file named
CH
341SER_for_64bit
_win7, which is located in the A
rduino_Nano
board driver folder.
Please select the corresponding
driver version according to your computer sys
tem model
F
igure1
-3-8
12
14
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 RF-NANO Introduce
4
RF-NANO Overview
4
RF-NANO MCU Introduce
6
Power Supply
7
Memory
7
Input and Output
7
Communication Interface
7
Atmega328 with NRF24L01+ of Communication
8
Downloader
9
Attention
9
RF-NANO Driver Installation
9
Installation IDE
9
Driver Installation
12
Chapter 2 Working Principle of Rf-Nano
16
Working Principle Introduction of Rf-Nano
16
Config Word
17
RF-NANO Work Module
18
Chapter3 Realizes The Communication between Rf-Nano
19
Implement Two Rf-Nano Point-To-Point Communication
19
Connect Method
19
Principle of Application
20
Program Code
21
Implement Multiple Send to a Receive Communication
24
Experimental Principle Block Diagram
24
Program Code
25
Implement a Send to Multiple Receive Communication
29
Experimental Principle Block Diagram
29
Program Code
29
Chapter 4 Sets the Transmitting Power and Data Transmission Rate
33
Set the Transmitted Power of RF-NANO
33
Set RF-NANO Data Transfer Rate
34
