Emax Tinyhawk User Manual

Tinyhawk
13
emax-usa.com

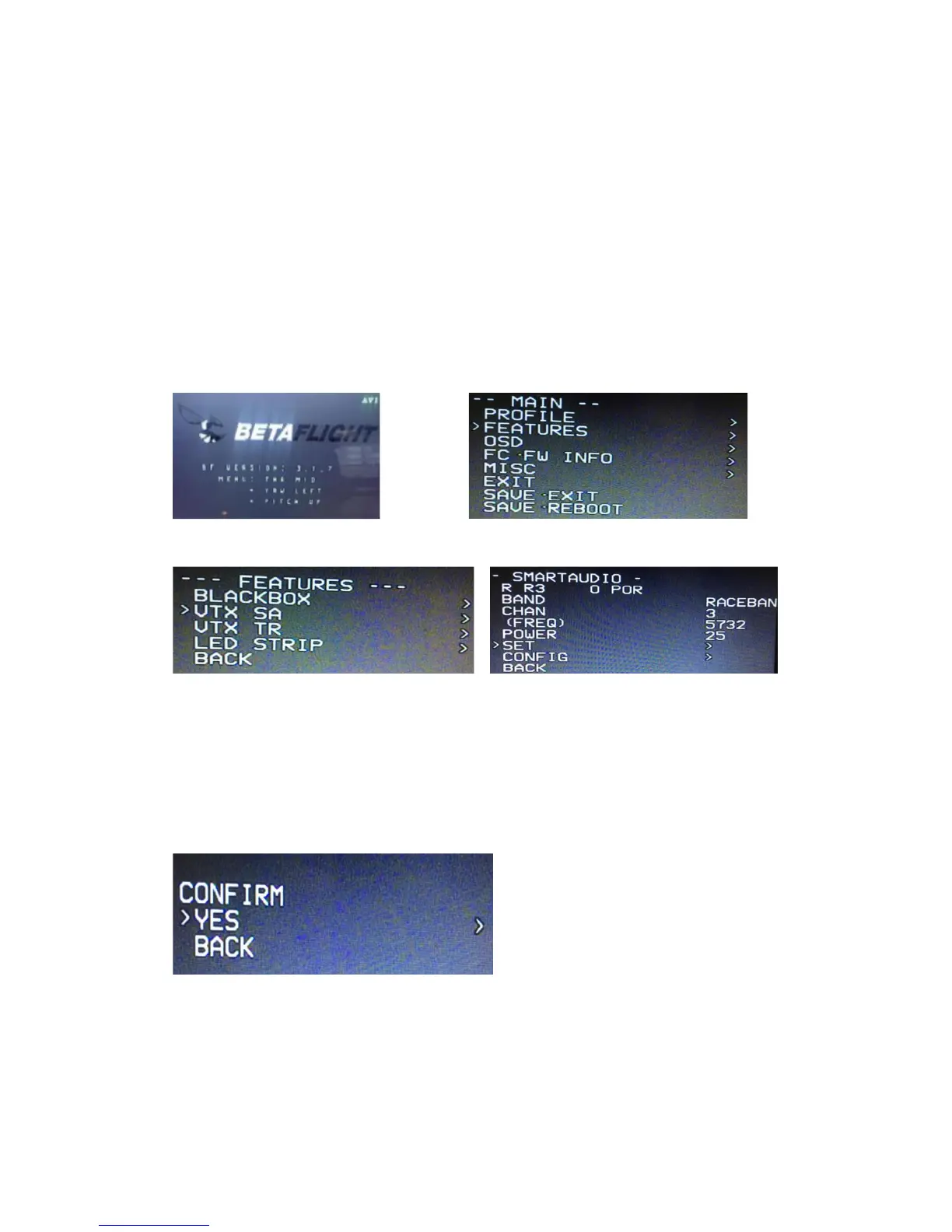

Changing VTX setting via Betaflight OSD
Tinyhawk is equipped with SmartAudio and is already configured with stock settings.
The SmartAudio line is operated on UART 2 TX.
1. Power on Tinyhawk, goggles, and Controller.
2. Follow the tips on screen to enter the main settings menu: THROTTLE MID+ YAW
LEFT+ PITCH UP to enter OSD parameter adjustment menu. as shown in Figure 2.
3. In the menu interface, switching PITCH up/down to choose menu option. Move the
cursor to “FEATURES” and stir Roll stick right to enter next menu. Using PITCH stick
to move cursor to “VTX SA”, as shown in Figure 3.Then pull ROLL stick right to enter
VTX configuration menu, as shown in Figure 4.
4. In the menu of VTX SA, we can configure the BAND, CHAN and POWER. Pulling
the PITCH stick to move cursor up and down to choose VTX options that need
setting. While pulling ROLL stick left and right to change the corresponding
parameters.Once the parameters is set, moving the cursor to “SET”, then turn ROLL
stick right to enter “SET” and choose “YES” and turn ROLL stick right to save setting
parameters, as shown in Figure 5.
Figure 1
Figure 1
Figure 3
Figure 5
Figure 6

Emax Tinyhawk Specifications

General

Camera	600TVL CMOS
Wheelbase	75mm
Frame Size	75mm
Motor Size	0802
Propeller Size	40mm
FPV Camera	600TVL CMOS
Motors	0802
Video Transmitter	25mW
Propellers	Emax Avan Micro
Receiver	FrSky D8
VTX	25mW
Flight Time	4 minutes
Receiver Type	FrSky D8
Flight Controller	F4 (MATEKF411RX Firmware)
Battery	1S 450mAh LiPo
