73
90 - 61202024 PLUG PISTON BODY OT.
91 - 60808002 SPRING FORCK 3V
92 - 61202027 UPPER PISTON
93 - 61408005 HYDRONIC SUPPLY GROUP.
94 - 62113035 HEATING PRESSURE SWITCH
95 - 60704003 GASKET COPPER 1/4P
96 - 60801134 SCREW 5X18 ZINC TC-ES-INC UNI5931
97 - 61205010 ASME SAFETY RELIEF VALVE
98 - 60113004 CONNECTION BRASS 1/2P TO 3/4P MF
99 - 60101082 ELBOW BRASS 1/2P MF
100 - 61202025 COVER PISTON HEATING
101 - 61202028 PISTON HEATING SIDE
102 - 60107005 PLUG BRASS 1/4P M WITH O-RING
103 - 60110028 NIPPLE OT 1"-22X1,5 MM
104 - 60702036 O-RING 2075 EPDM 1,78 X 18,77
105 - 61408007 HYDRONIC RETURN GROUP
106 - 61202026 BY-PASS VALVE
107 - 60701006 3/4” GASKET
108 - 62653003 DOMESTIC HEAT EXCHANGER “ACQUAJET”
109 - 62110052 SENSOR NTC 10 KOHM KLIP WITH SCREW
110 - 60702053 O-RING 3037 EPDM 2,62 X 9,19
111 - 62628001 PURGING PIPE
112 - 61206011 PURGING VALVE M10X1
113 - 60808003 FORCK BY-PASS PIPE

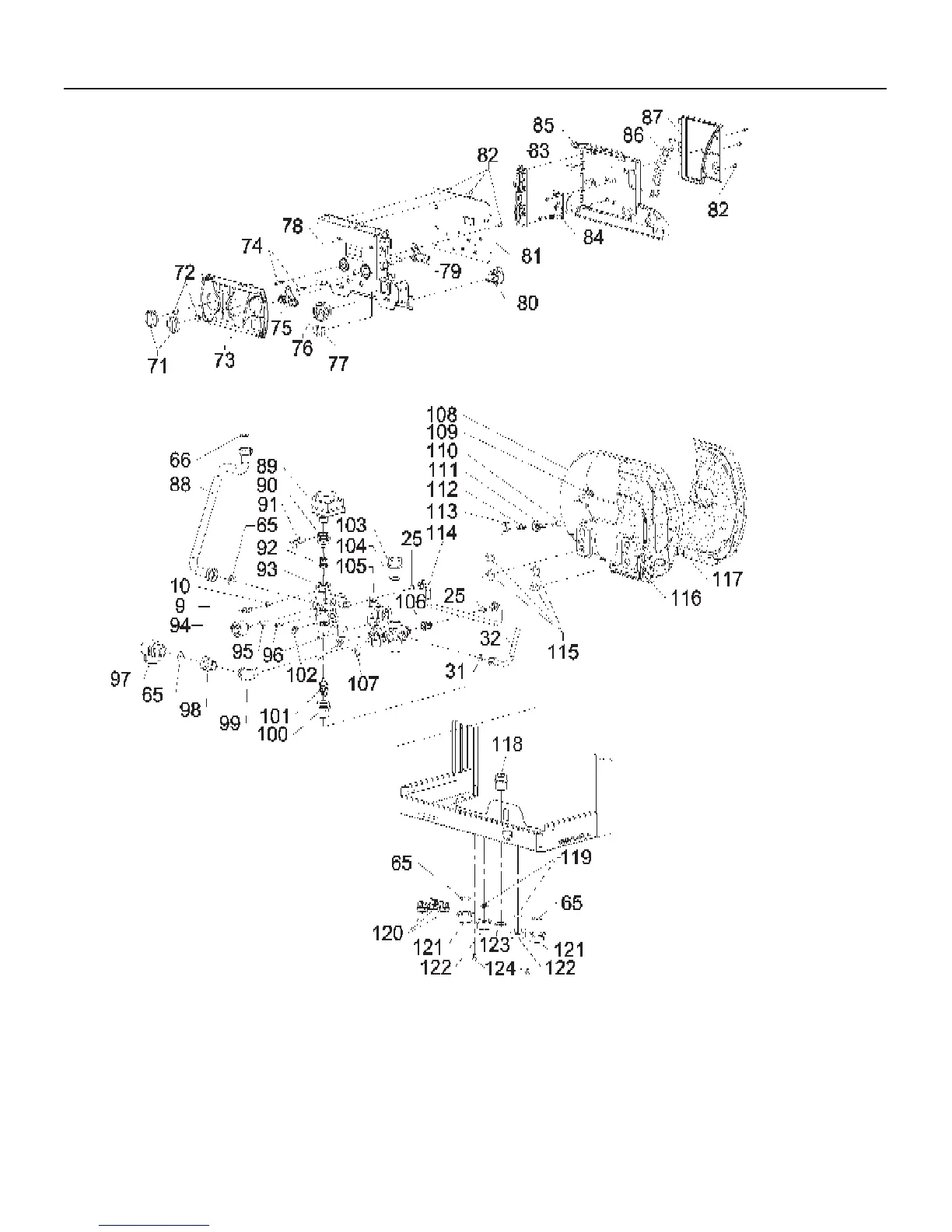

Bottom of the boiler for
45WN and 45WE
models
15 - SPARE PARTS
