74
114 - 60305073 BY-PASS PIPE
115 - 60702054 O-RING 4075 EPDM 3,53 X 18,64
116 - 60901022 FRONT THERM. INSULATION “ACQUAJET”
117 - 60901023 REAR THERM. INSULATION “ACQUAJET”
118 - 60110025 NIPPLE OTT 3/4NPT-3/4P USA
119 - 60701004 1/2" G GASKET
120 - 61101001 FAIRLEAD PA 107 SCREW HILO 3,5X14,5
122 - 60101225 CONNECTION BRASS 1/2P TO 1P
123 - 60802018 3/4” NUT
124 - 60801135 SCREW 6X8 ZINC TC-CR DIN7985
125 - 62623248 SUPPLY PIPE FOR ONLY HEATING
126 - 61408008 HYDRONIC SUPPLY GROUP ONLY HEATING
127 - 60101193 1/2”-1/4” FF BRASS FITTING
128 - 60107014 PLUG BRASS 3/4P F
129 - 60107015 PLUG BRASS 3/8P F
130 - 61408009 HYDRONIC RETURN GROUP ONLY HEATING
131 - 60101124 1/2P CAP
132 - 62113041 PRESSURE SWITCH ON 4,5 INWC
133 - 60101064 ELBOW 1/2P F/F BRASS
134 - 60110001 NIPPLE 1/2P BRASS
135 - 60815012 GLASS WINDOW WITH GASKET

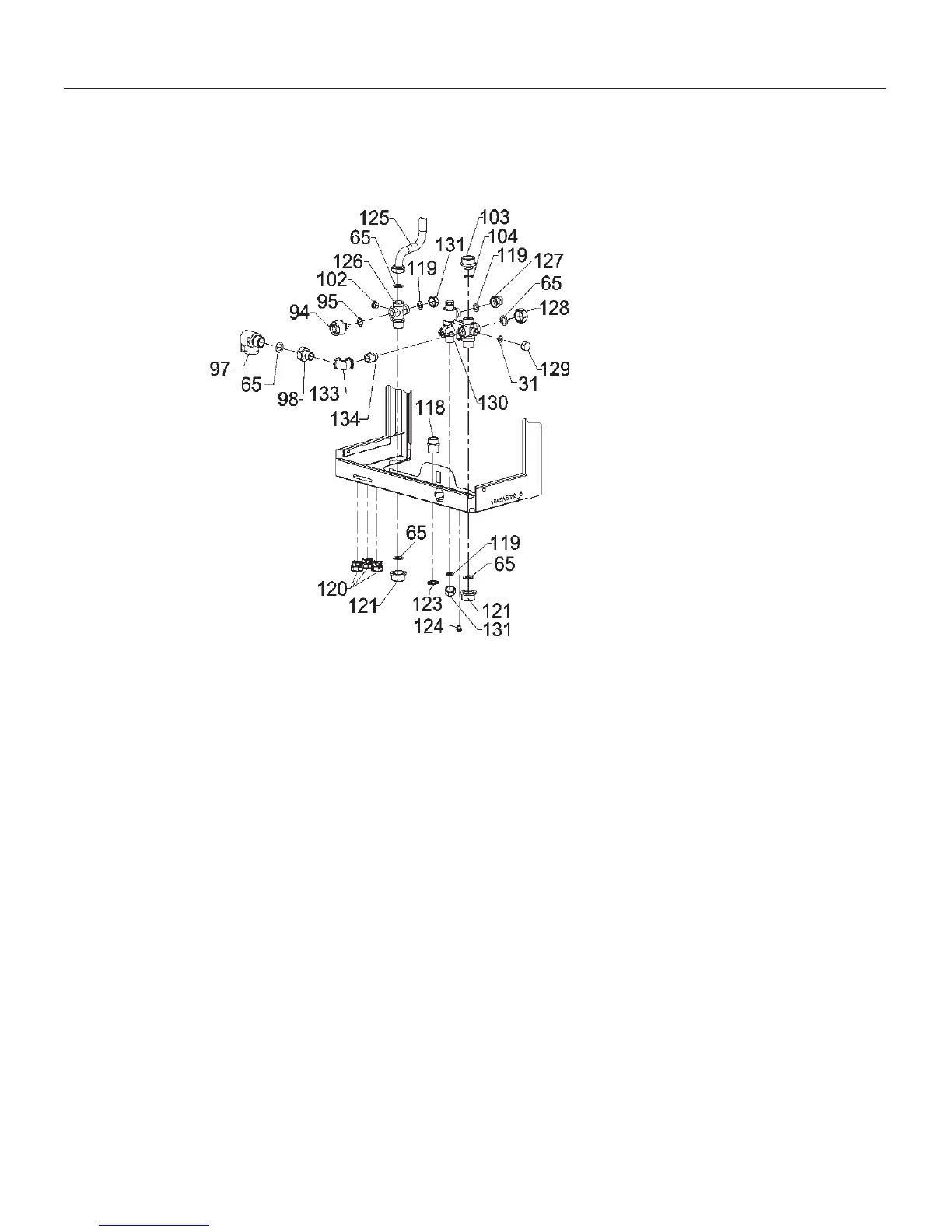

Bottom of the boiler for
45AN and 45AE models
15 - SPARE PARTS
