4 EMC VNXe3100/VNXe3150 — Replacing a Storage Processor
Tasks to replace an SP

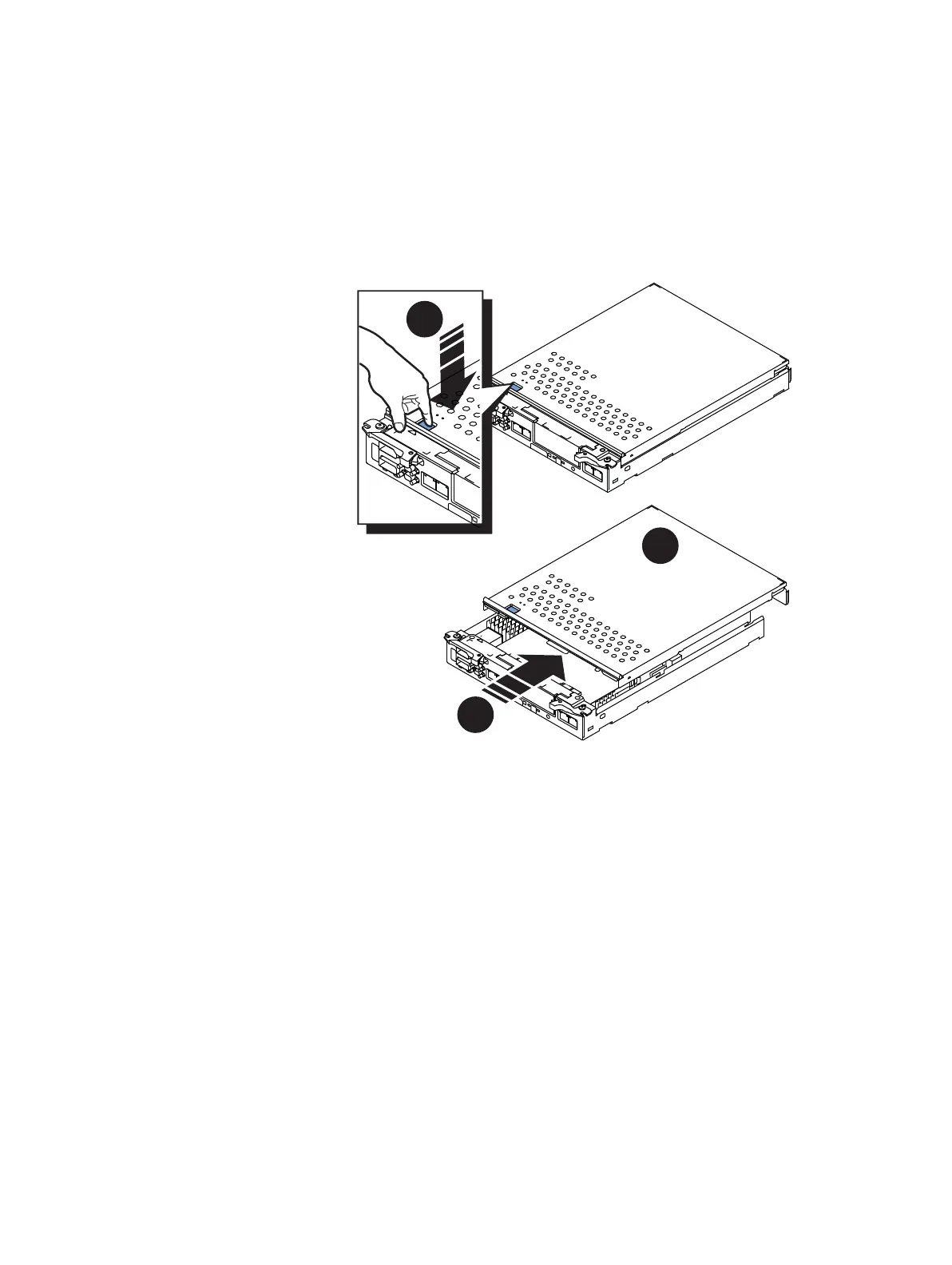

Task 3: Remove the SP top cover
Remove the SP cover from both the faulted SP and the replacement SP.
1. Press the blue button on the cover.
2. Push the cover straight back 1/4 inch.
3. Lift the cover up.
2
3
1
CL4683
