Tasks to replace an SP
EMC VNXe3100/VNXe3150 — Replacing a Storage Processor 5
Task 4: Transfer the memory modules

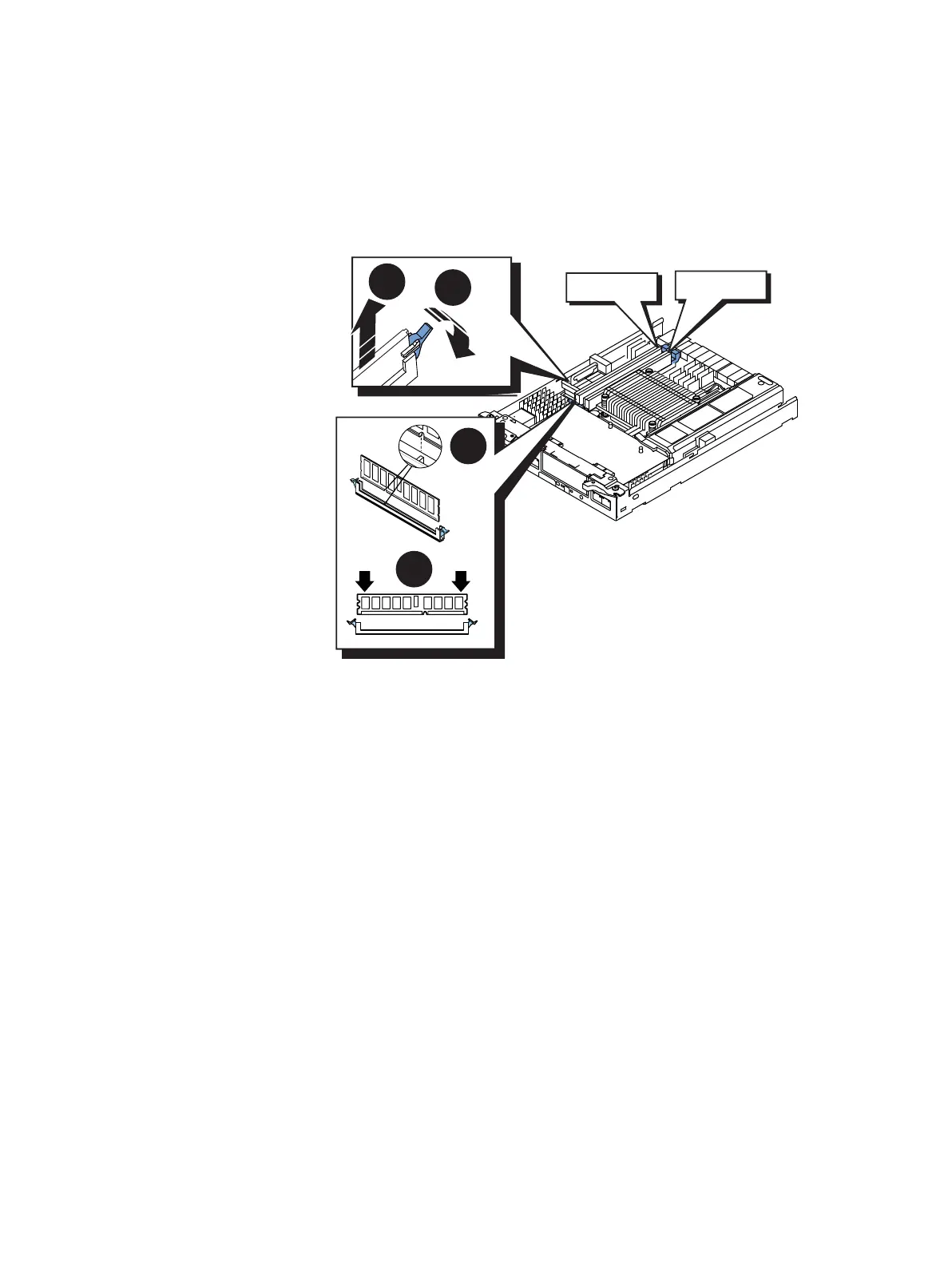

Remove the memory modules from the faulted SP and install them in the replacement SP:
1. Rotate the memory module latches outward to release the module from the socket.
2. Touching only the outside edges, pull the module directly out of the socket.
3. Handling only the outside edges of the module, align the module with the socket on
the replacement SP.
The socket and module are keyed to prevent incorrect alignment.
4. Firmly push the module directly into the socket.
The latches snap to the closed position when the module is fully inserted in its socket.
2
1
3
4
DIMM 0
DIMM 1
