Quick Installation Guide
00825-0100-4001, Rev BA
November 2002
Model 3051
STEP 1: MOUNT THE TRANSMITTER

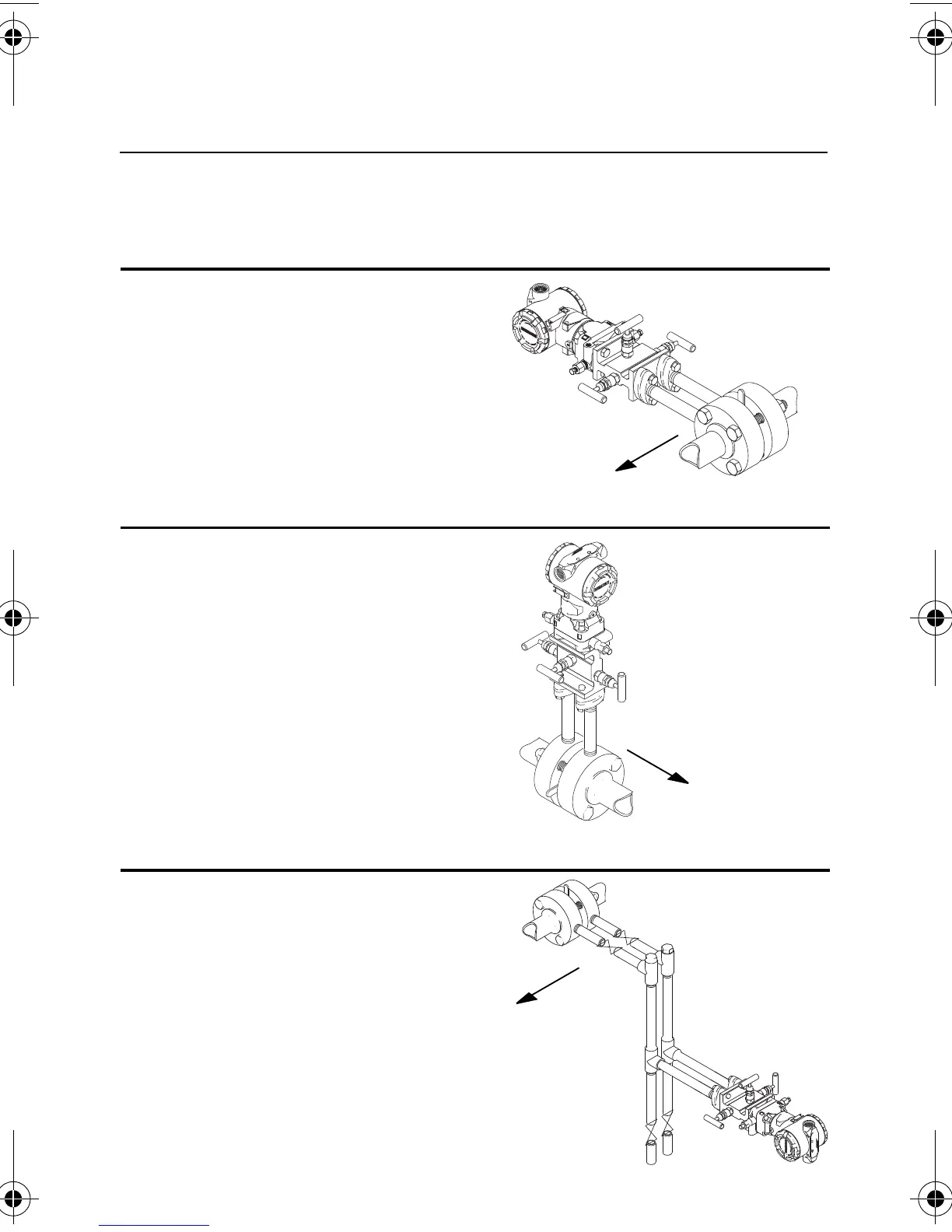

Liquid Flow Applications
1. Place taps to the side of the line.
2. Mount level or below the taps.
3. Mount the drain/vent valve
upward.
Gas Flow Applications
1. Place taps in the top or
side of the line.
2. Mount level or above the taps.
Steam Flow Applications
1. Place taps to the side of the line.
2. Mount level or below the taps.
3. Fill impulse lines with water.
Flow
Flow
Flow
