Quick Installation Guide
00825-0100-4001, Rev BA
November 2002
Model 3051
STEP 2: CONSIDER HOUSING ROTATION
STEP 3: SET THE JUMPERS
If alarm and security jumpers are not installed, the transmitter will
operate normally with the default alarm condition alarm high and the
security off.
Housing Rotation
To improve field access or to
better view the optional LCD
meter:
1. Loosen the housing rotation
set screw.
2. Turn the housing left or right up
to 180° from its original
position. Over rotating will
damage the transmitter.
3. Retighten the set screw.

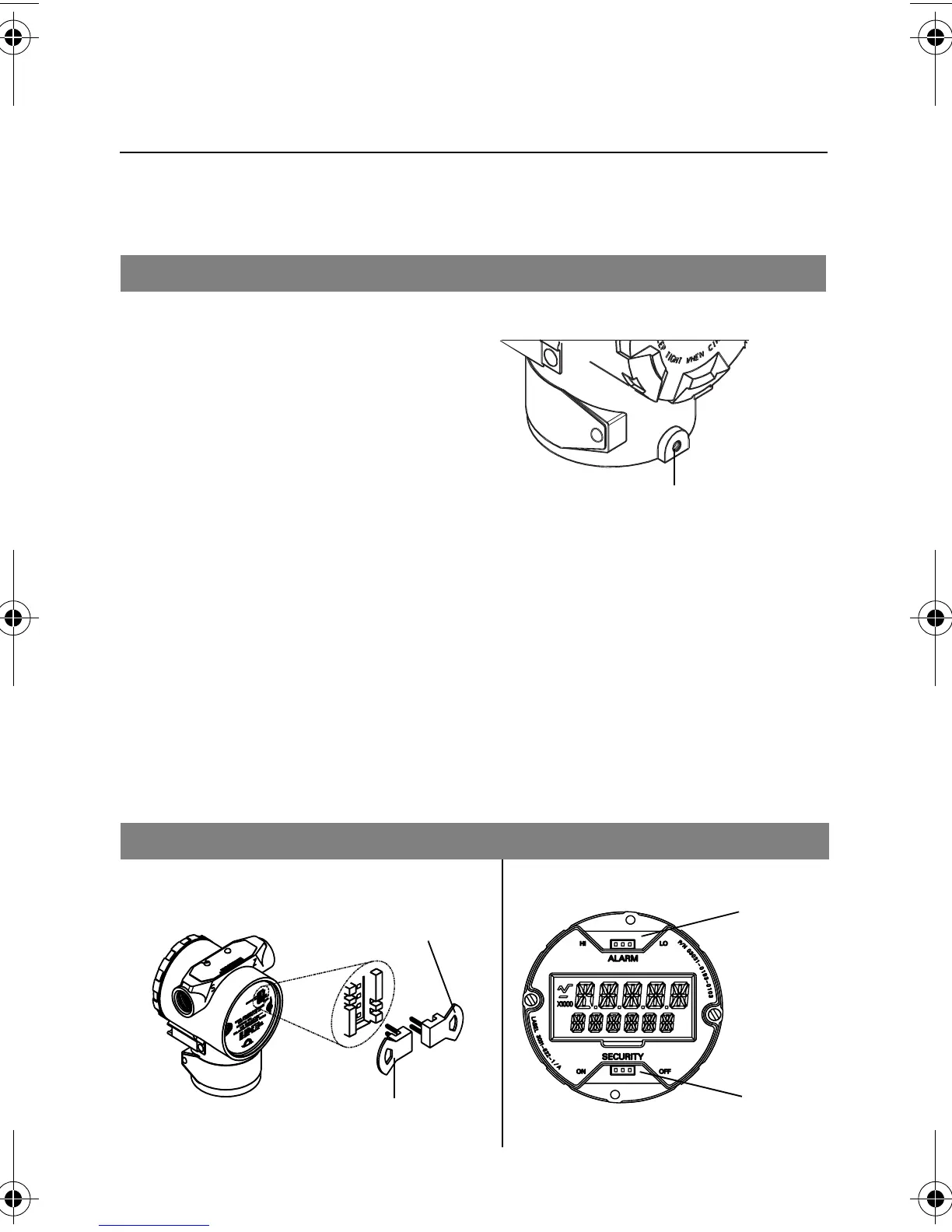

Figure 1. Transmitter Electronics Board
Without LCD Meter With LCD Meter
Housing Rotation Set
Screw (9/64-inch)
Alarm Jumper
Security
Alarm Jumper
Security
