Emerson 7400M Series - 1.3 Operator Control and Display Panel

02/02
12

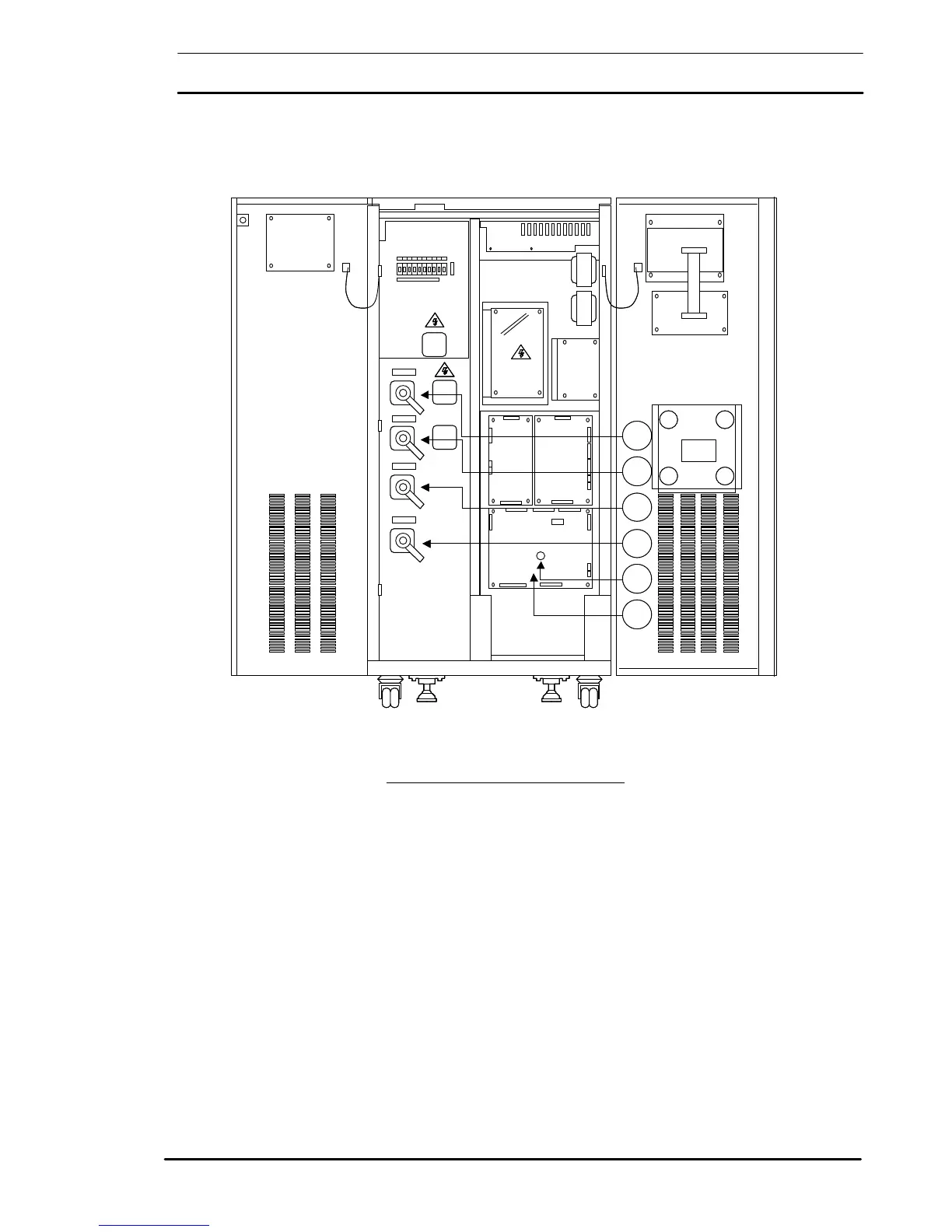

Figure 1-3: UPS Power Switch Locations
A = (Q1) Rectifier Input Power Switch
B = (Q2) Static Bypass Input Power Switch
C = (Q3) Maintenance Bypass Power Switch
D = (Q4) UPS Output Power Switch
1 = Reset Push-button
A
B
C
D
1
2
A
B
C
D
1
2
7400M
-
Series UPS User Manual
Single Module and 1+N Parallel System
