STEP 4. Wiring to the booster amplifier
Remote booster amplifier wiring
The remotely mounted booster amplifier is mounted up to 10 feet
(3 meters) from the sensor. See Figure 7.
• Provide 85-250 VAC of power.
• Figures 8 and 9 illustrate how to connect power-supply wiring.

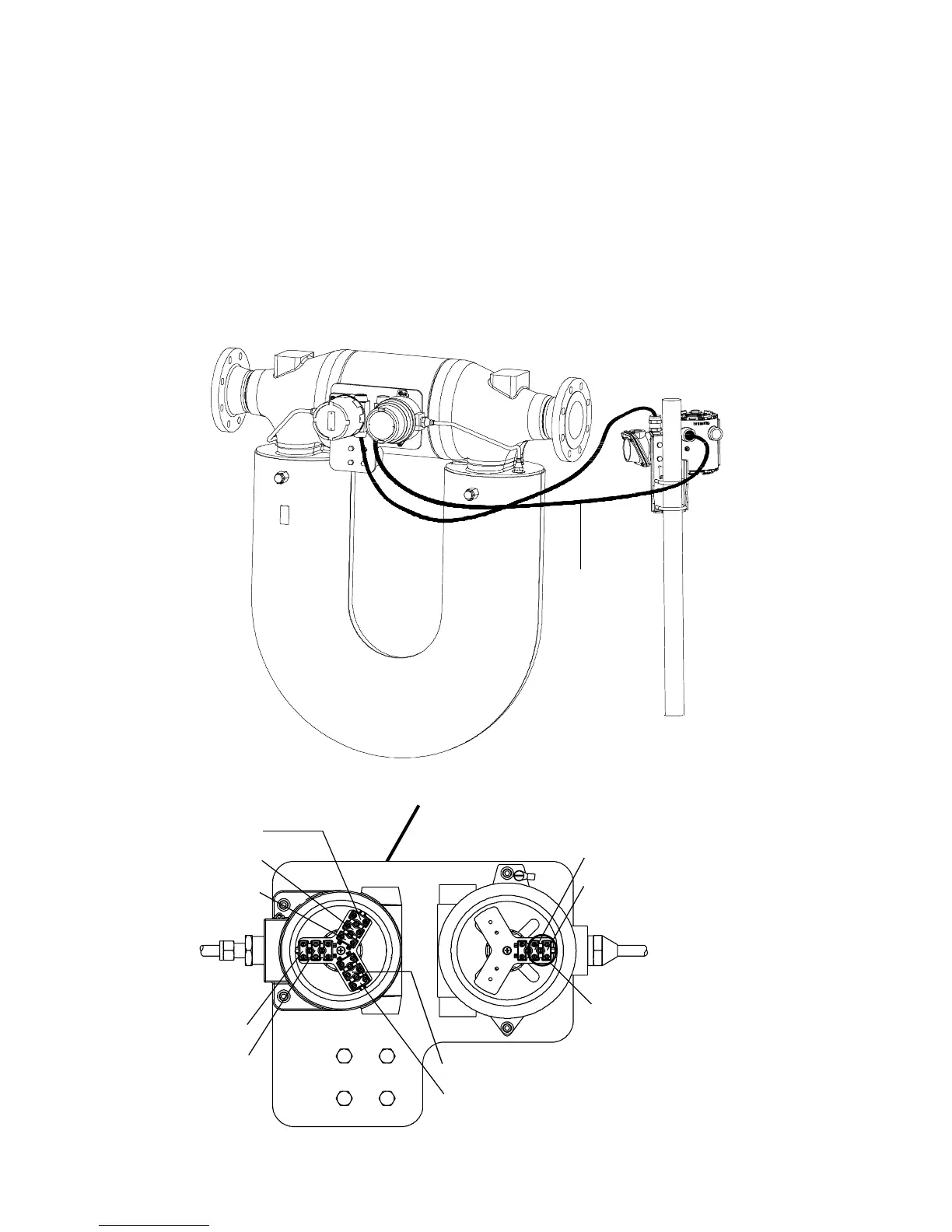

Figure 7. Wiring to remote booster amplifier
Match wire colors to the corresponding terminal wire colors from the
remote booster amplifier. Clip remaining wires and insulate
Customer
supplied
Install customer-supplied
drive wiring, 18 AWG
(0,75 mm
2
), from remote
booster amplifier
terminals 1 and 2 to
terminals 1 and 2 here
Violet
Yellow
Orange
Red (factory wired)
Brown (factory wired)
Blue
Gray
White
Green
To Next Page
