11

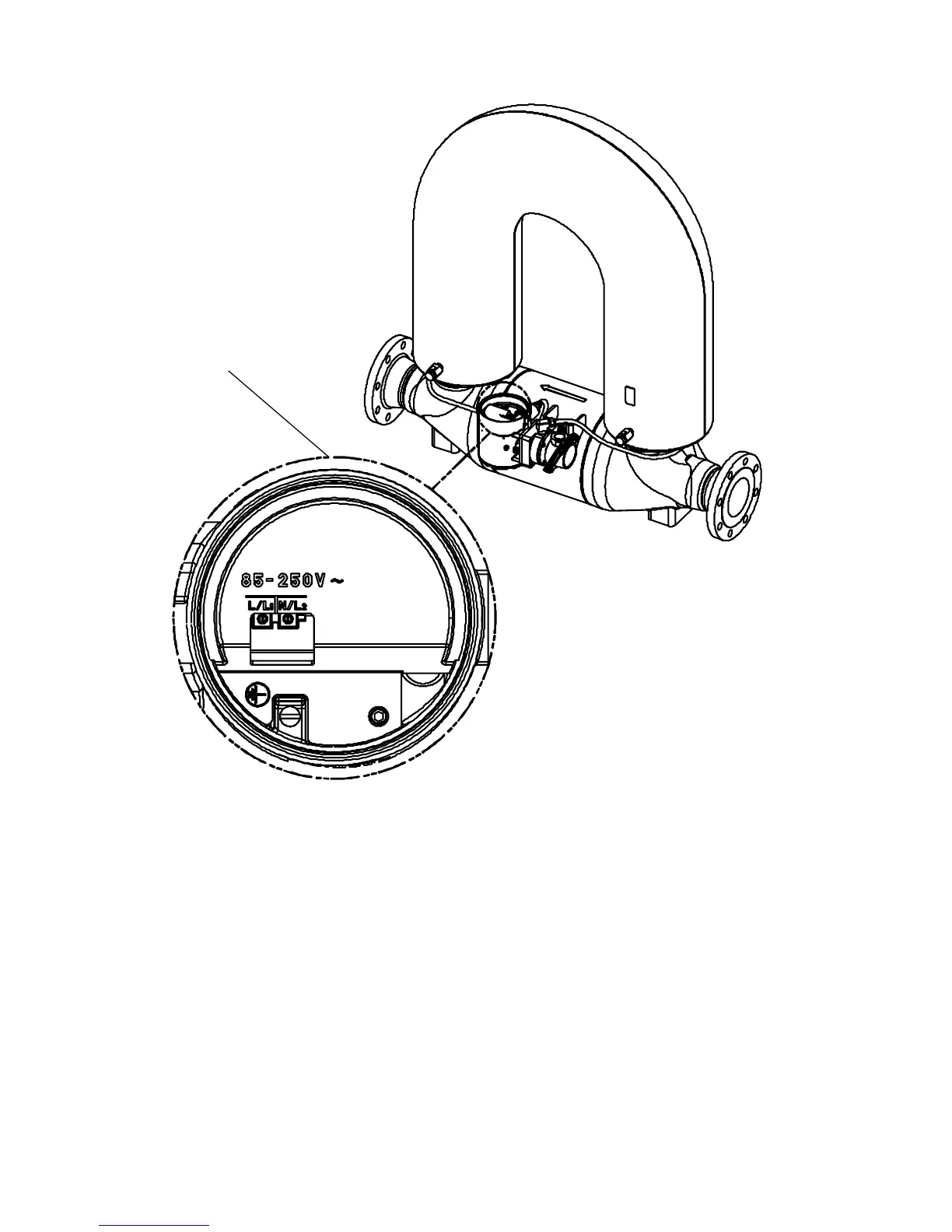

Figure 8. Power-supply wiring on integrally mounted booster amplifier
Provide 85-250 VAC of power
(View of top cover)
