7
Installation
The connector provided for the DeviceNet connection is keyed: VT (pin 5) and should be
wired to the keyed slot.

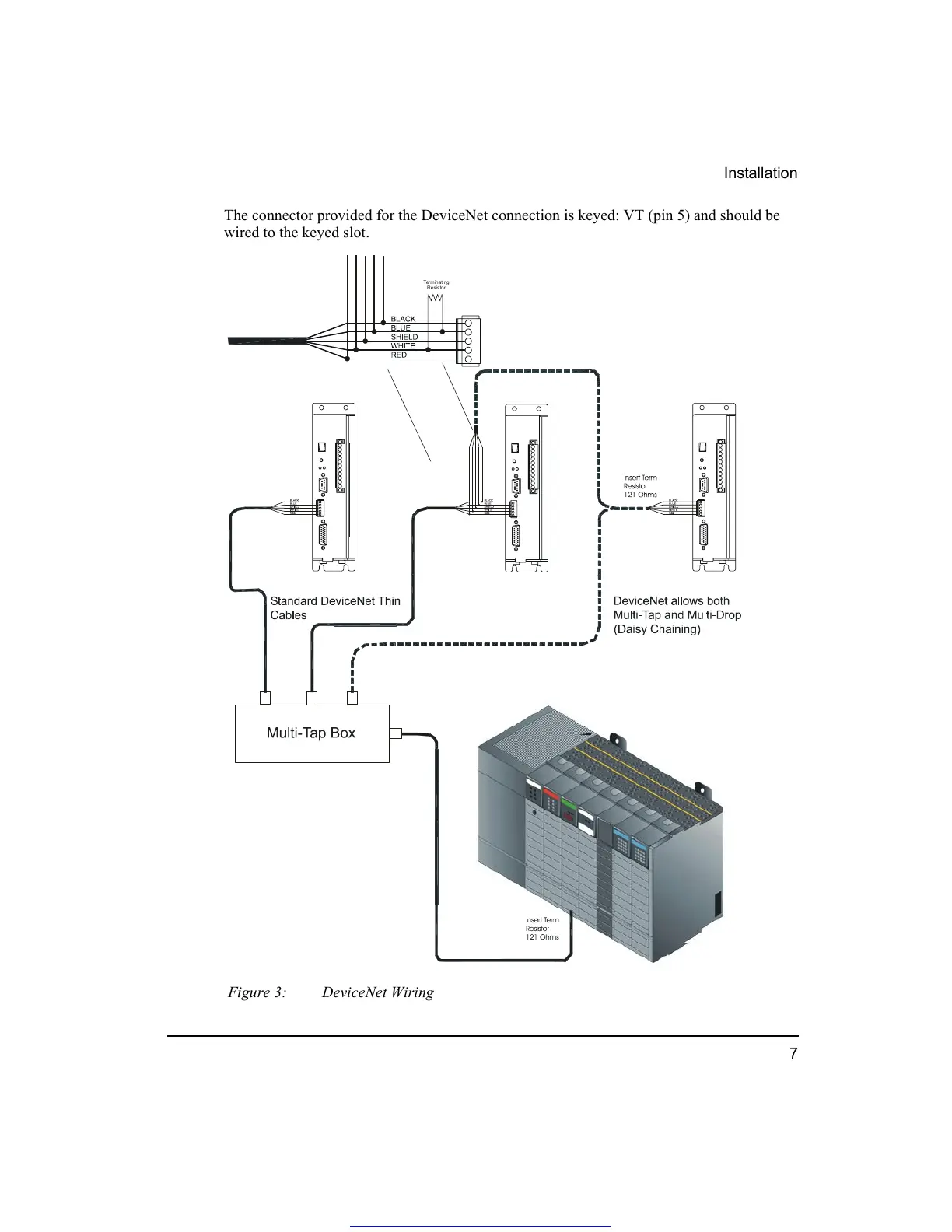

Figure 3: DeviceNet Wiring
Terminating
Resistor
