Epsilon Ei DeviceNet Drive Reference Manual

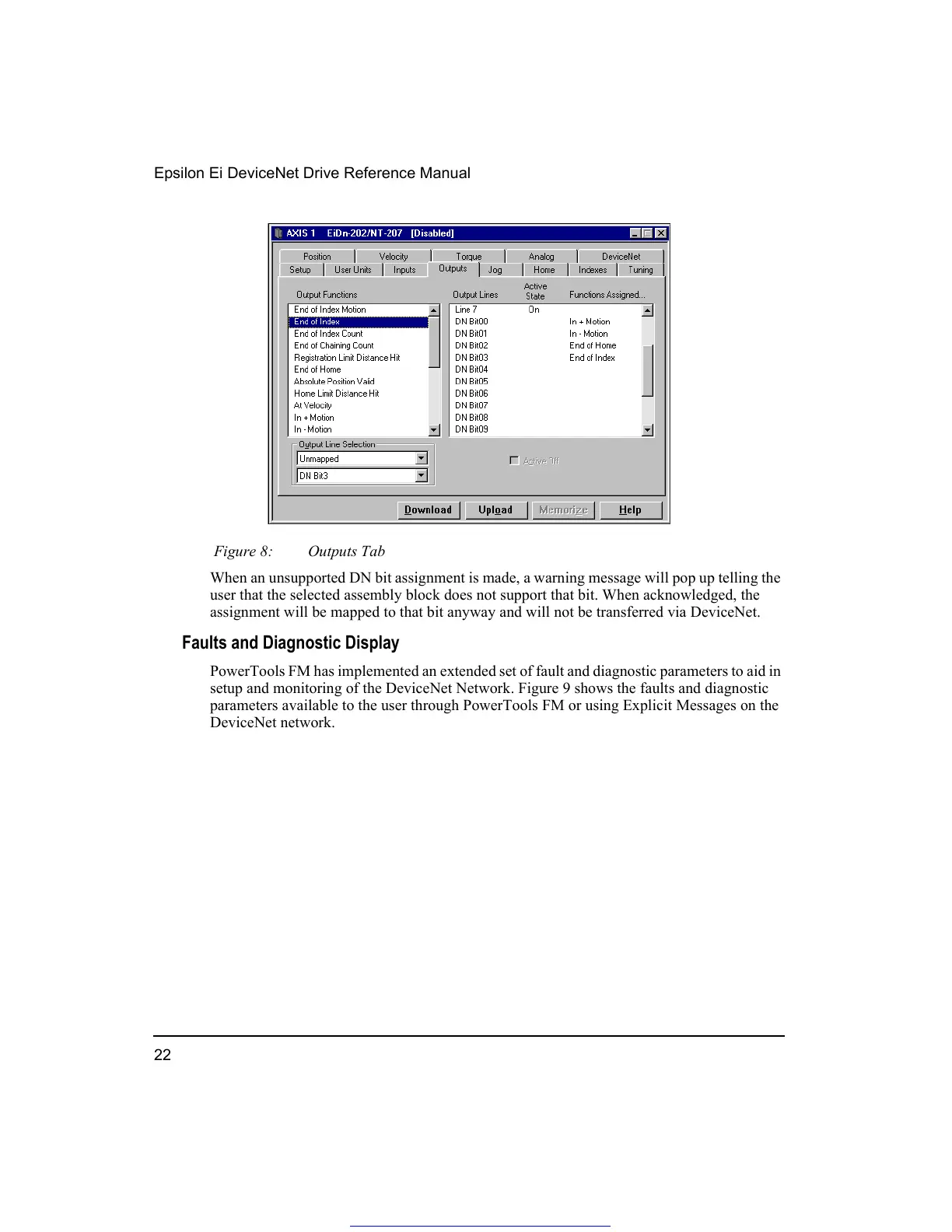

Figure 8: Outputs Tab
When an unsupported DN bit assignment is made, a warning message will pop up telling the
user that the selected assembly block does not support that bit. When acknowledged, the
assignment will be mapped to that bit anyway and will not be transferred via DeviceNet.
Faults and Diagnostic Display
PowerTools FM has implemented an extended set of fault and diagnostic parameters to aid in
setup and monitoring of the DeviceNet Network. Figure 9 shows the faults and diagnostic
parameters available to the user through PowerTools FM or using Explicit Messages on the
DeviceNet network.
