39
Network Configuration Quick Start

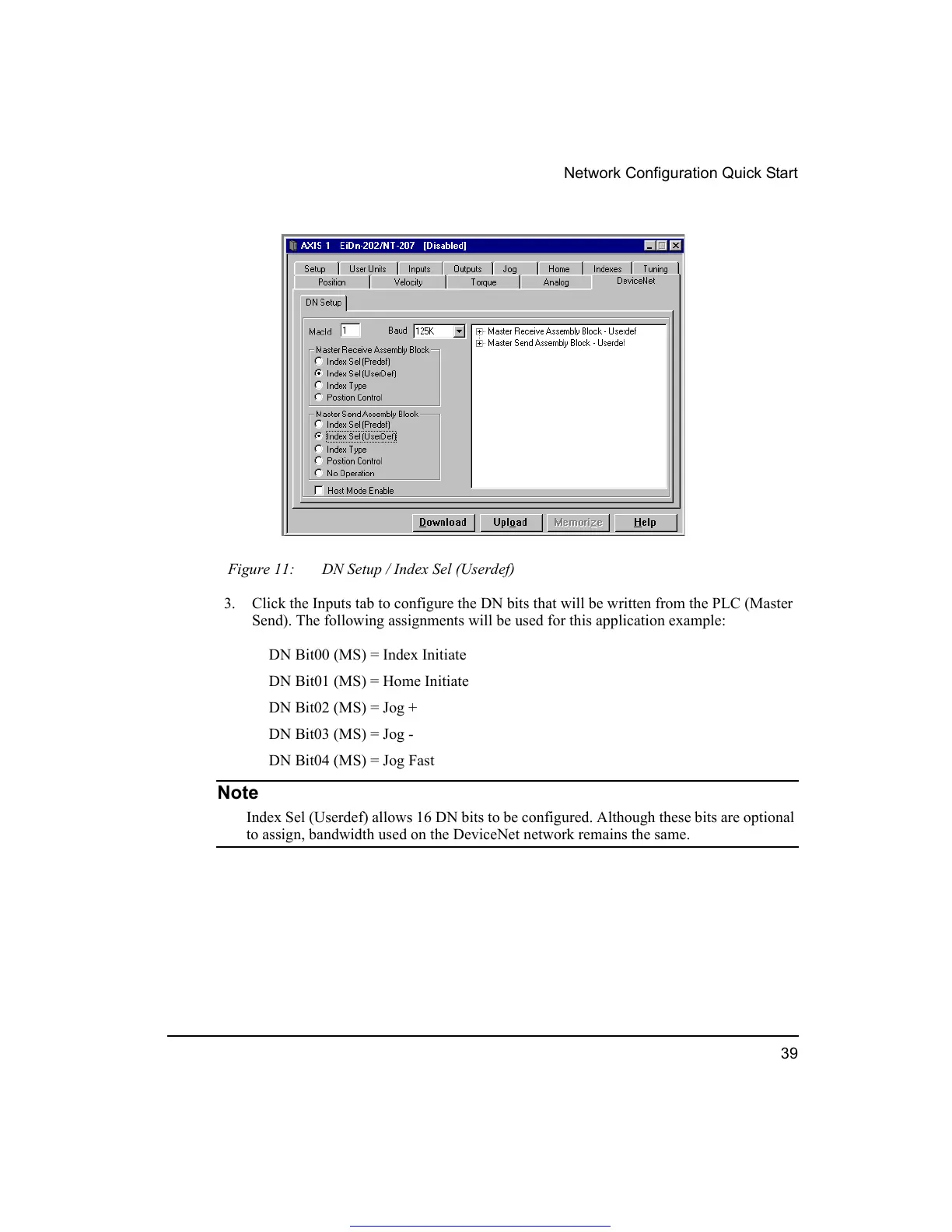

Figure 11: DN Setup / Index Sel (Userdef)
3. Click the Inputs tab to configure the DN bits that will be written from the PLC (Master
Send). The following assignments will be used for this application example:
DN Bit00 (MS) = Index Initiate
DN Bit01 (MS) = Home Initiate
DN Bit02 (MS) = Jog +
DN Bit03 (MS) = Jog -
DN Bit04 (MS) = Jog Fast
Note
Index Sel (Userdef) allows 16 DN bits to be configured. Although these bits are optional
to assign, bandwidth used on the DeviceNet network remains the same.
