Network Configuration Quick Start

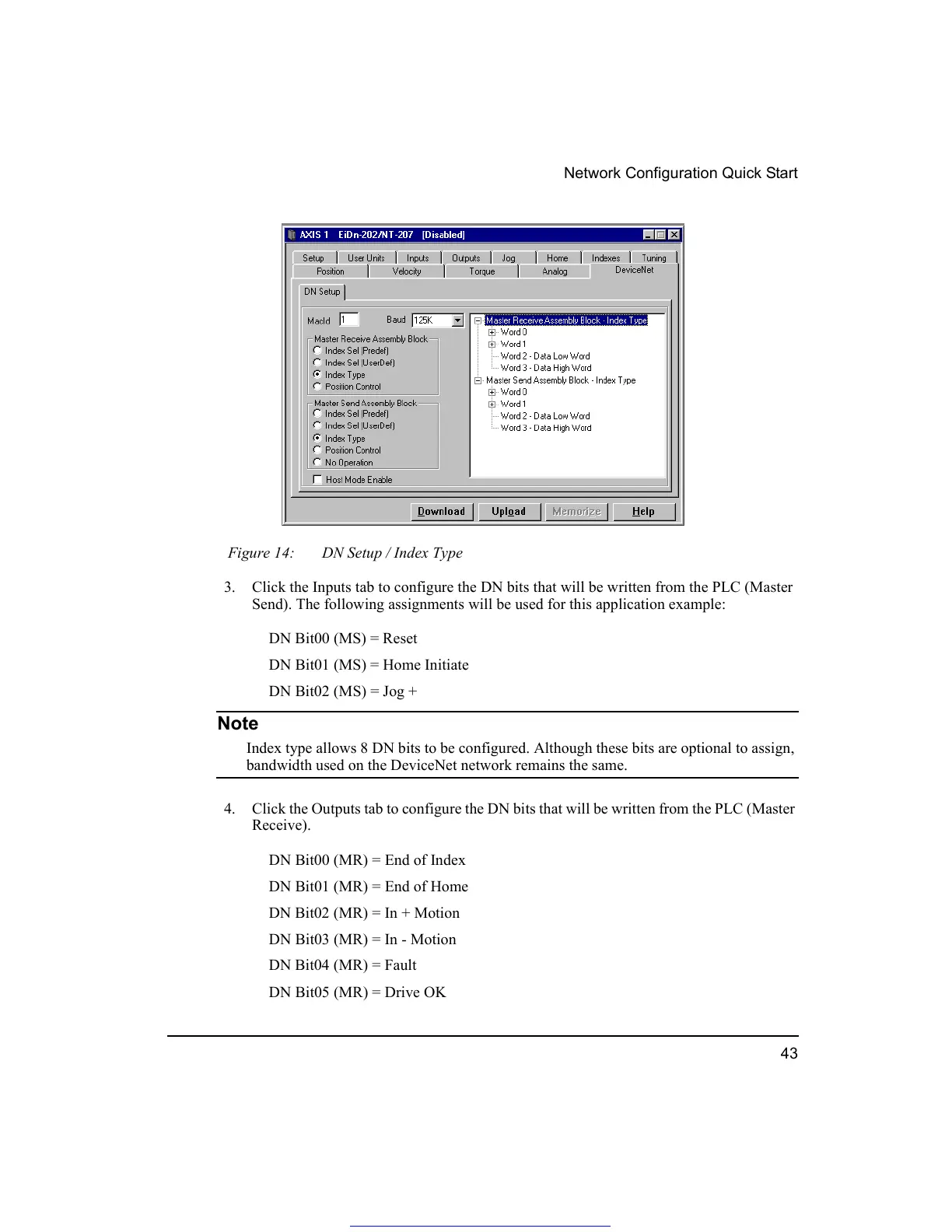

Figure 14: DN Setup / Index Type
3. Click the Inputs tab to configure the DN bits that will be written from the PLC (Master
Send). The following assignments will be used for this application example:
DN Bit00 (MS) = Reset
DN Bit01 (MS) = Home Initiate
DN Bit02 (MS) = Jog +
Note
Index type allows 8 DN bits to be configured. Although these bits are optional to assign,
bandwidth used on the DeviceNet network remains the same.
4. Click the Outputs tab to configure the DN bits that will be written from the PLC (Master
Receive).
DN Bit00 (MR) = End of Index
DN Bit01 (MR) = End of Home
DN Bit02 (MR) = In + Motion
DN Bit03 (MR) = In - Motion
DN Bit04 (MR) = Fault
DN Bit05 (MR) = Drive OK
