 Inside delta installation, externally bypassed
Non-bypassed models have dedicated bypass terminals, which allow the Digistart IS to continue providing protection and monitoring
functions even when bypassed via an external bypass contactor. The bypass contactor must be connected to the bypass terminals
and controlled by the soft starter's run output (terminals COM2, RLO2).

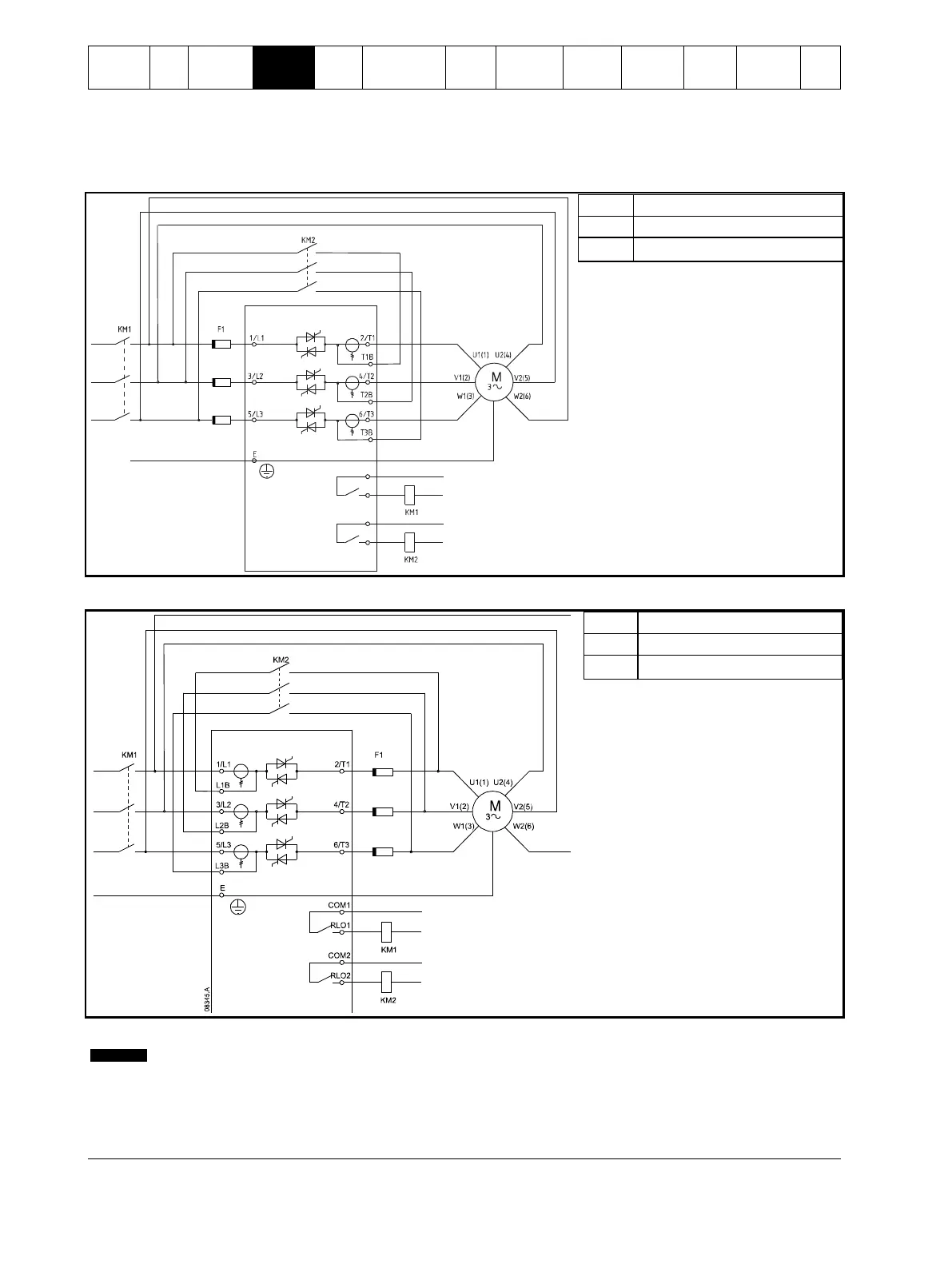

Figure 4-12 Power connections - inside delta installation, externally bypassed (IS3x0255N)
13037.A
COM1
COM2
RLO2
RLO1
KM1
Main contactor
KM2
Bypass contactor (external)
F1
Semiconductor fuses (optional)
Figure 4-13 Power connections - inside delta installation, externally bypassed (IS4x0360N to IS561600N)
KM1
Main contactor
KM2
Bypass contactor (external)
F1
Semiconductor fuses (optional)
NOTE
The bypass terminals on IS3x0255N are T1B, T2B, T3B. The bypass terminals on IS4x0360N to IS561600N are L1B,
L2B, L3B.
The fuses can be installed on the input side if required.
