Emerson Dixell XC15CX - High Voltage Power Supply Model Wiring (110;230 VAC)

1592001530 XC15-35CX EN r1.2 11.04.2017 XC15-35CX 10/40

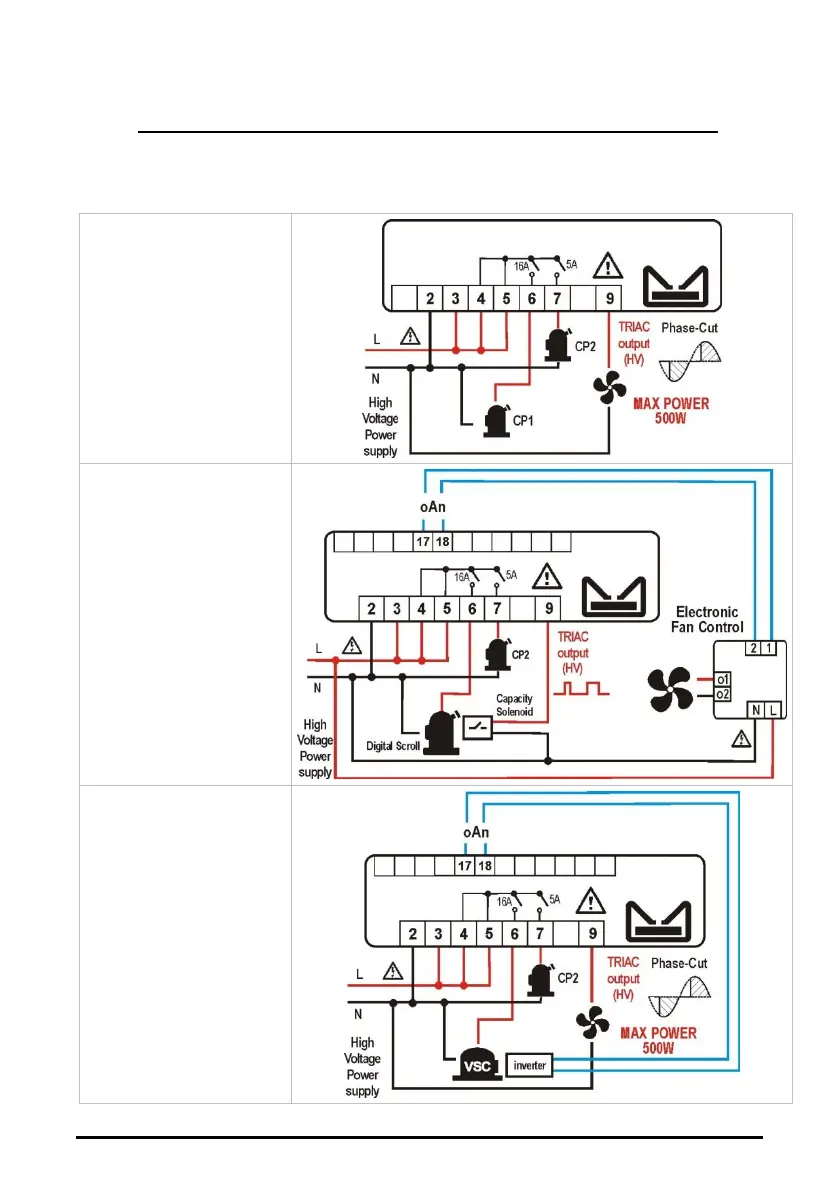

4.6.1 HIGH VOLTAGE POWER SUPPLY MODEL (110 O 230VAC)
!!! WARNING: oA3 (TRIAC) OUTPUT is internally connected to the power supply line. DO
NOT CONNECT LOW VOLTAGE LOADS !!!
Loads:
 2 Compressors ON-OFF
type
 1 Ventilator controlled in
phase-cut mode
Loads:
 1 Digital scroll compressor
 1 Compressor ON-OFF
type
 1 Electronic ventilator
Load:
 1 inverter-controlled
compressor
 1 Compressor ON-OFF
type
 1 Ventilator controlled in
phase-cut mode
