5 Valve Connections
Pay attention to the following table for a quick reference on the connection mode for valves of different
manufacturers:
4 WIRES VALVES (BIPOLAR)
5-6 WIRES VALVES (UNIPOLAR)
Connection Numbering ALCO EX*
ALCO EX5/6 SPORLAN SEI-SHE DANFOSS ETS
4 White
Blue White Black
2 Yellow
Brown Black White
3 Brown
Black Red Red
1 Green
White Green Green
5 - Common ----
---- ---- ----
Connection Numbering SPORLAN
SAGINOMIYA
4 Orange Orange
2 Red Red
3 Yellow Yellow
1 Black Black
5 - Common Gray Gray

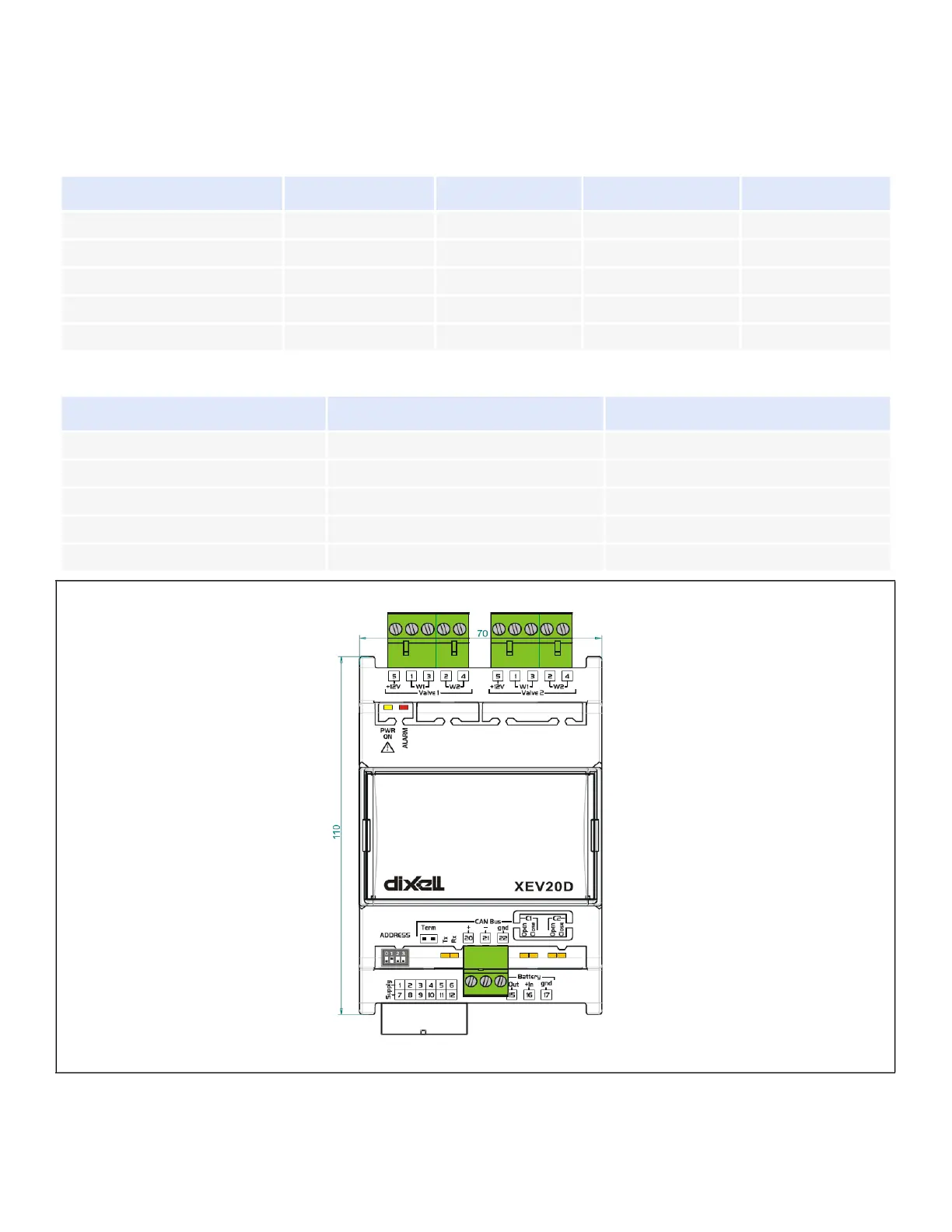

Figure 5-1 - XEV20D Device
