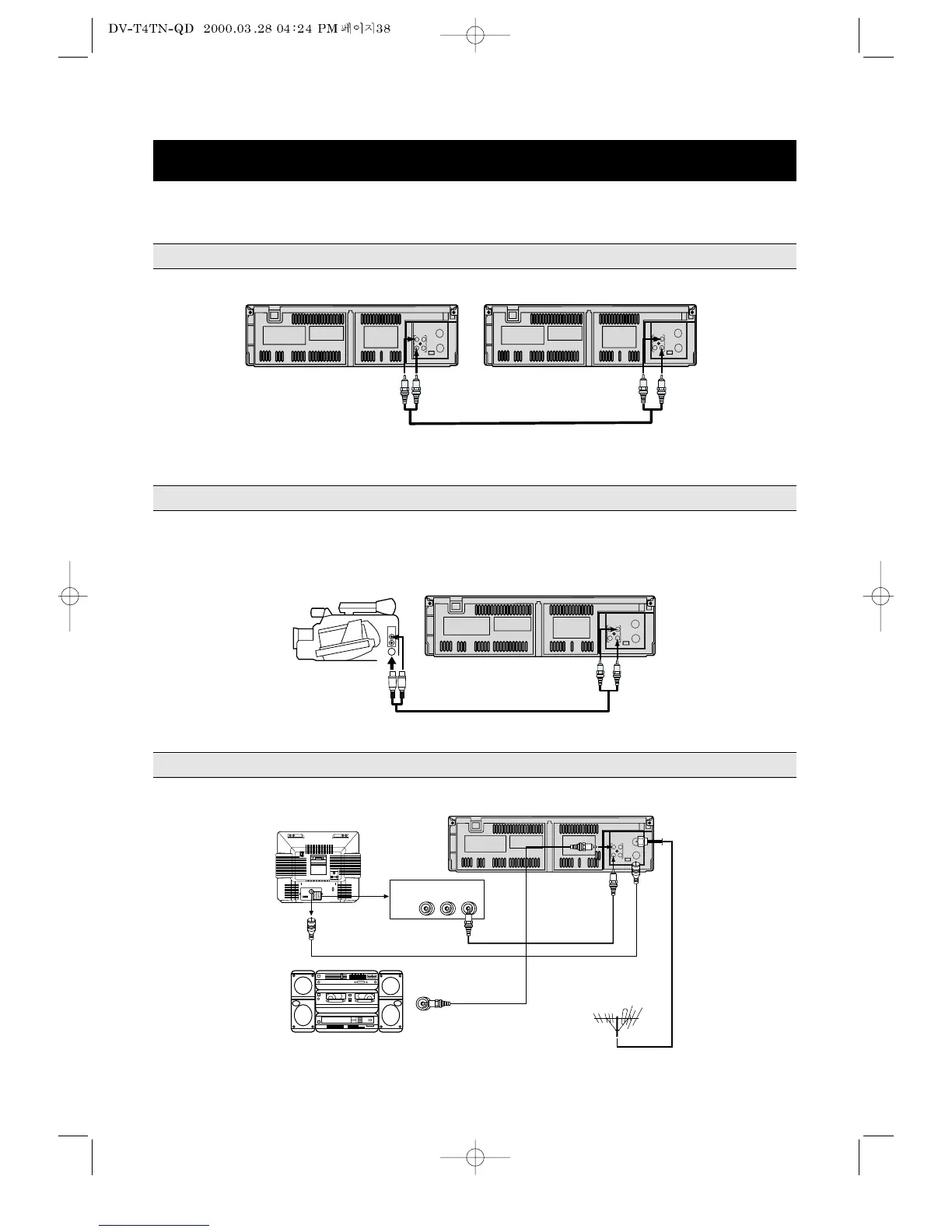

DUPLICATING A VIDEO TAPE
If you connect the VCR to another VCR or camcorder, you can duplicate a previously recorded cassette.
Make all connections before turning on the power. Be sure to press the INPUT key on the recording VCR.
For duplicating a previously recorded tape from a camcorder, follow the camcorder manufacturer's instruc-
tions. A typical dubbing hookup is shown below. Be sure to press the INPUT key.
CONNECTION TO ANOTHER VCR
38
PLAYBACK VCR RECORDING VCR
VIDEO
OUT
AUDIO
OUT
VIDEO
IN
AUDIO
IN
AUDIO/VIDEO cord ( Not Supplied)
RF OUT
ANT. IN
RF OUT
ANT. IN
OUT
IN
VIDEO
AUDIO
CH
3
4
OUT
IN
VIDEO
AUDIO
CH
3
4
CONNECTION TO A CAMCORDER
PLAYBACK CAMCORDER
AV/OUT
AUDIO/VIDEO cord (Not Supplied)
RECORDING VCR
VIDEO
IN
AUDIO
IN
RF OUT
ANT. IN
OUT
IN
VIDEO
AUDIO
CH
3
4
CONNECTION TO A AUDIO SYSTEM
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PRESONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
2018 1614 1210 86 4 3
2119 1715 1311 97 5 31
INPUT
AUDIO
(L) (R)
VIDEO
(L)
VIDEO
OUT
RF OUT
ANT. IN
AUDIO
OUT
OUT
IN
VIDEO
AUDIO
CH
3
4
