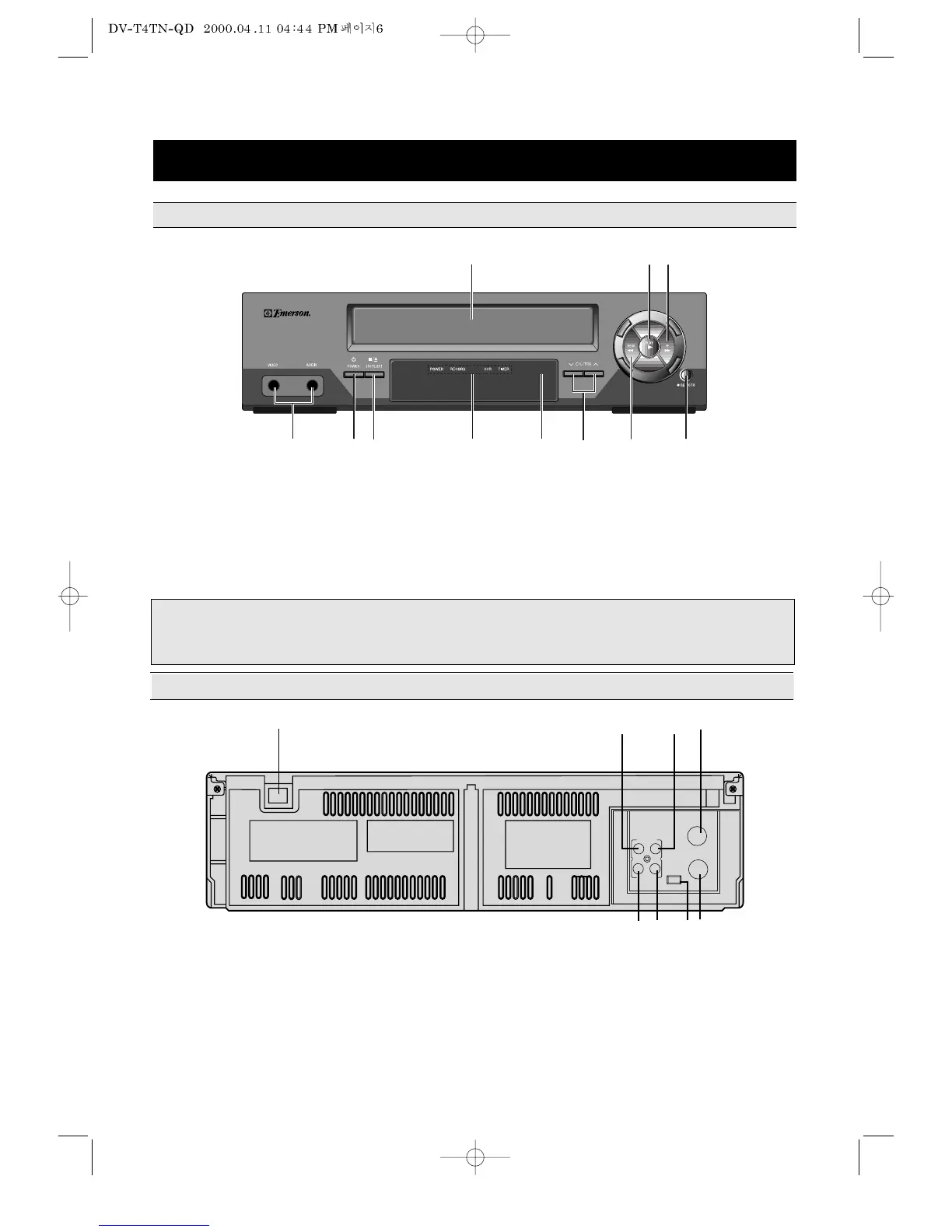

LOCATION OF CONTROLS
FRONT OF VCR
6
8
5
11
9
10
1
2
3
4
6
7
RF OUT
ANT. IN
OUT IN
VIDEO
AUDIO
CH
3
4
1 FRONT AV JACK
2 POWER KEY
3 STOP/EJECT KEY
4 DISPLAY PANEL
5 REMOTE SENSOR
6 CH /TRACKING KEY
7 REWIND/REVIEW KEY
8 RECORD/OTR KEY
9 FAST FORWARD/CUE KEY
10 PLAY/PAUSE KEY
11 CASSETTE COMPARTMENT
1 AC POWER CORD
2 VIDEO OUT JACK
3 VIDEO IN JACK
4 ANTENNA INPUT
5 AUDIO OUT JACK
6 AUDIO IN JACK
7 CHANNEL SELECTION SWITCH
8 RF OUTPUT
REAR OF VCR
1
3
4
5
2 7
8
NOTES:
• To use the Front AV jack, check the ‘Video2’ is displayed on the TV screen by pressing the INPUT key,
after connecting the Front AV jack to Camcoder or another VCR.
6
