Emerson Fisher FIELDVUE DVC6000 HW2 - Page 93

Instruction Manual
D103785X012
Parts
June 2017
93

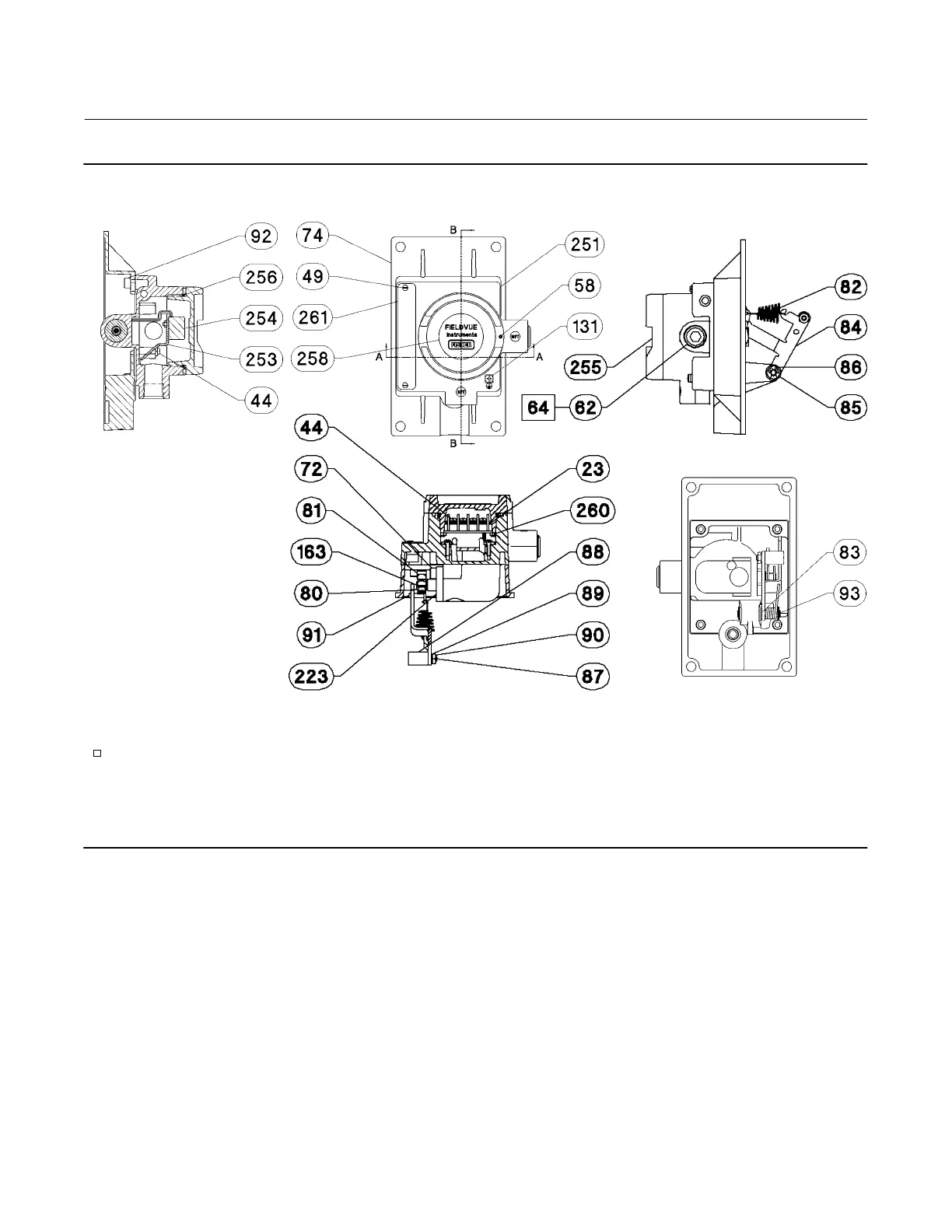

Figure 7‐5. FIELDVUE DVC6025 Remote Feedback Unit Assembly
49B7987-A
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
APPLY LUB, SEALANT, THREAD LOCK
SECTION A-A
SECTION B-B
