Emerson Fisher FIELDVUE DVC6000 HW2 - Page 92

Instruction Manual
D103785X012
Parts
June 2017
92

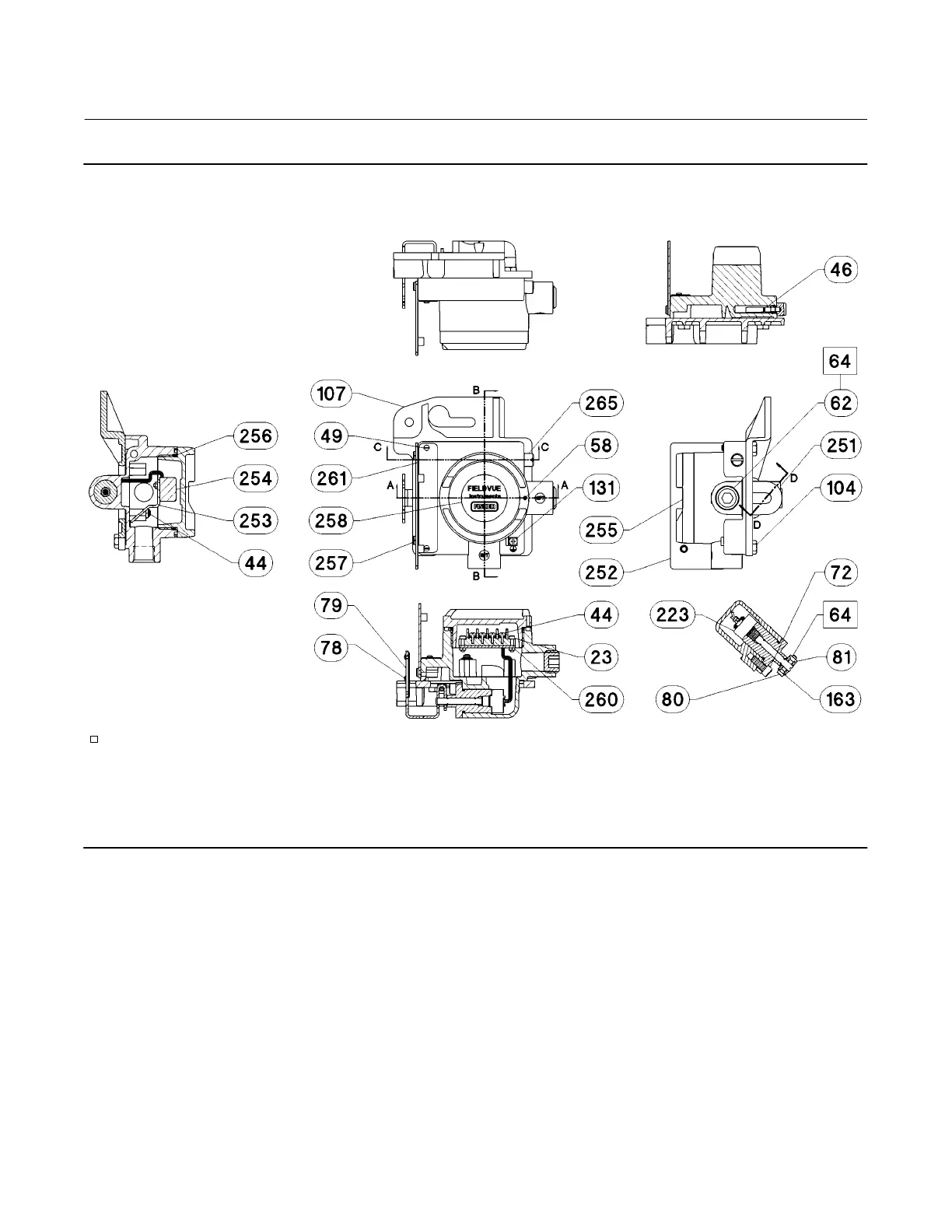

Figure 7‐4. FIELDVUE DVC6015 Remote Feedback Unit Assembly
APPLY LUB, SEALANT
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
49B7986-A
SECTION A-A
SECTION B-B
SECTION D-D
SECTION C-C
