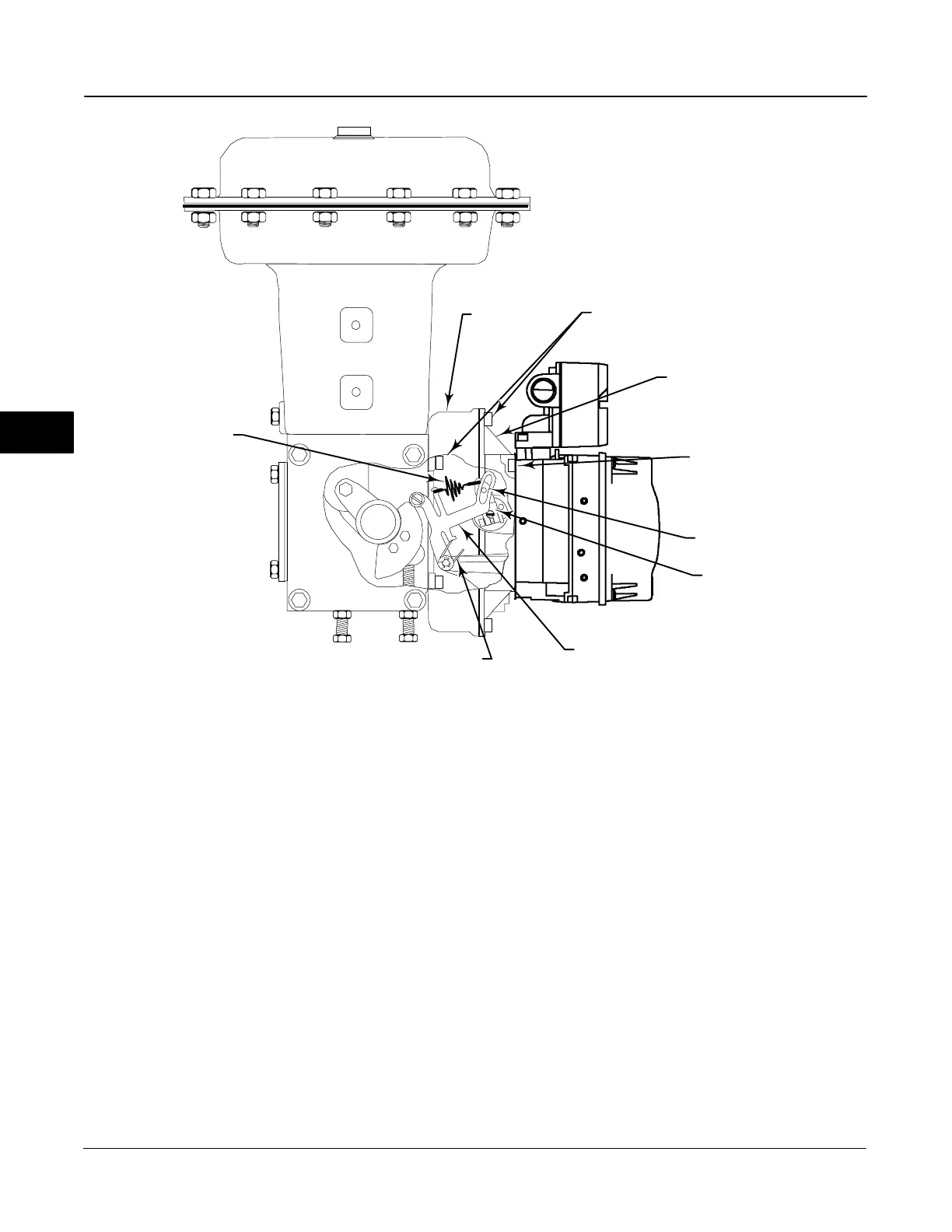

Figure 5-5. FIELDVUE DVC6020f Digital Valve Controller Mounted on Fisher 1052, Size 33 Actuator
MOUNTING
ADAPTER
(KEY 117)
FEEDBACK ARM ASSEMBLY
(KEY 84)
FEEDBACK ARM
TORSION SPRING
(KEY 93)
BIAS SPRING
(KEY 82)
ARM ASSEMBLY PIN
ARM ASSEMBLY
(KEY 91)
MOUNTING BRACKET
(KEY 74)
CAP SCREW, HEX SOCKET
(KEY 116)
CAP SCREW, HEX HEAD
(KEY 92)
A7024 -2/ IL
Pressure A Calibration
(TB > Configure/Setup > Calibration > Press A)
For a Zero Only calibration, select Zero only and
follow the prompts on the Field Communicator.
To do a Zero and Span calibration on the pressure A
sensor, connect an external reference gauge to
pressure A. The gauge should be capable of
measuring maximum instrument supply pressure.
Select Zero and Span and follow the prompts on the
Field Communicator.
When finished place the Transducer Block Mode in
Auto. Verify that the displayed pressure matches the
measured output pressure.
Pressure B Calibration
(TB > Configure/Setup > Calibration > Press B)
For a Zero Only calibration, select Zero only and
follow the prompts on the Field Communicator.
To do a Zero and Span calibration on pressure sensor
B, connect an external reference gauge pressure
sensor B. The gauge should be capable of measuring
maximum instrument supply pressure. Select Zero
and Span and follow the prompts on the Field
Communicator.
When finished place the Transducer Block Mode in
Auto. Verify that the displayed pressure matches the
measured output pressure.
