Emerson Fisher FIELDVUE DVC6000f - Page 321

Loop Schematics/Nameplates
December 2009
B-15
GE42990−A
Sheets 6 and 7 of 8
SEE NOTES IN FIGURE B-15
1
1
1
1
1

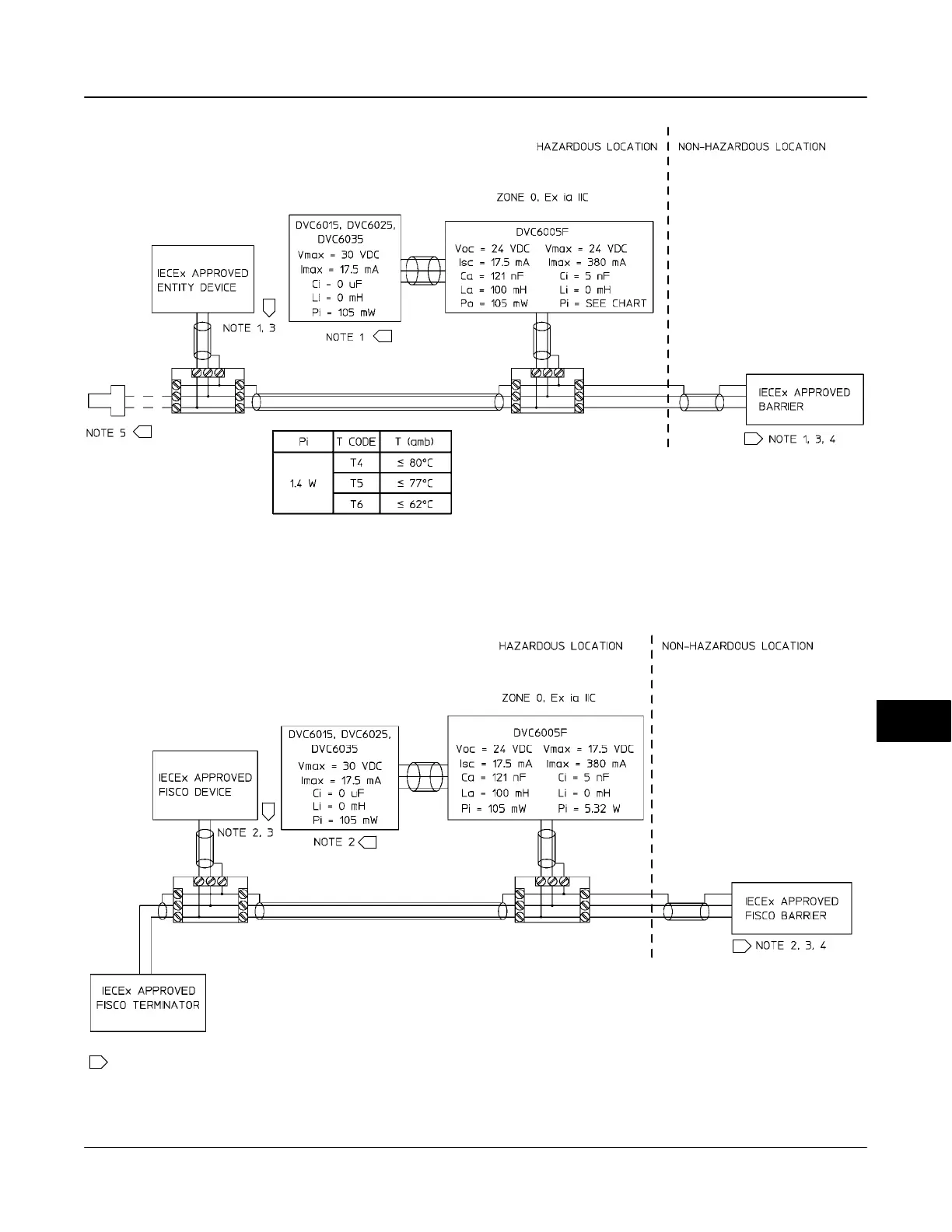

Figure B-17. IECEx Loop Schematics for DVC6005f with DVC6015, DVC6025, and DVC6035
FISCO DEVICE
ENTITY DEVICE
1
1
1
B
