Installation Instructions
3

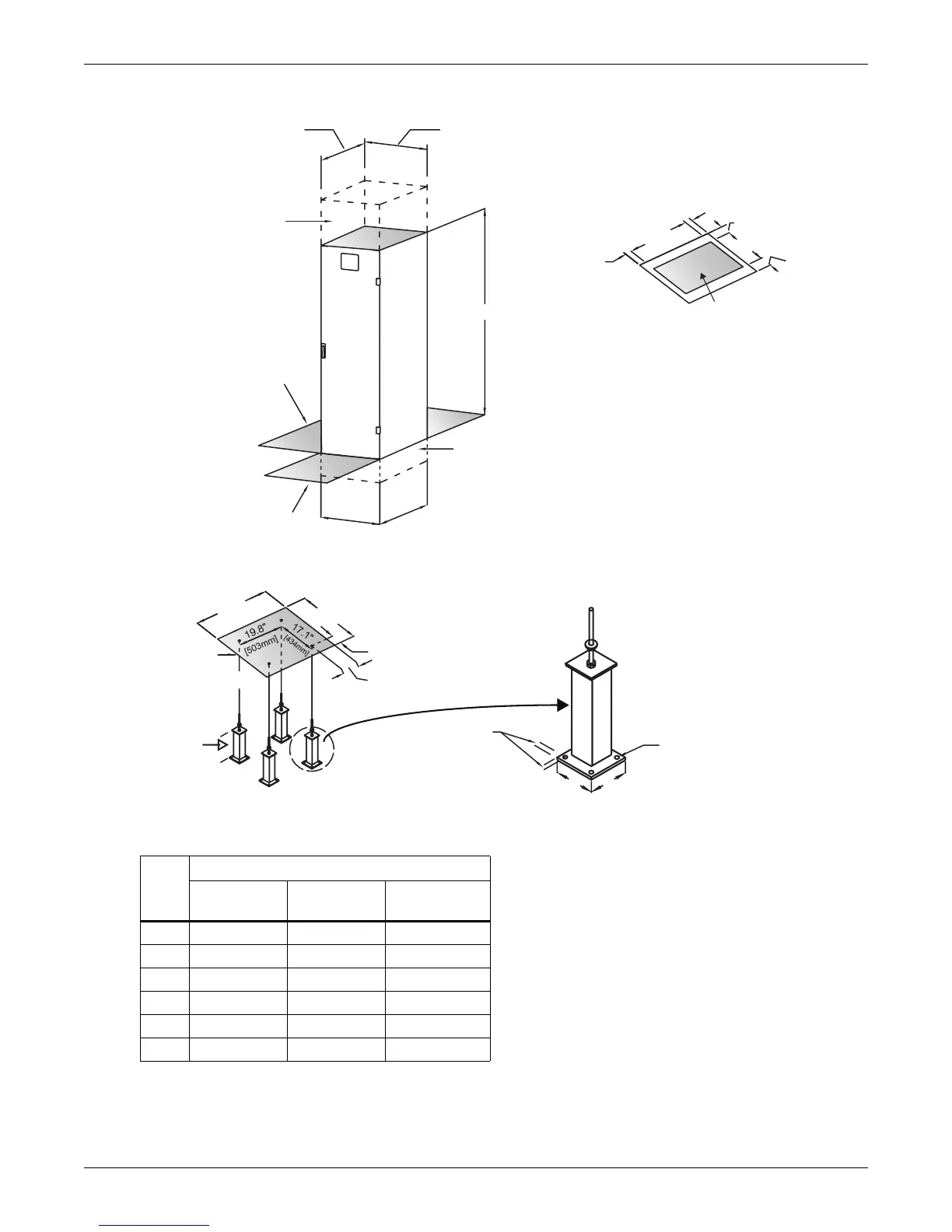

Figure 1 Typical cabinet and floor planning dimension data, 23" (584mm) cabinet, 15-125 kVA
Table 1 23-inch cabinet weight
Unit
kVa
Weight, lb (kg)
60Hz 50Hz
Without
Transformer
15 1010 (458) 1060 (480) 750 (340)
30 1090 (494) 1140 (517) 750 (340)
50 1160 (526) 1235 (560) 750 (340)
75 1350 (612) 1450 (658) 800 (363)
100 1540 (699) 1665 (755) 800 (363)
125 1650 (748) 1775 (805) 800 (363)
Overall Dim.
39-1/2" (1003mm)
Including hinge
and bezel
projection
Overhead clearance
of 18" (457mm)
recommended
for cooling airflow
Minimum side
clearance of 42" (1067mm)
recommended for service access
if unit is equipped with
distribution monitoring option
Shaded areas indicate
recommended clearance
of 42" (1067mm) at front and
rear for service access
For units with bottom
cable access, clearance
of 6" (152mm) below
unit is recommended
for cooling airflow
and cable entry/exit
Dia. location
3/4" (19mm)
typical
Floor Pedestals
available from
6" (152mm) to 18"
(457mm)
.56" (14mm)
diameter; 4 holes
typical
6" (152mm) 6" (152mm)
23-1/2"
(597mm)
36.4"
(925mm)
Unit Base Outline
Unit Base Outline
Optional Floor Pedestals
Shaded area indicates
cable access and
cooling airflow
Footprint and Floor
Cutout Dimensions
36.4" (925mm)
78-1/2" (1995mm)
Front
Front
23-1/2" (597mm)
1.2"
(30mm)
1.2"
(30mm)
Overall Dimension
25.2" (640mm)
including side
panels
34" (864mm)
6"
(152mm)
11-1/2" (292mm)
6" (152mm)
3.2" (81mm)
8.3"
(211mm)
Cabinet Dimensional Data
