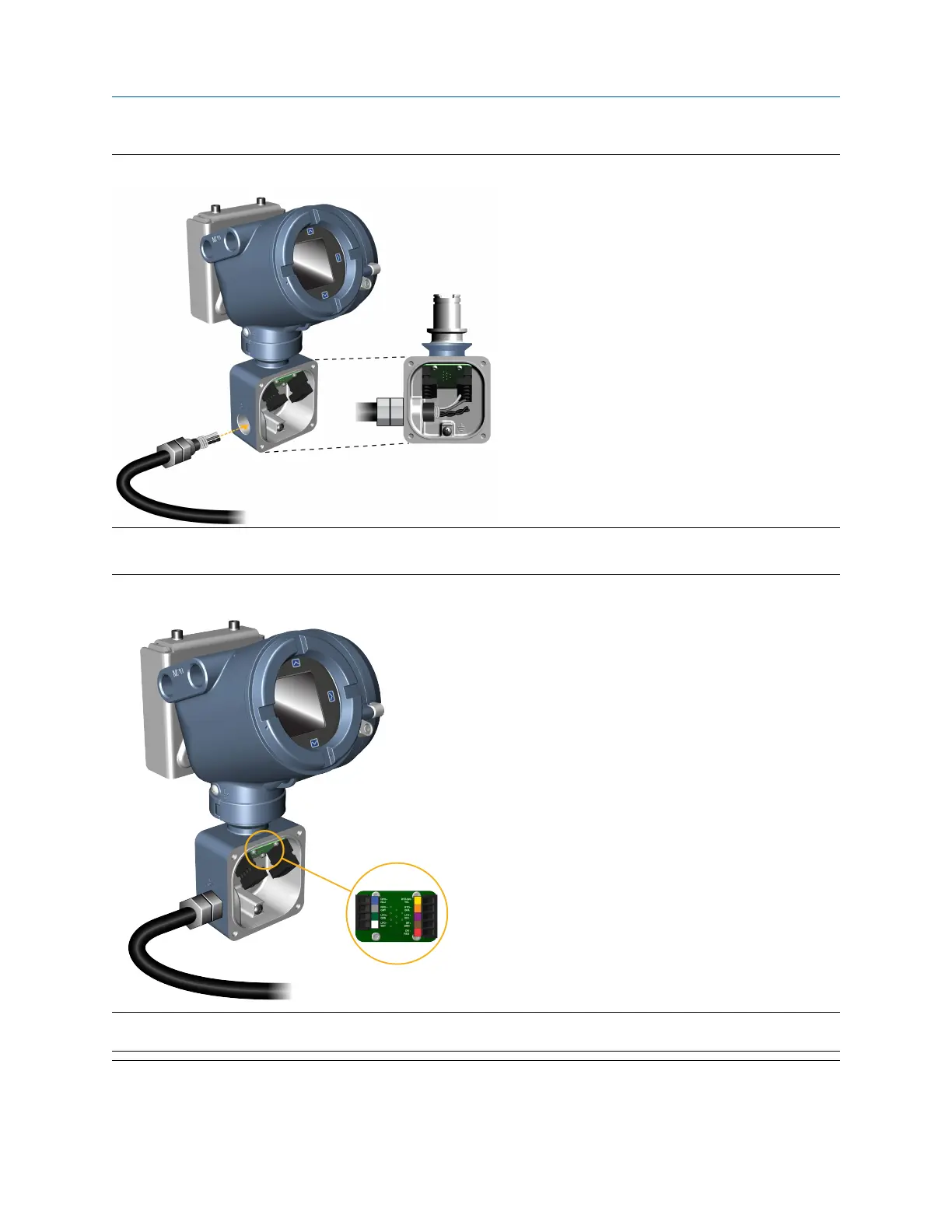

Figure 2-9: Sensor wiring feedthrough
3. Connect the sensor wires to the appropriate terminals.
Figure 2-10: 9-wire transmitter-to-sensor wiring connections
Note
Connect the four drain wires in the 9-wire cable to the ground screw located inside the junction box.
4. Replace the transmitter-to-sensor wiring compartment cover and tighten the screws
to 14-16 in-lbs.
