2.3 Wire the 9-wire remote-mount transmitter to
the sensor
Prerequisites
• Prepare 9-wire cable as described in the sensor documentation.
• Connect the cable to the sensor-mounted junction box as described in the sensor
documentation. You can access all product documentation on the documentation DVD
shipped with the product or at Emerson.com/flowmeasurement.
Procedure
1. Remove the transmitter-to-sensor wiring compartment cover to reveal the terminal
connections.

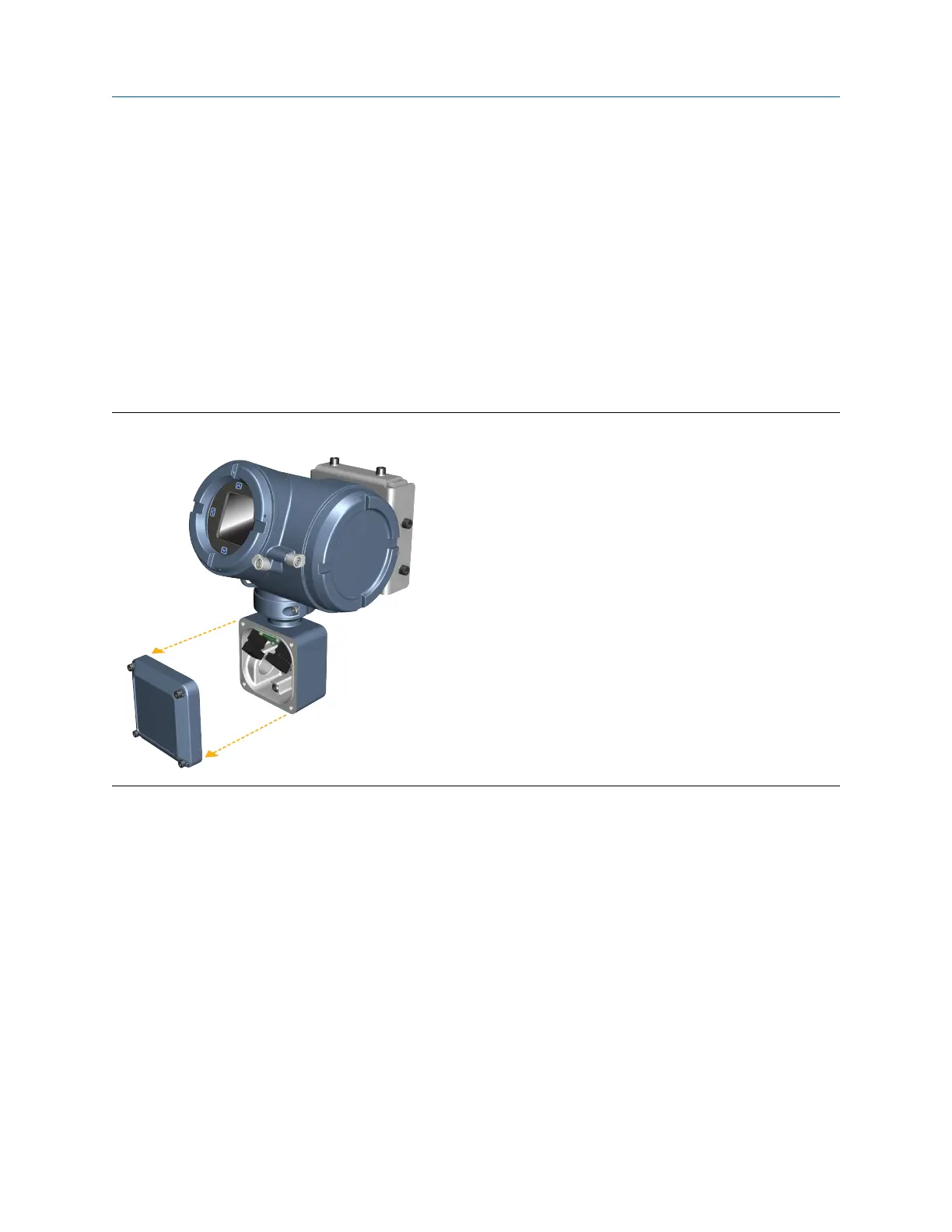

Figure 2-8: Removal of the transmitter-to-sensor wiring compartment cover
2. Feed the sensor wiring cable into the transmitter wiring compartment.
