Important
When using the arrow keys, you must first activate the capacitive button, then
release the same button by removing your finger from the glass to move up, down,
right, left or to make a selection. To enable auto-scroll when navigating up or down,
activate the appropriate button and continue to hold for one second. Release the
button when the desired selection is highlighted.

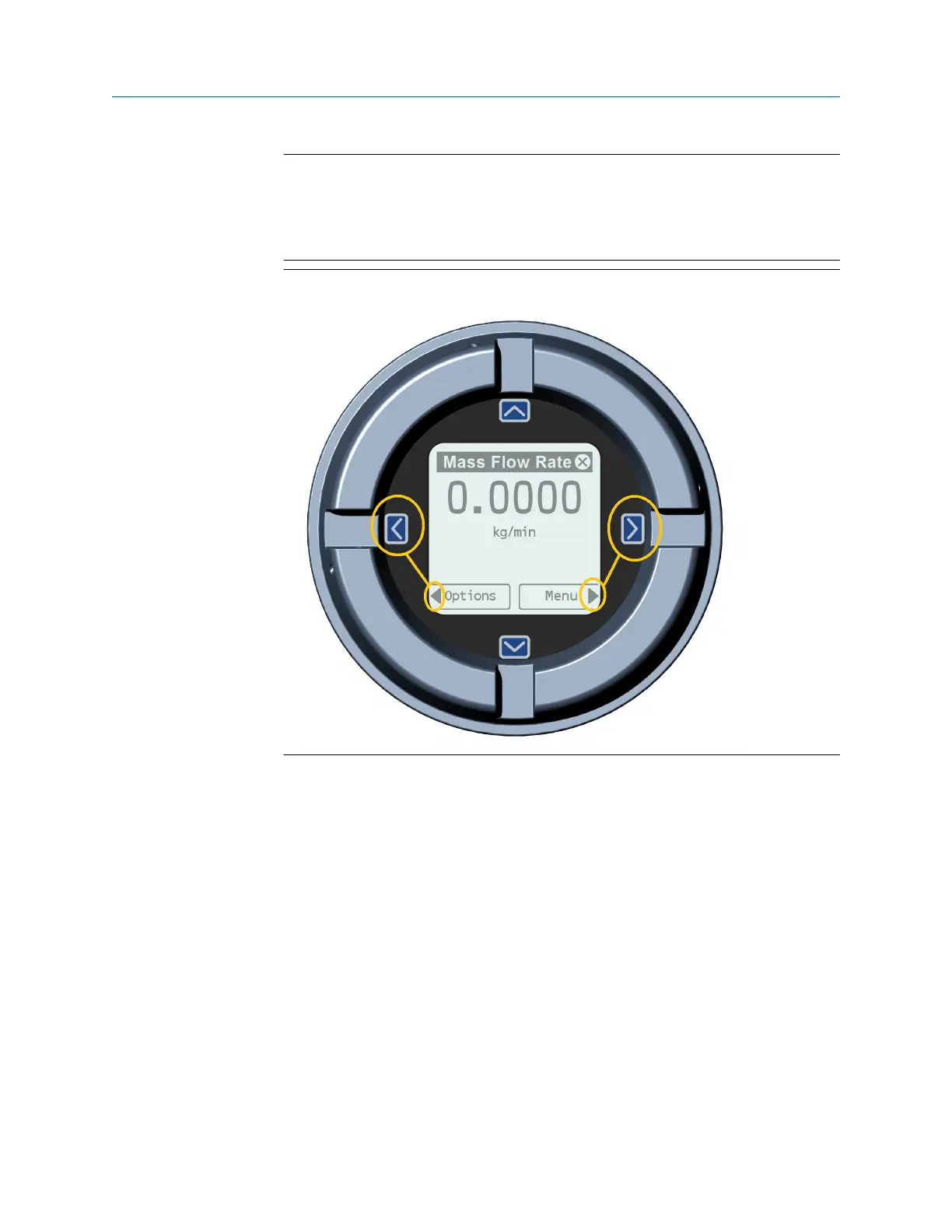

Figure 6-2: Example 2: Active arrow indicators on the transmitter display
6.1 Configure the display backlight
By default, the backlight is set to OFF. The backlight requires an additional 1V in voltage
over no backlight.
Procedure
To configure the backlight, select Menu → Configuration → Display Settings → Backlight.
Using the display controls Installation Manual
March2024 MMI-20058013
38 Micro Motion 4200 2-Wire Transmitter
